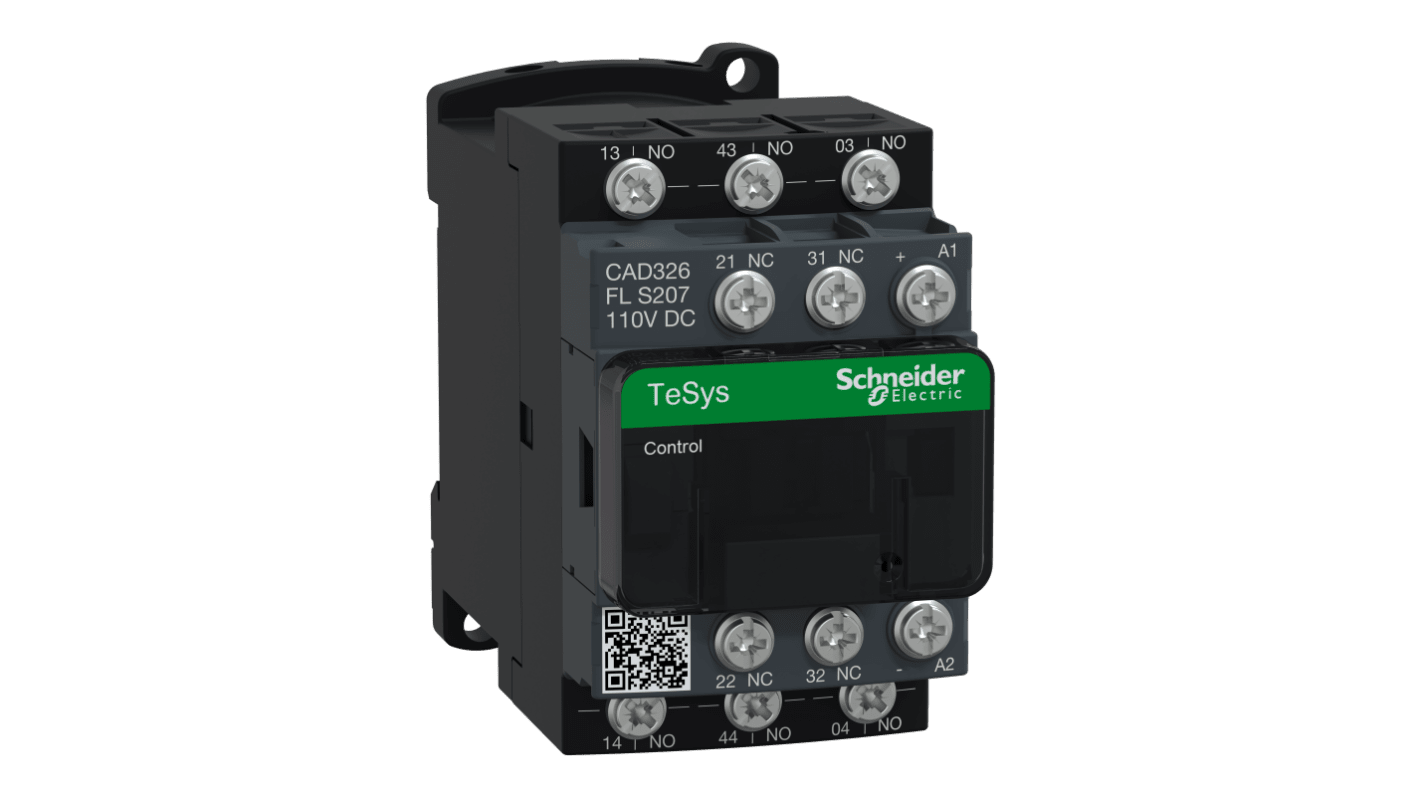

Schneider Electric DIN Rail Power Relay, 110V dc Coil, 10A Switching Current, 3 NO/2 NC

View all Power Relays

Subtotal (1 unit)*

£82.34

(exc. VAT)

£98.81

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£82.34

*price indicative

RS Stock No.:
205-231
Mfr. Part No.:
CAD326FLS207
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Coil Voltage

110V dc

Product Type

Power Relay

Contact Configuration

3 NO/2 NC

Mount Type

DIN Rail

Series

TeSys D

Terminal Type

Lug Ring

Switching Voltage

690V

Switching Current

10A

Length

93mm

Standards/Approvals

CSA C22.2 No 60947-4-1, UKCA, REACh Regulation, CCC, EN/IEC 60947-5-1, EU RoHS Directive, EAC, EN/IEC 60947-4-1, EN 45545 R22 HL3, CB, CSA, CE, China RoHS Regulation, UL, UL 60947-4-1

Width

45mm

Height

77mm

COO (Country of Origin):
FR
The Schneider Electric Control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is fully compliant with railway standards. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. It procures high reliability and durability with 180 cycles/min operating rate and 30 Mcycle mechanical durability under ambient temperature -40-70°C. The dimension is 77mm x 45mm x 93mm (H x W x D), clipping on rail or fixing by screw on plate.

IP20 front face conforming to IEC 60529

EN/IEC 60947 5 1

UL 60947 4 1
