STMicroelectronics STEVAL-ILL015V3, Evaluation Board for LED2472G

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
846-3462
Mfr. Part No.:
STEVAL-ILL015V3
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Kit Classification

Evaluation Board

Featured Device

LED2472G

Priced to Clear

Yes

High Brightness LED2472G LED Driver Evaluation Board with Diagnostic

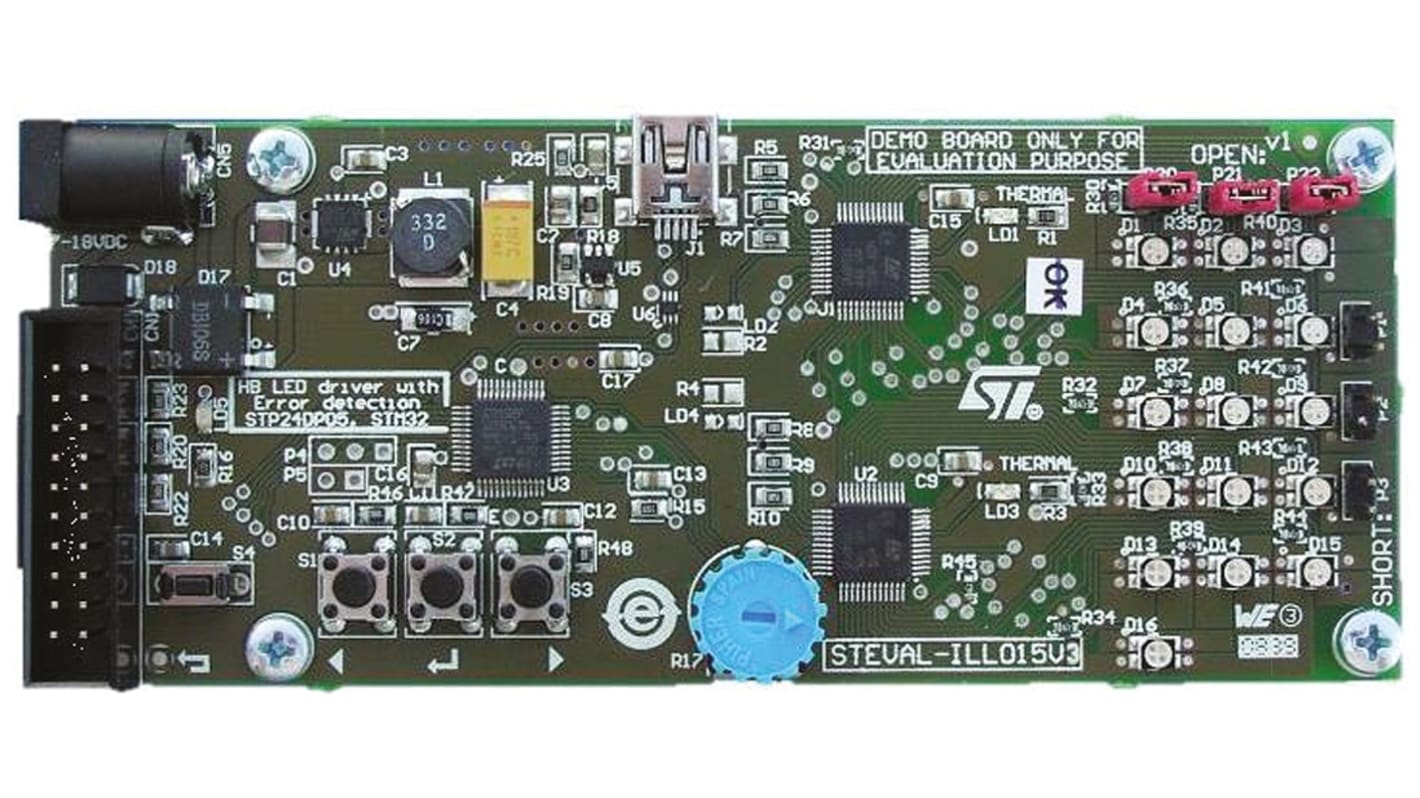

The STEVAL-ILL015V3 evaluation board has two LED2472G devices in TQFP48 package connected to 3 x 16 RGB high-brightness LEDs. The LED2472G device is a 24-bit constant-current LED sink driver with output error detection, suitable for applications such as large-area displays and full-color board panels.

STM32 microcontroller
Cost-effective internal high-side oscillator
JTAG interface for microcontroller firmware changes/updates
Mini USB connector for connection with a PC GUI
Test points on the board
Buttons and knob to control the board
Error and over-temperature flag for each LED driver
3 jumpers to simulate the disconnection of 3 LEDs
3 jumpers to simulate the shorting of 3 LEDs
Highly-efficient ST1S010 DC-DC switching power supply
Input: 7.5V to 18V, at 0.7A


LED Drivers, Lighting ICs, STMicroelectronics
