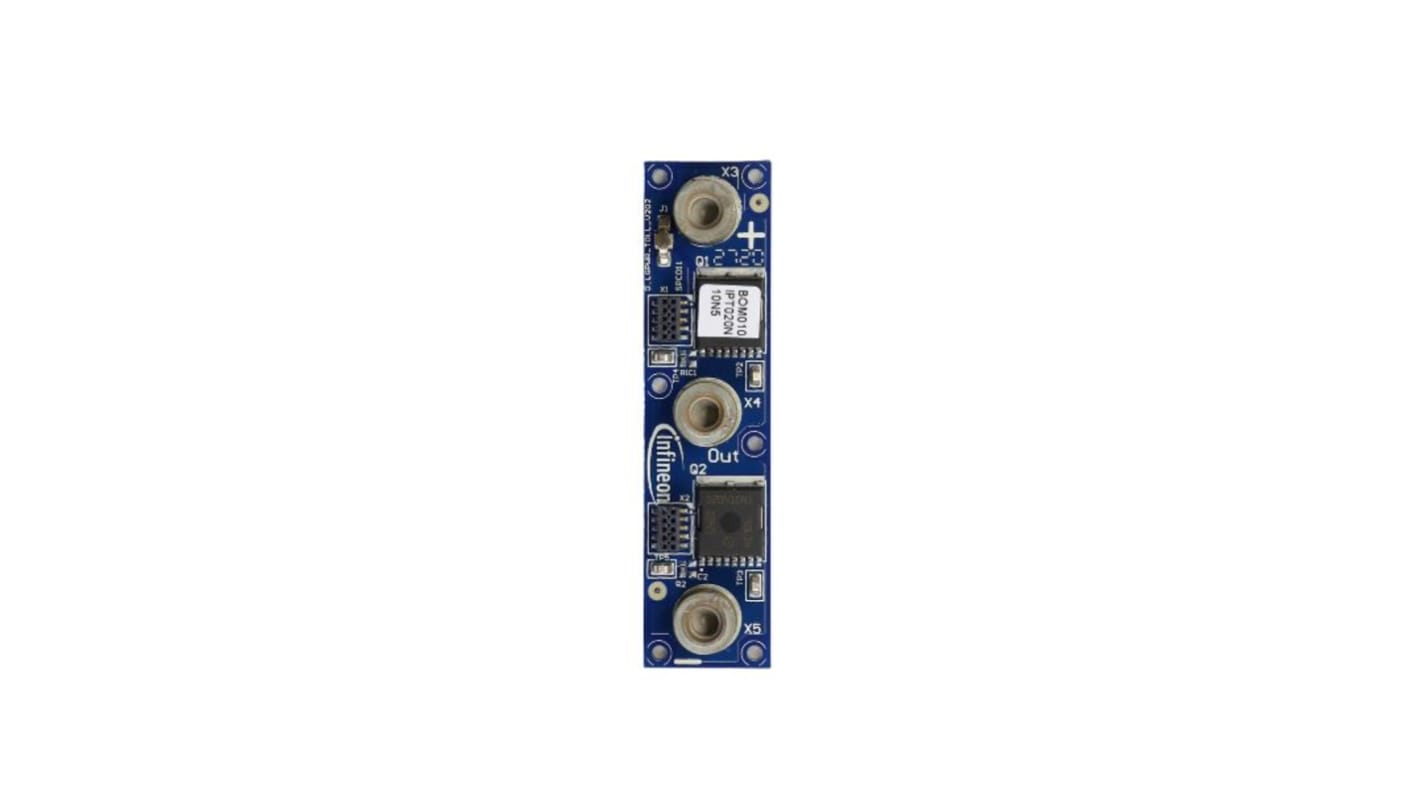

This kit power board module utilizing the OptiMOS™ 5 power MOSFET 100 V in TOLL package represents the power building block of the LVD scalable power demo board platform. It serves as a single half-bridge with power and gate drive interconnections, enabling easy buildup of any half-bridge-based power topology.

Variations of the power board employing Infineon’s power MOSFET family OptiMOS™ in the D2PAK, D2PAK-7 and the TO-Leadless packages demonstrate power MOSFET performance in terms of parallelization and thermal behavior.

•KIT_LGPWR_BOM003 (80 V TO-Leadless)

•KIT_LGPWR_BOM004 (60 V TO-Leadless)

•KIT_LGPWR_BOM005 (100 V D2PAK 7-pin)

•KIT_LGPWR_BOM006 (150 V D2PAK 7-pin)

•KIT_LGPWR_BOM007 (200 V D2PAK)

•KIT_LGPWR_BOM008 (250 V D2PAK)

•KIT_LGPWR_BOM009 (200 V D2PAK)

•KIT_LGPWR_BOM013 (100 V TOLG)

•KIT_LGPWR_BOM015 (200 V D2PAK)

•IMS PCB for increased cooling

•SMD power terminals with M5 thread

•Onboard test point terminals

•OptiMOS™ 5 power MOSFET 100 V (IPT020N10N5)

•Prototyping forklifts and LEVs(low speed cars, e-scooters, 3-wheelers, golf cars)

•BPA BLDC motor drives

•Cordless power tools
