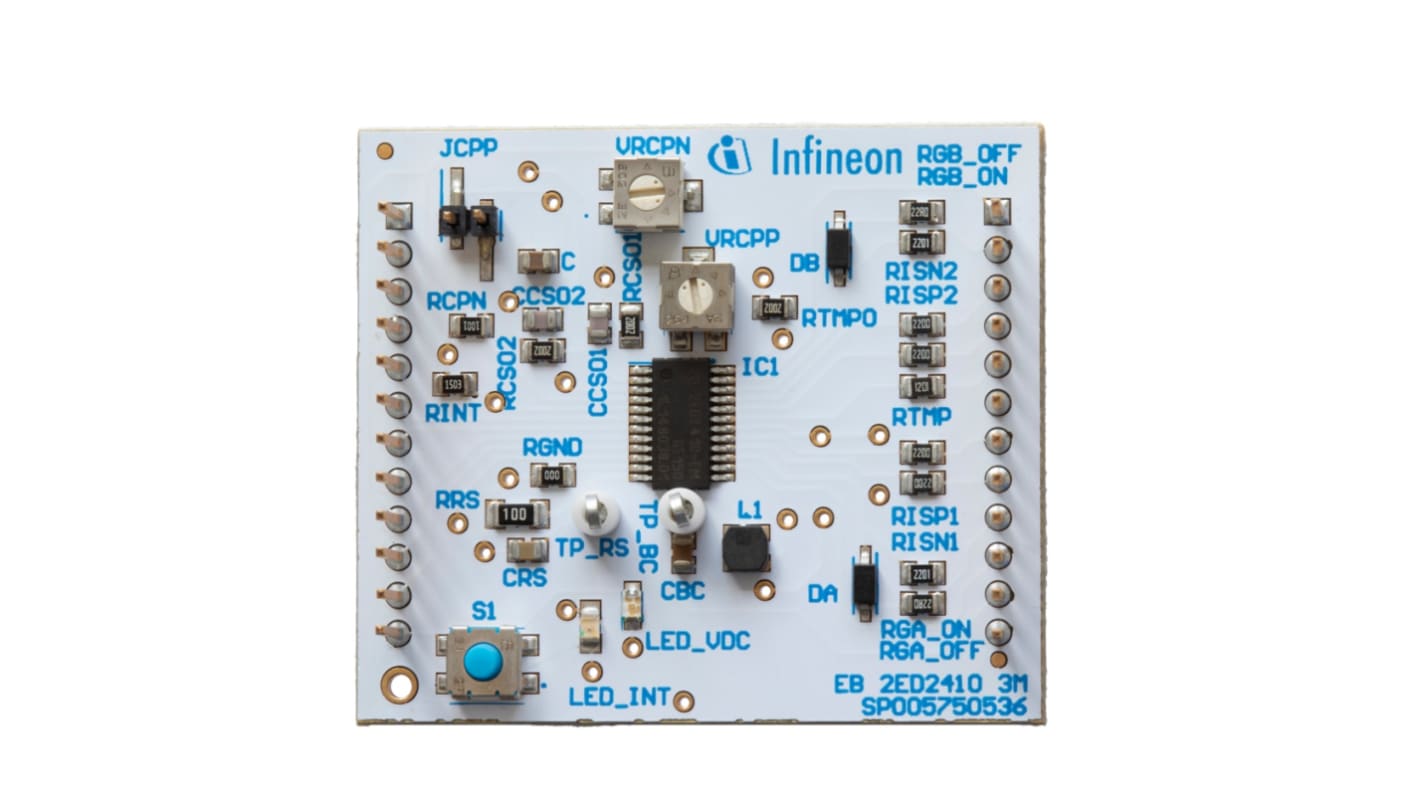

This evaluation motherboard contains the ISO26262-ready 2ED2410-EM MOSFET gate driver with adjustable I-t wire protection for automotive power distribution with adjustable I-t wire protection. This board is suitable for 12 V and 24 V board nets and contains the OPTIREGTM TLE4296GV50 low drop voltage regulator for providing the 5 V digital supply voltage on this board. With the help of a push button the gate driver can be reset, e.g. from a “Safestate” mode back to “Idle” mode or “On” mode. This board can be used with different daughterboards, which have different OptiMOSTM5 power MOSFET arrangements with and without a dedicated pre-charge path intended for one load channel:

•EB 2ED2410 3D 1BCS:60 V OptiMOSTM5 power MOSFET (1.1 mOhm), back2back - common source, 0.5 mOhm shunt

•EB 2ED2410 3D 1BCD:60 V OptiMOSTM5 power MOSFET (1.1 mOhm), back2back - common drain, 0.5 mOhm shunt

•EB 2ED2410 3D 1BCSP:60 V OptiMOSTM5 power MOSFET (1.1 mOhm), back2back - common source, 0.5 mOhm shunt, with pre-charging

•EB 2ED2410 3D 1BCDP:60 V OptiMOSTM5 power MOSFET (1.1 mOhm), back2back - common drain, 0.5 mOhm shunt, with pre-charging

•Suitable for 12 and 24 V board nets

•Combination with different MOSFET plus shunt daughterboards

•Support of daughterboards with dedicated pre-charge path

•Overcurrent protection with adjustable thresholds

•Adjustable I-t wire protection

•Indicator LED’s

•RESET possibility
