Infineon EVAL-M1-IM241

View this category

Subtotal (1 unit)*

£81.58

(exc. VAT)

£97.90

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 999,999,999 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£81.58

*price indicative

RS Stock No.:
260-1003
Mfr. Part No.:
EVALM1IM241TOBO1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Kit Classification

Evaluation Board

Kit Name

EVAL-M1-IM241

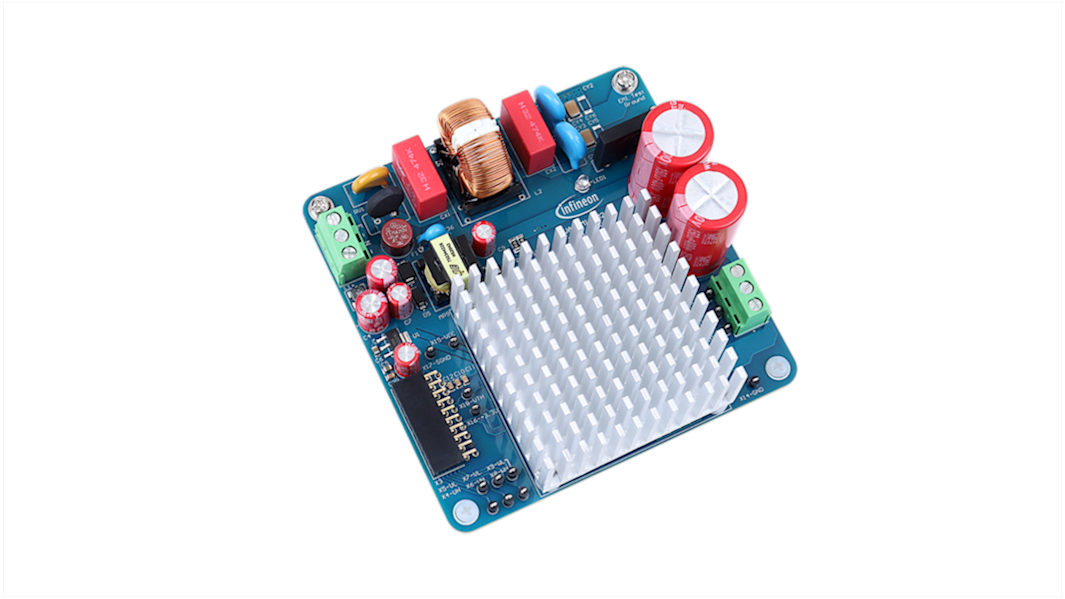

Evaluation board for CIPOS™ Micro IPM, features 600 V IM241-L6T2B IPM


The evaluation board EVAL-M1-IM241 was developed to support customers during their first steps of applications with the IM241 series CIPOS™ Micro IPM. In combination with control-boards equipped with the M1 20pin interface connector, like EVAL-M1-101T, the kit offers a complete system to demonstrate our CIPOS™ Micro IPM technology in motor drives.
The IM241-L6T2B CIPOS™ Micro IPM has 600 V of voltage and 6 A of current rating. It is optimized for small home appliances like pumps, fans and other low power motor drive applications.

Summary of Features


  • Input voltage 110∼230 VAC

  • Maximum 2.5 A input current at 110 VAC

  • Maximum 250 W motor power output at 220 VAC

  • On board EMI filter and pass EMI standards EN55032

  • Auxiliary power supply with 15 V, 3.3 V

  • Overcurrent hardware protection & over temperature protection

  • Sensing of DC-link voltage

  • Thermistor output

  • PCB is 100 mm x 100 mm, two layers with 2 oz. copper

  • RoHS compliant

    • Benefits


  • Evaluate IM241-L6T2B

  • Get your motor running within an hour with EVAL-M1-101T

  • Start to learn more about motor control with Infineon parts

    • Applications


  • Hood fan

  • Motor control and drives

  • Refrigeration and freezing

  • Residential air conditioning: Smart and efficient cooling

  • Washing and drying

    • Note

    Classification 'Motor Driver Board'

    Kit Name ’EVAL-M1-IM241’

    Processor Family Name ’Motor Control Ics’

    Technology ’Motor Driver’
