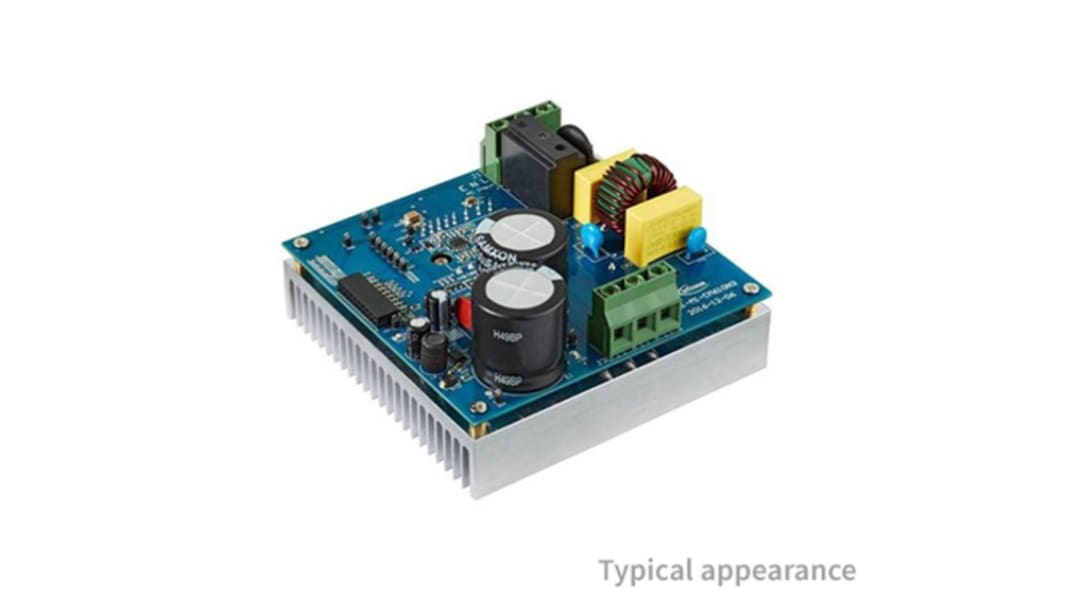

Infineon Eval-M1-CM610N3 3-Phase Motor Drive for CIPOS Mini IKCM10H60GA for EVAL-M1-101T
- RS Stock No.:
- 248-9733
- Mfr. Part No.:
- EVALM1CM610N3TOBO2
- Brand:
- Infineon
Stock information currently inaccessible
- RS Stock No.:
- 248-9733
- Mfr. Part No.:
- EVALM1CM610N3TOBO2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Evaluation Board | |
| Power Management Function | 3-Phase Motor Drive | |
| For Use With | EVAL-M1-101T | |
| Kit Classification | Evaluation Board | |
| Featured Device | CIPOS Mini IKCM10H60GA | |
| Kit Name | Eval-M1-CM610N3 | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Evaluation Board | ||
Power Management Function 3-Phase Motor Drive | ||
For Use With EVAL-M1-101T | ||
Kit Classification Evaluation Board | ||
Featured Device CIPOS Mini IKCM10H60GA | ||
Kit Name Eval-M1-CM610N3 | ||
Standards/Approvals RoHS | ||
The Infineon evaluation board includes a 3-phase CIPOS™ Mini Intelligent Power Module (IPM) for motor drive application in combination with control-boards equipped with the M1 20pin interface connector, like EVAL-M1-1302 or EVAL-M1-099M, it features and demonstrates Infineon’s CIPOS™ Mini IPM technology for motor drive. The evaluation board Eval-M1-CM610N3 was developed to support customers during their first steps designing applications with CIPOS™ Mini IPM.
Power stage to drive 3-phase motor
600 V blocking voltage
10 A installed chip current
750 W output power with passive cooling
Test pads with hooks to attach standard oscilloscope probes
Standard MADK M1 interface connector
