Infineon EVAL-M1-05F310R 3 Phase Motor Drive for IRSM005-310MH CIPOS™ Nano power modules.

View this category
Bulk discount available

Subtotal (1 unit)*

£102.93

(exc. VAT)

£123.52

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 2 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£102.93
2 - 4£100.08
5 +£97.58

*price indicative

RS Stock No.:
248-9729
Mfr. Part No.:
EVALM105F310RTOBO1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Power Management Function

3 Phase Motor Drive

For Use With

IRSM005-310MH CIPOS™ Nano power modules.

Kit Classification

Evaluation Board

Kit Name

EVAL-M1-05F310R

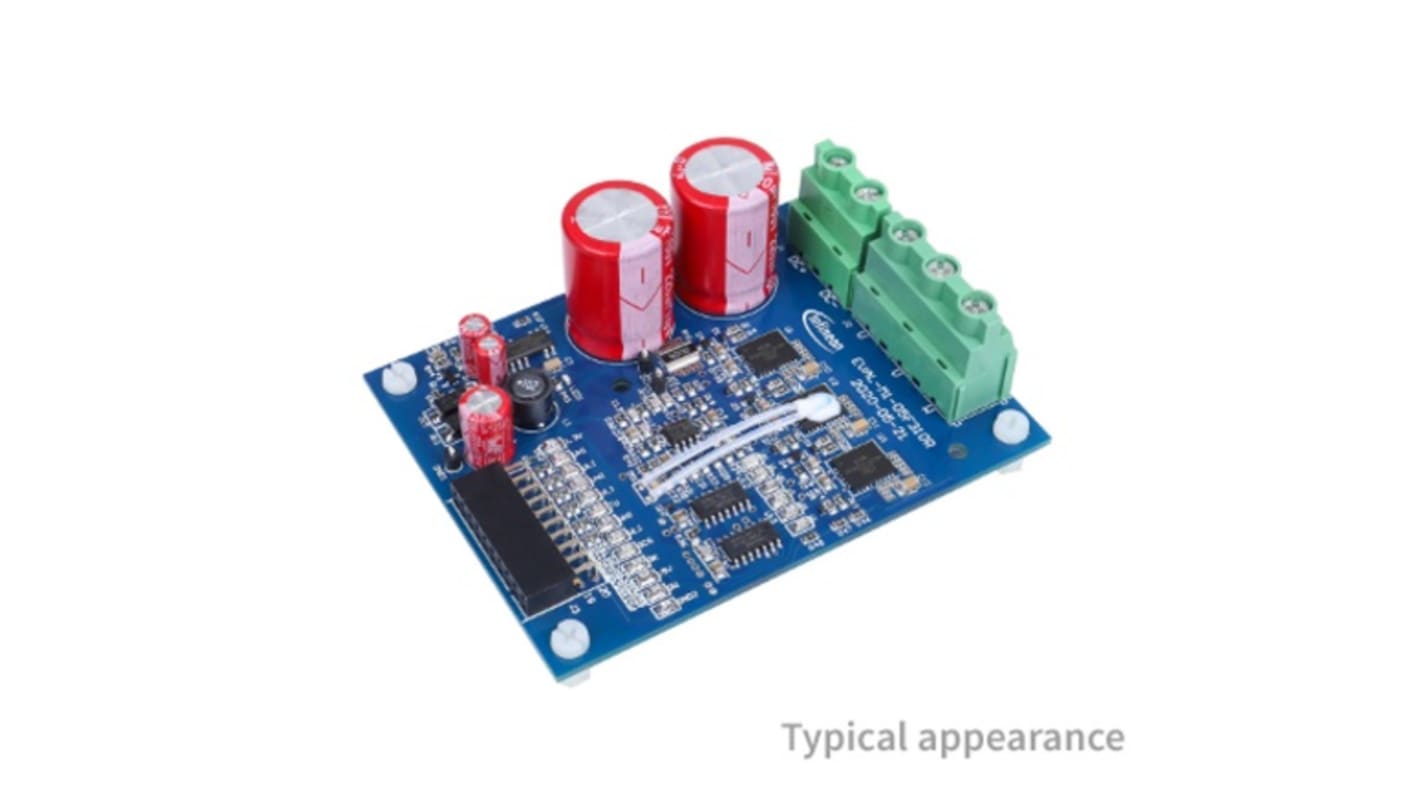

The Infineon evaluation board was developed to support customers during their first steps designing applications with IRSM005-310MH CIPOS™ nano power modules. As a part of iMOTION™ modular application design kit. The EVAL-M1-05F310R is a power evaluation board from the modular application design kit including M1 connector, which is the iMOTION™ standard interface, and three CIPOS™ Nano 100 V half-bridge modules for motor drive applications. In combination with either EVAL-M1-101T or other control boards with M1 connector compatible, it features and demonstrates Infineon’s CIPOS™ Nano IPM technology and advanced Motion Control Engine (MCE 2.0) technology for motors drive over the full speed range.

Ready to use DC power stage to drive 3-phase motor
3 x CIPOS™ Nano IPM on board
Nominal input voltage 30 ∼ 72 Vdc
Maximum 320 W output power without heatsink
Maximum 6.5 A output current per phase
Over current protection
Over temperature protection
Test pads with hooks to attach standard oscilloscope probes
Standard MADK M1 20pin interface connector
