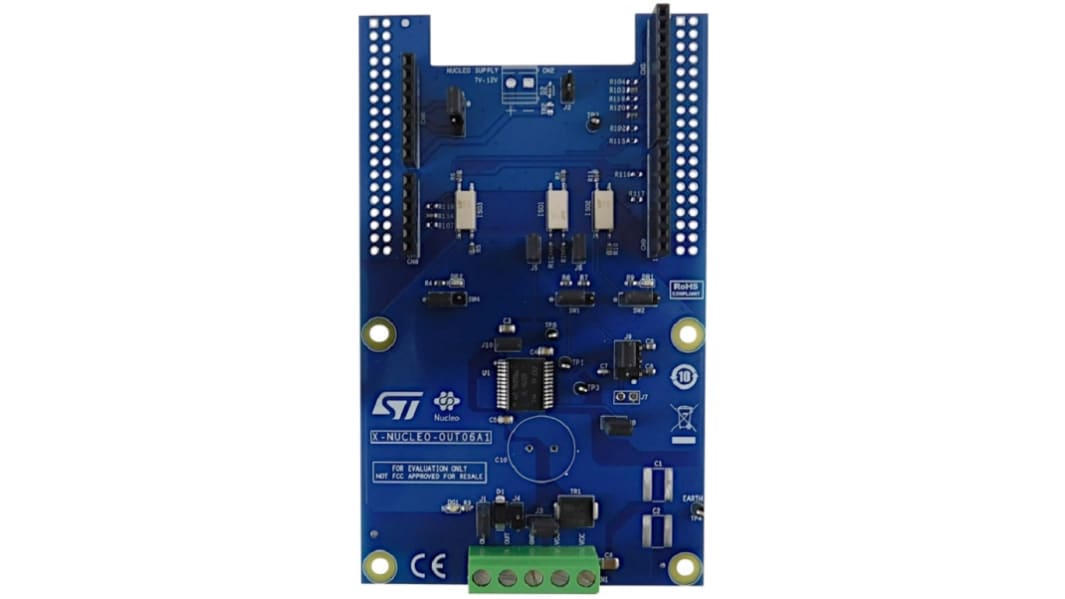

STMicroelectronics Industrial digital output expansion board based on IPS1025H-32 for STM32 Nucleo Solid State Relay

View this category

Subtotal (1 unit)*

£35.37

(exc. VAT)

£42.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£35.37

*price indicative

RS Stock No.:
250-0216
Mfr. Part No.:
X-NUCLEO-OUT06A1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Power Management Function

Solid State Relay

For Use With

IPS1025H-32

Kit Classification

Expansion Board

Kit Name

Industrial digital output expansion board based on IPS1025H-32 for STM32 Nucleo

The STMicroelectronics industrial digital output expansion board for STM32 Nucleo , that provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS1025H 32 single high side smart power solid state relay, in a digital output module connected to 5.7 A industrial loads. It interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins and Arduino UNO R3 connectors. This expansion board can be connected to either a NUCLEO F401RE or NUCLEOG431RB development board. It is also possible to evaluate a system composed by up to four stacked X NUCLEOOUT06A1 expansion boards.

Application board operating range is 8 to 33 V
Extended voltage operating range J3 open up to 60 V
Green LED for output on or off status
Red LEDs for overload and overheating diagnostics
5 kV galvanic isolation
Supply rail reverse polarity protection
Equipped with Arduino UNO R3 connectors
