Infineon PROF_2 BTS7008-1EPP DB High Side Current Sensing for BTS7008-1EPP for PROFET +2 12V motherboard
- RS Stock No.:
- 248-9751
- Mfr. Part No.:
- PROF2BTS70081EPPDBTOBO1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£38.63
(exc. VAT)
£46.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £38.63 |
| 5 - 9 | £37.64 |
| 10 + | £36.70 |
*price indicative
- RS Stock No.:
- 248-9751
- Mfr. Part No.:
- PROF2BTS70081EPPDBTOBO1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Evaluation Board | |
| Power Management Function | High Side Current Sensing | |
| For Use With | PROFET +2 12V motherboard | |
| Kit Classification | Daughter Board | |
| Featured Device | BTS7008-1EPP | |
| Kit Name | PROF_2 BTS7008-1EPP DB | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Evaluation Board | ||
Power Management Function High Side Current Sensing | ||
For Use With PROFET +2 12V motherboard | ||
Kit Classification Daughter Board | ||
Featured Device BTS7008-1EPP | ||
Kit Name PROF_2 BTS7008-1EPP DB | ||
Standards/Approvals RoHS | ||

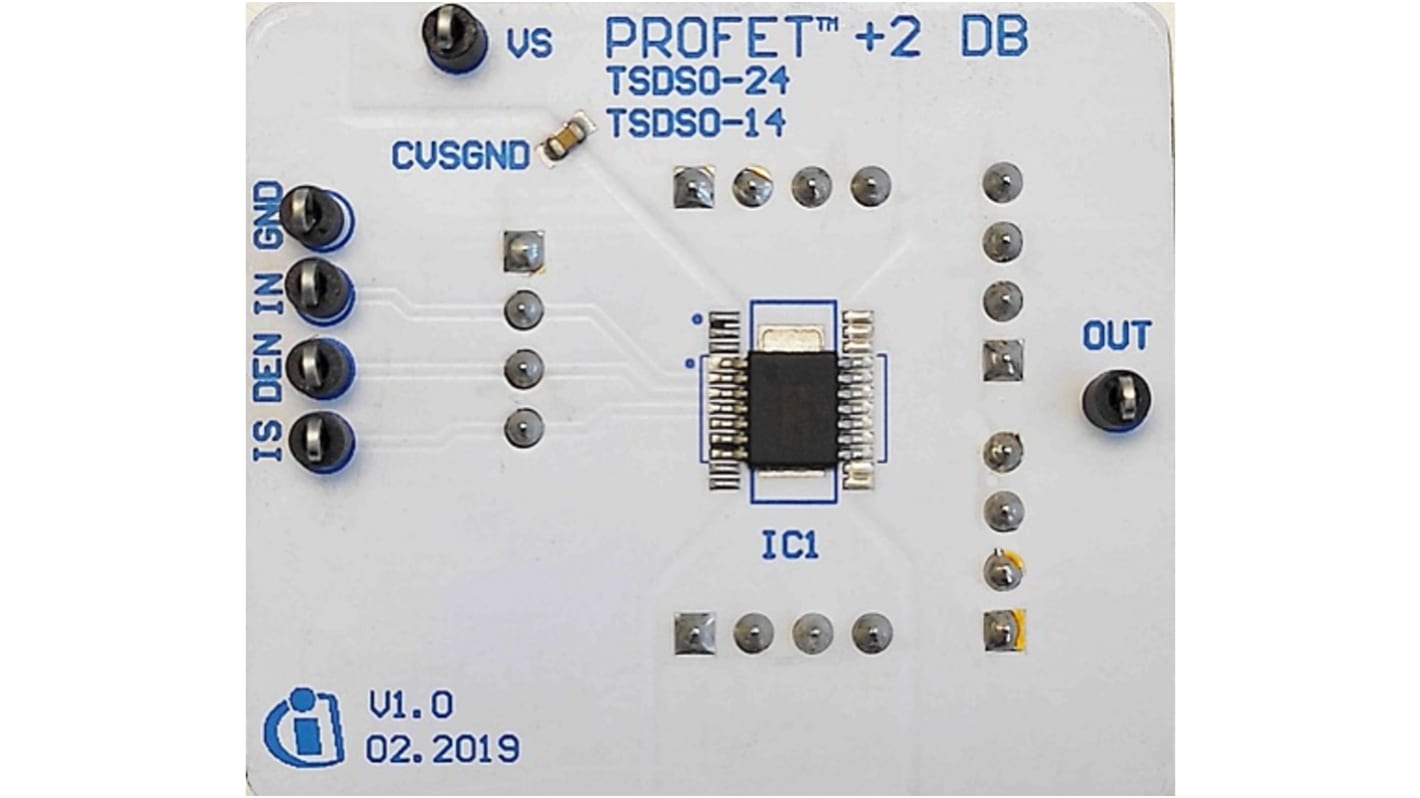

The Infineon daughterboard comes with 1 Smart High-Side switch of BTS7008-1EPP and is compatible with the PROFET™+2 12V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daughterboard is capable to drive typical automotive loads.
High-Side Switch with Diagnosis and Embedded Protection
Operating voltage range 3.1 -28 V with 3.3 V and 5 V compatible logic input
Protection current tripping, over-temperature, overvoltage, load dump, reverse polarity, short-circuit
Optimized for design flexibility across the family by pin to pin and external components compatibility
