Infineon SPOC-2 DB BTS71033-6ESA Power Management for SPOC 2 motherboard
- RS Stock No.:
- 234-3000
- Mfr. Part No.:
- SPOC2DBBTS710336ESATOBO1
- Brand:
- Infineon
Subtotal (1 unit)*
£48.36
(exc. VAT)
£58.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £48.36 |
*price indicative
- RS Stock No.:
- 234-3000
- Mfr. Part No.:
- SPOC2DBBTS710336ESATOBO1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Management Function | Power Management | |
For Use With | SPOC 2 motherboard | |
Kit Classification | Daughter Board | |
Kit Name | SPOC-2 DB BTS71033-6ESA | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Management Function Power Management | ||
For Use With SPOC 2 motherboard | ||
Kit Classification Daughter Board | ||
Kit Name SPOC-2 DB BTS71033-6ESA | ||
683050

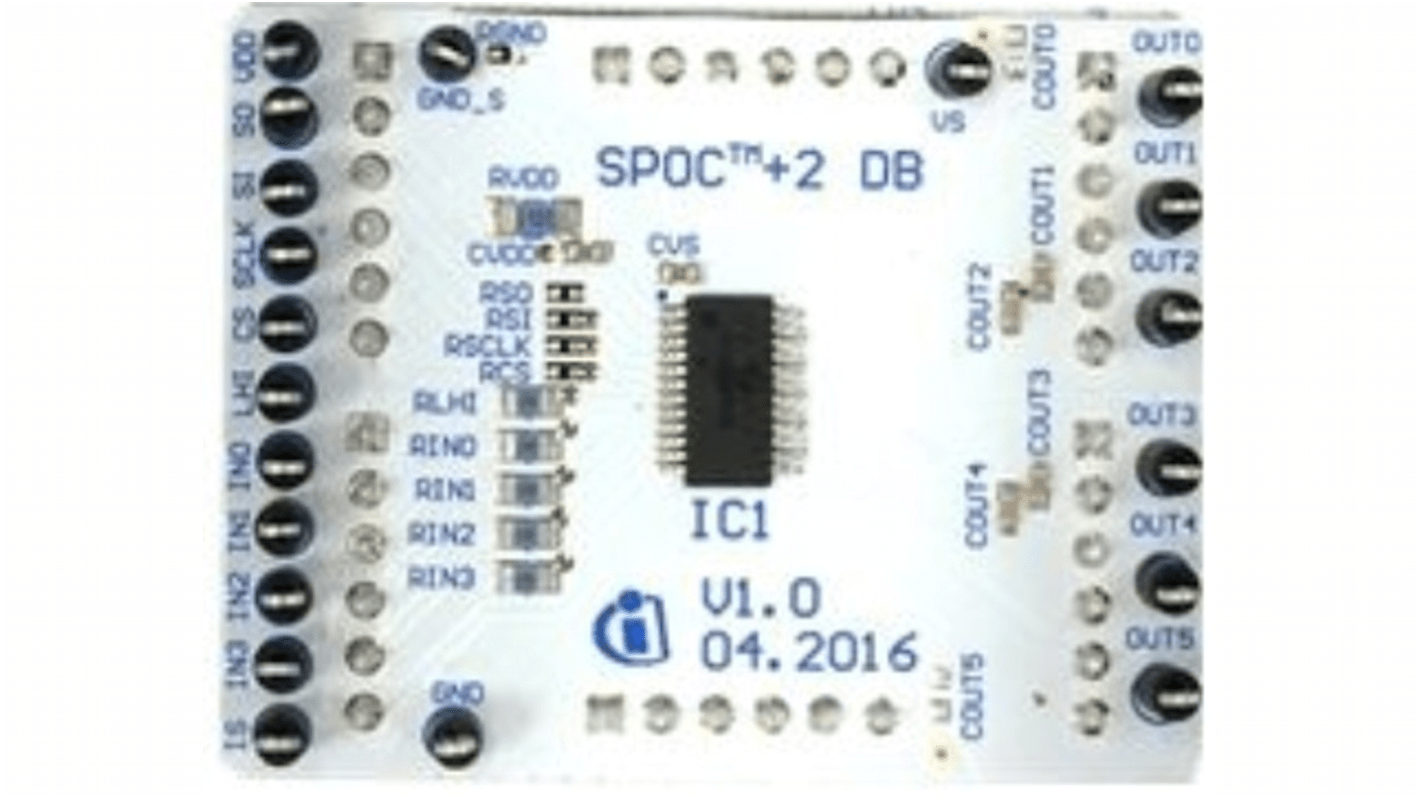

The Infineon's BTS71033-6ESA Daughterboard is a small PCB with soldered SPOC2 device on it. It has to be used in combination with the SPOC2 motherboard. The driving capability suitable for 7 A and 4 A loads and high inrush current loads such as 65W bulb, HID or LED equivalent and 42W bulb or LED equivalent.
Applicable in Automotive and Industrial areas
Green Product (RoHS compliant)
Qualified in accordance with AEC Q100 grade 1
Overcurrent protection (tripping) with Programmable Restart Control and Current Threshold
Under voltage shutdown
Green Product (RoHS compliant)
Qualified in accordance with AEC Q100 grade 1
Overcurrent protection (tripping) with Programmable Restart Control and Current Threshold
Under voltage shutdown
