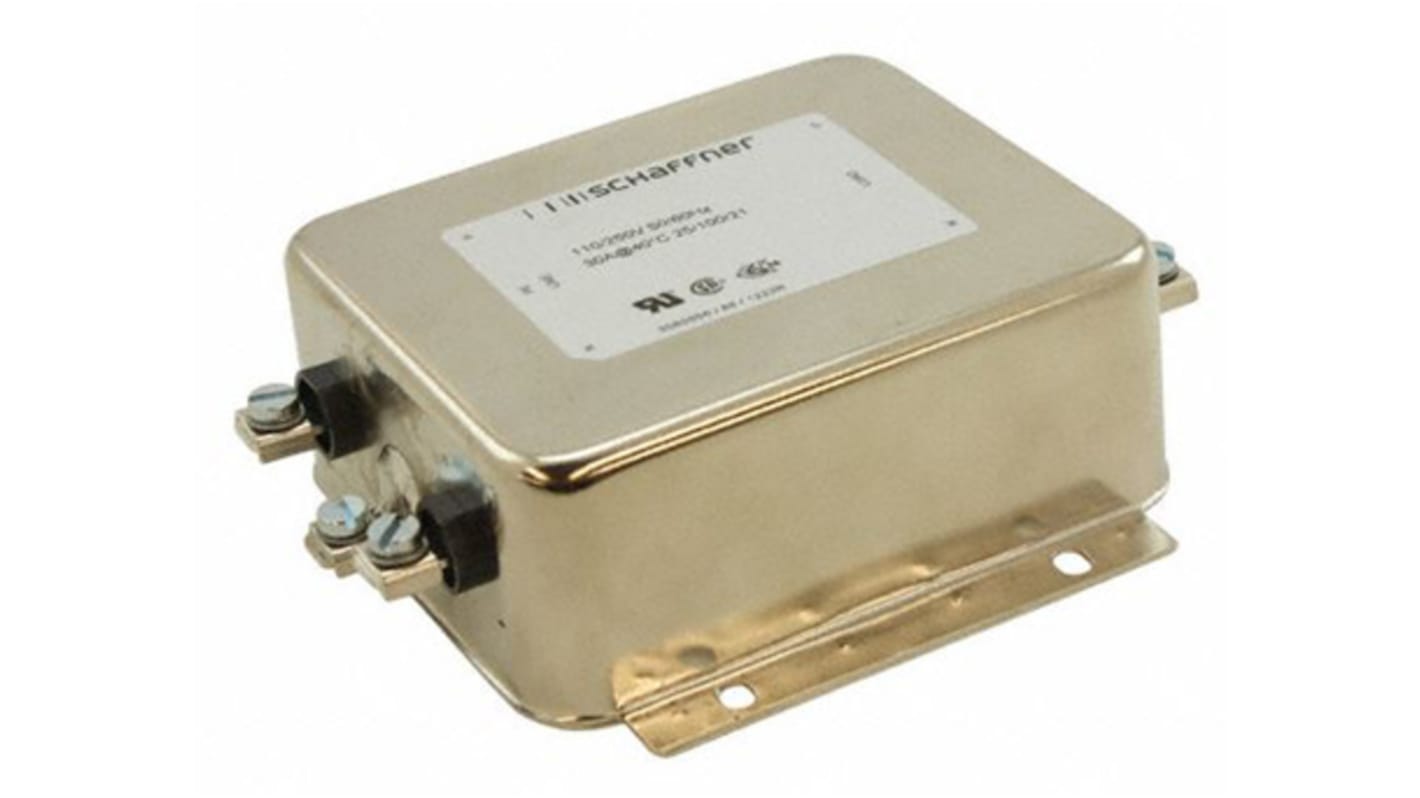

Schaffner, FN610 3A 250 V ac DC to 400Hz, Chassis Mount EMI Filter, Quick Connect, Single Phase
- RS Stock No.:
- 883-8351
- Mfr. Part No.:
- FN610R-3-06
- Brand:
- Schaffner
Discontinued
- RS Stock No.:
- 883-8351
- Mfr. Part No.:
- FN610R-3-06
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 3A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect | |
| Number of Phases | 1 | |
| Number of Stages | Single Stage | |
| Series | FN610 | |
| Operating Frequency | DC to 400Hz | |
| Length | 64mm | |
| Depth | 35mm | |
| Height | 29.3mm | |
| Dimensions | 64 x 34 x 29.3 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Select all | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 3A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Quick Connect | ||
Number of Phases 1 | ||
Number of Stages Single Stage | ||
Series FN610 | ||
Operating Frequency DC to 400Hz | ||
Length 64mm | ||
Depth 35mm | ||
Height 29.3mm | ||
Dimensions 64 x 34 x 29.3 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- CN
FN610 Series
The FN610 Series of Shaffner single phase EMI Filters. All filters within this range, including the FN610, 610A, 610B and 610R provide a good symmetrical and asymmetrical attenuation performance, based on chokes with high saturation resistance. All models are highly reliable and excellent quality.
Rated currents from 1A to 30A
Good overall differential and common-mode attenuation
Designed for easy and fast chassis mounting
Good overall differential and common-mode attenuation
Designed for easy and fast chassis mounting
