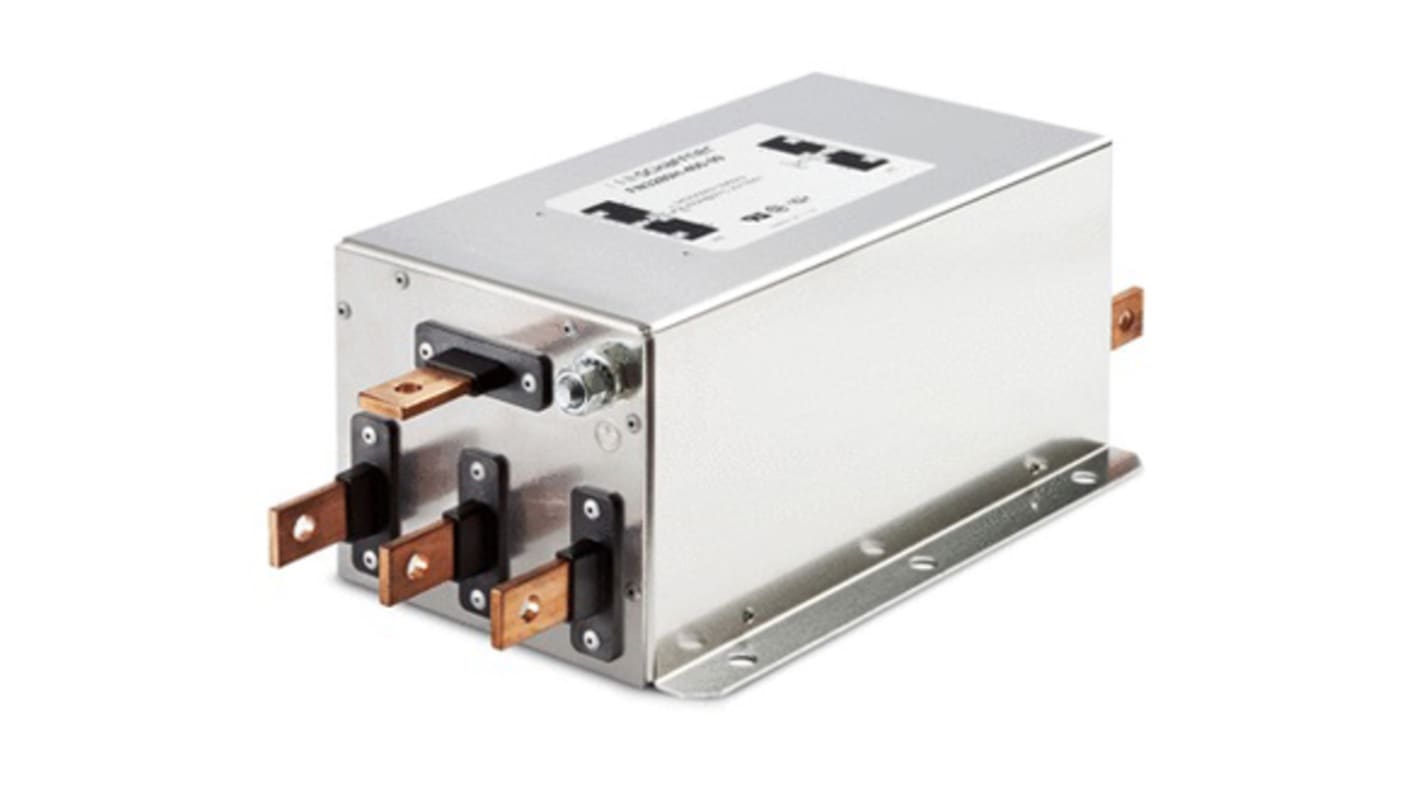

Schaffner, FN 3280 300A 3 x 520/300 V ac 0 → 60Hz, Chassis Mount EMI Filter, Tab 3 Phase
- RS Stock No.:
- 882-6538
- Mfr. Part No.:
- FN3280H-300-99
- Brand:
- Schaffner
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 882-6538
- Mfr. Part No.:
- FN3280H-300-99
- Brand:
- Schaffner
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 300A | |
| Maximum Voltage Rating | 3 x 520/300 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Tab | |
| Number of Phases | 3 | |
| Series | FN 3280 | |
| Operating Frequency | 0 → 60Hz | |
| Length | 325mm | |
| Depth | 220mm | |
| Height | 150mm | |
| Dimensions | 325 x 220 x 150mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 1 mA | |
| Maximum Operating Temperature | +100°C | |
| Power Loss | 20.3W | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 300A | ||
Maximum Voltage Rating 3 x 520/300 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Tab | ||
Number of Phases 3 | ||
Series FN 3280 | ||
Operating Frequency 0 → 60Hz | ||
Length 325mm | ||
Depth 220mm | ||
Height 150mm | ||
Dimensions 325 x 220 x 150mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 1 mA | ||
Maximum Operating Temperature +100°C | ||
Power Loss 20.3W | ||
