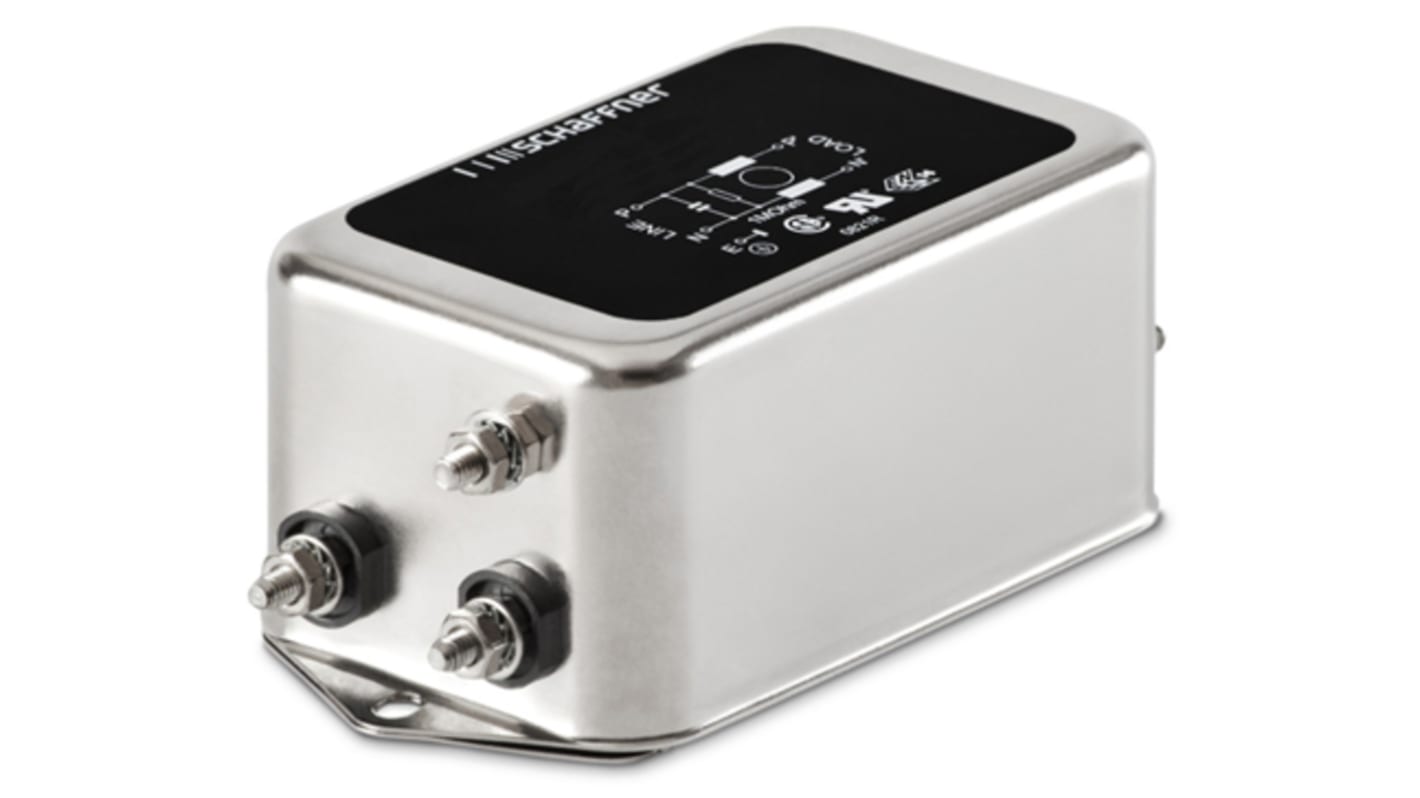

Schaffner, FN2010B 16A 250 V ac 0 → 400Hz, Chassis Mount EMI Filter, Tab, Single Phase
- RS Stock No.:
- 881-7281
- Mfr. Part No.:
- FN2010B-16-06
- Brand:
- Schaffner
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 881-7281
- Mfr. Part No.:
- FN2010B-16-06
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 16A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Tab | |
| Number of Phases | 1 | |
| Number of Stages | Single Stage | |
| Series | FN2010B | |
| Operating Frequency | 0 → 400Hz | |
| Length | 71mm | |
| Depth | 46.6mm | |
| Capacitance | 4.7 nF, 100nF | |
| Height | 29.3mm | |
| Inductance | 700 μH | |
| Dimensions | 71 x 46.6 x 29.3mm | |
| Leakage Current | 0.002 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 1MΩ | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 16A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Tab | ||
Number of Phases 1 | ||
Number of Stages Single Stage | ||
Series FN2010B | ||
Operating Frequency 0 → 400Hz | ||
Length 71mm | ||
Depth 46.6mm | ||
Capacitance 4.7 nF, 100nF | ||
Height 29.3mm | ||
Inductance 700 μH | ||
Dimensions 71 x 46.6 x 29.3mm | ||
Leakage Current 0.002 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Resistance 1MΩ | ||
- COO (Country of Origin):
- CN
FN2010 Series
Low cost chassis mount filters in an aluminium case
General purpose filtering applications
Connection by Faston type terminals
General purpose filtering applications
Connection by Faston type terminals
Approvals
UL recognised component, CSA certified, VDE
