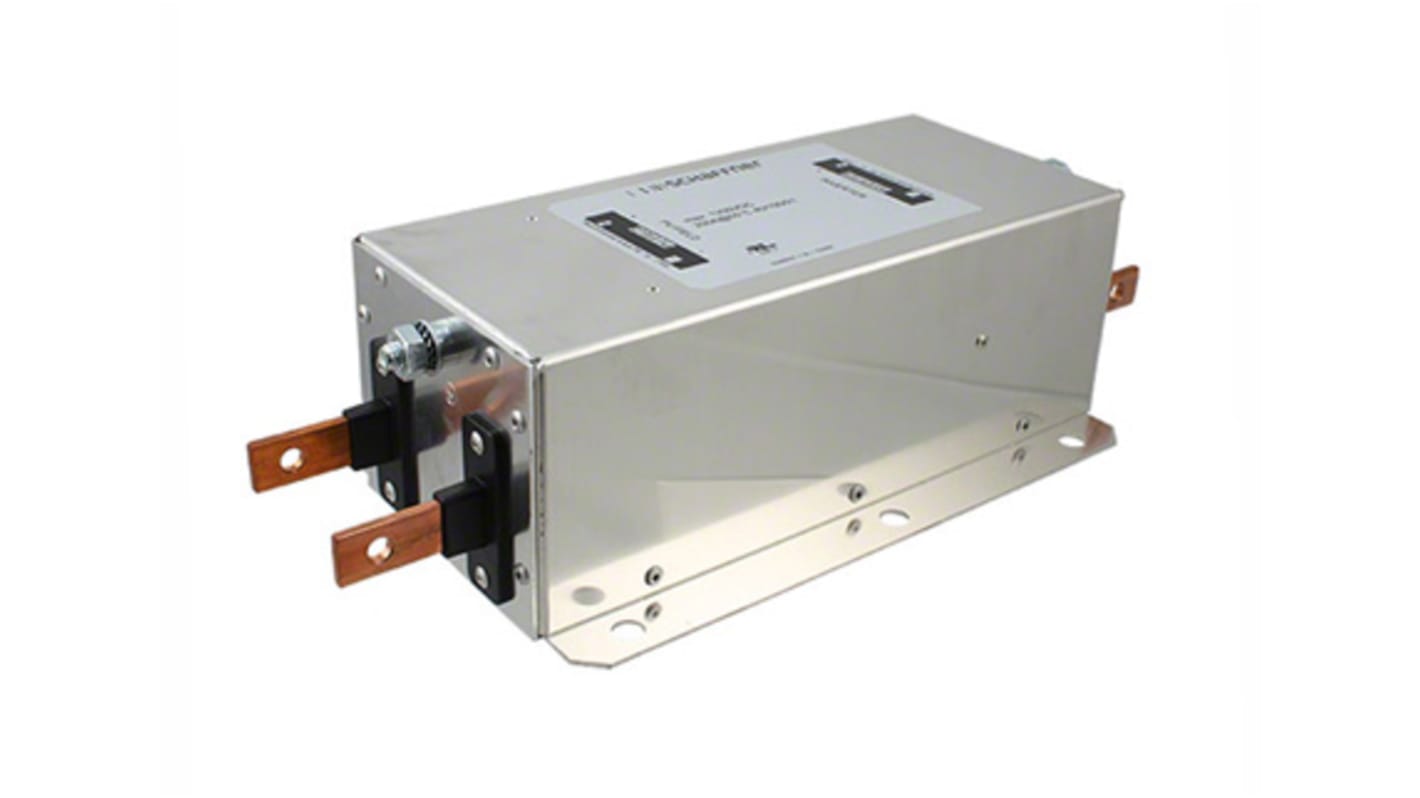

Schaffner, FN2200 250A 1200 V dc DC, Screw Mount EMI Filter, Tab, Single Phase

View all Power Line Filters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
881-2463
Mfr. Part No.:
FN2200B-250-99
Brand:
Schaffner
Find similar products by selecting one or more attributes.
Select all

Brand

Schaffner

Maximum Current Rating

250A

Maximum Voltage Rating

1200 V dc

Mounting Type

Screw Mount

Termination Style

Tab

Number of Phases

1

Series

FN2200

Number of Stages

Single Stage

Operating Frequency

DC

Length

300mm

Depth

180mm

Height

110mm

Dimensions

300 x 180 x 110mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+100°C

Power Loss

10W

FN2200 Series


Schaffner FN 2200 series DC filters aid in the control of conducted emissions on the panel side of a PV inverter system, significantly reducing the potential for high-frequency interference panel radiation. The FN 2200 series filters also protect the solar panel from HF stray and leakage currents which can cause pre-mature aging in the PV modules. FN 2200 filters are primarily designed for PV inverters. However, they can potentially also be used in other DC applications within published specifications, such as UPS, DC motor drives or DC quick chargers.

Compact design
Reduces conducted emissions
Helps prevent premature panel aging
