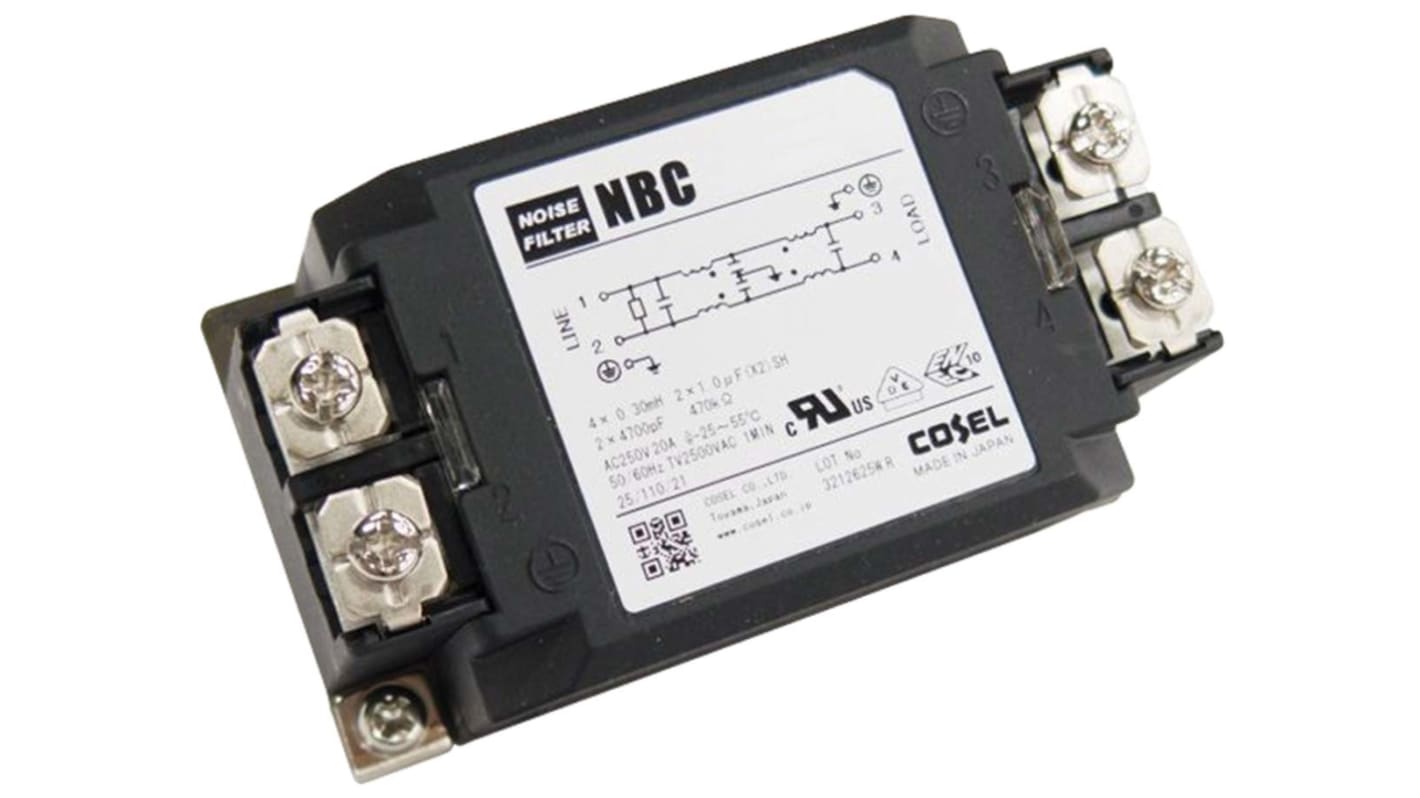

Cosel, NBC 30 A 250V ac/dc 150 kHz, 1MHz, DIN Rail RFI Filter, Screw 1 Phase
- RS Stock No.:
- 845-6886
- Mfr. Part No.:
- NBC-30-472-D
- Brand:
- Cosel
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£41.58
(exc. VAT)
£49.90
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £41.58 |
| 10 - 24 | £39.88 |
| 25 - 49 | £38.55 |
| 50 - 99 | £37.26 |
| 100 + | £35.93 |
*price indicative
- RS Stock No.:
- 845-6886
- Mfr. Part No.:
- NBC-30-472-D
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | RFI Filter | |
| Maximum Current | 30A | |
| Maximum Voltage | 250V ac/dc | |
| Mount Type | DIN Rail | |
| Termination Style | Screw | |
| Number of Phases | 1 | |
| Series | NBC | |
| Number of Stages | 2 | |
| Operating Frequency | 150, 1kHz | |
| Capacitance | 4.7nF | |
| Minimum Operating Temperature | -40°C | |
| Leakage Current | 500μA | |
| Maximum Operating Temperature | 85°C | |
| Height | 100.2mm | |
| Depth | 50mm | |
| Length | 53mm | |
| Resistance | 100mΩ | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type RFI Filter | ||
Maximum Current 30A | ||
Maximum Voltage 250V ac/dc | ||
Mount Type DIN Rail | ||
Termination Style Screw | ||
Number of Phases 1 | ||
Series NBC | ||
Number of Stages 2 | ||
Operating Frequency 150, 1kHz | ||
Capacitance 4.7nF | ||
Minimum Operating Temperature -40°C | ||
Leakage Current 500μA | ||
Maximum Operating Temperature 85°C | ||
Height 100.2mm | ||
Depth 50mm | ||
Length 53mm | ||
Resistance 100mΩ | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- JP
Cosel – NBC Series
The NBC series is a single phase noise filter designed for applications requiring a high attenuation (2-stage) type filter. They are suitable for many possible applications and feature easy connect push down style terminal blocks and selectable leakage current.
Features:
High attenuation type of common mode noise from 150kHz to 1MHz
Single Phase 250 VAC
Selectable leakage current
Quick and easy push-down terminal - Just connect the wires, push down and tighten the screws with a screwdriver
DIN rail installation type (Optional)
Noise Filter - Cosel
Standards
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
