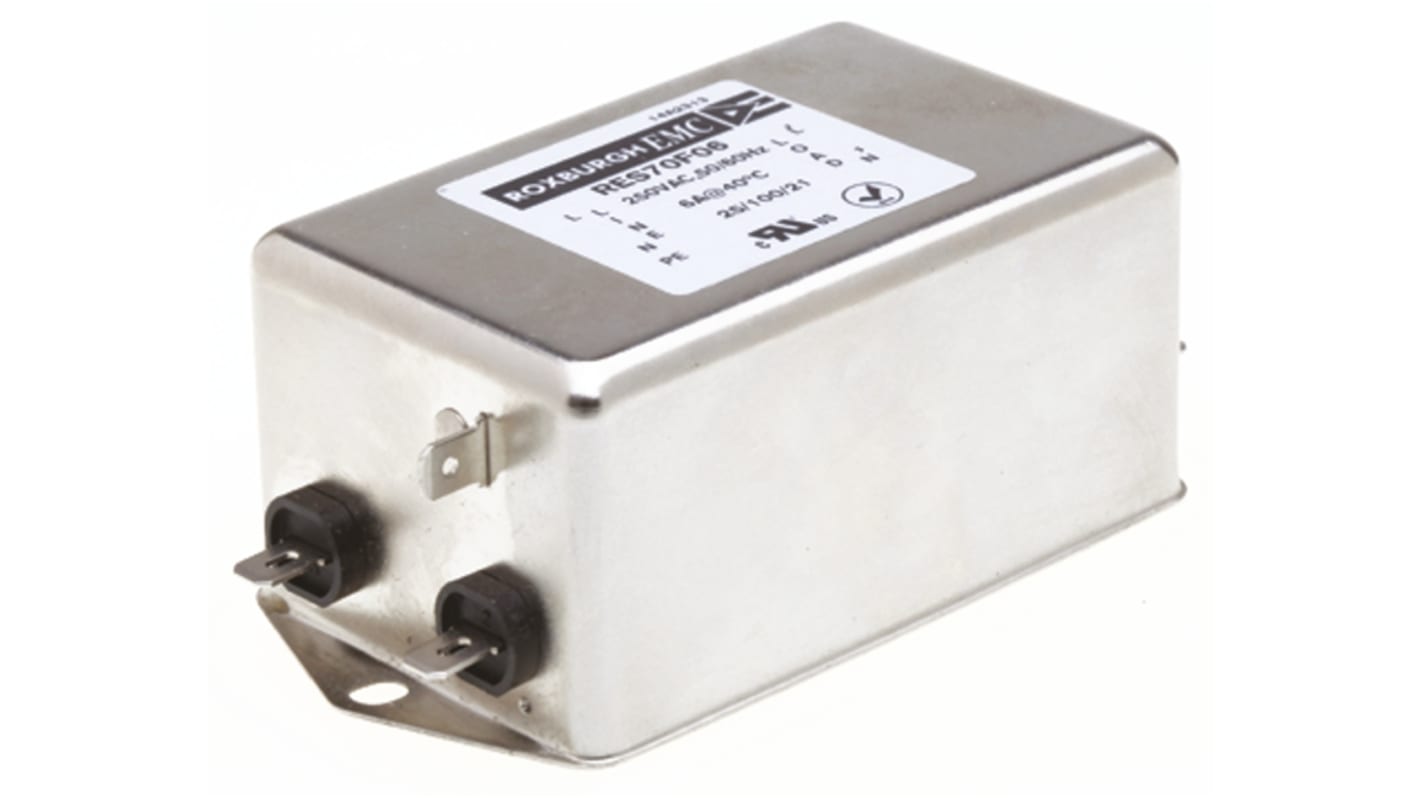

Roxburgh EMC, RES70 6A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase

View all Power Line Filters
Bulk discount available

Subtotal (1 unit)*

£69.44

(exc. VAT)

£83.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£69.44
10 - 24£65.34
25 - 49£58.90
50 - 99£52.98
100 +£49.93

*price indicative

RS Stock No.:
806-8209
Mfr. Part No.:
RES70F06
Brand:
Roxburgh EMC
Find similar products by selecting one or more attributes.
Select all

Brand

Roxburgh EMC

Maximum Current Rating

6A

Maximum Voltage Rating

250 V ac

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Number of Stages

Multi Stage

Series

RES70

Operating Frequency

DC → 400Hz

Length

115mm

Depth

57mm

Height

45mm

Capacitance

2 μF, 9.4nF

Inductance

15.6 mH

Dimensions

115 x 57 x 45mm

Minimum Operating Temperature

-25°C

Leakage Current

0.73 mA

Maximum Operating Temperature

+100°C

Resistance

220kΩ

Standards Met

CSA 22.2 No. 8, UL 1283
