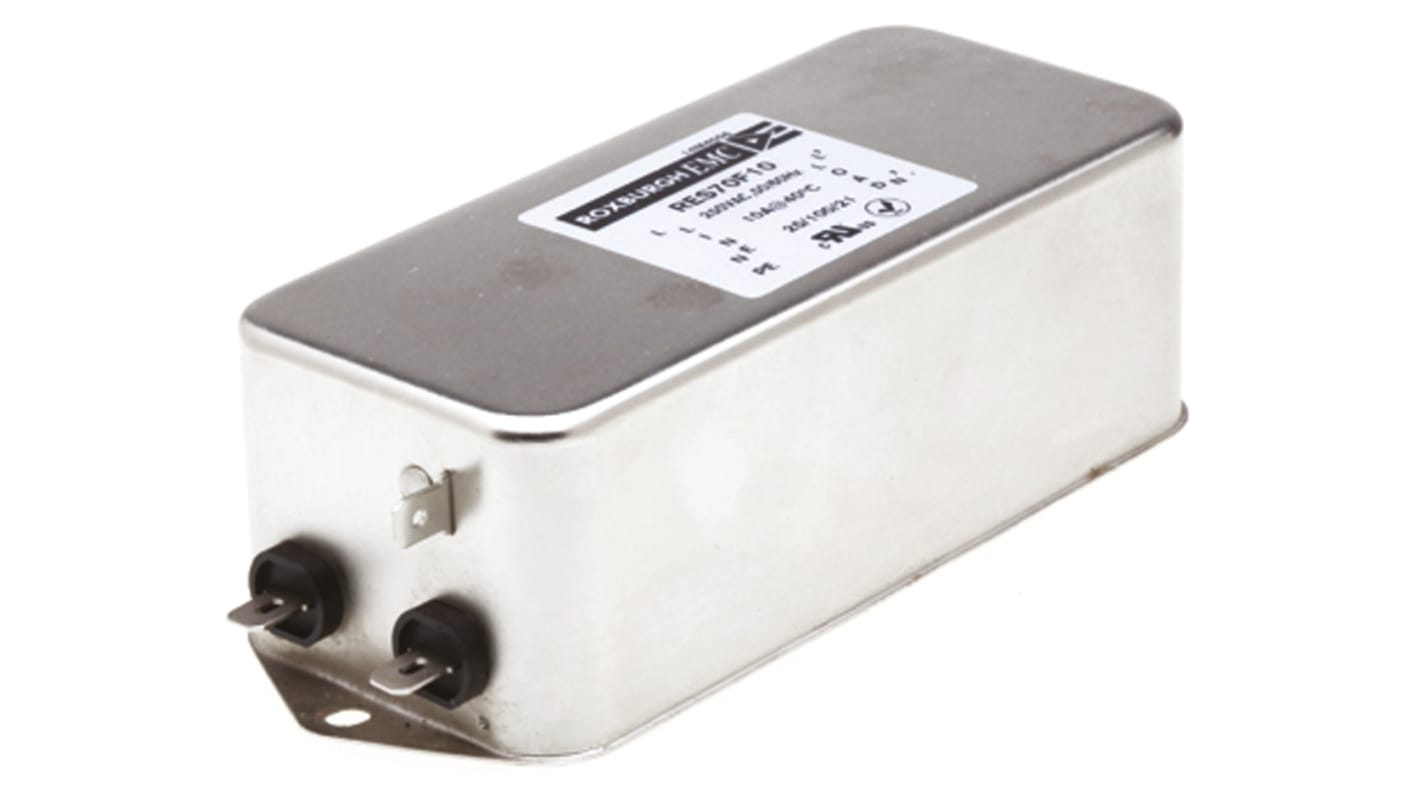

Roxburgh EMC RES70 series multi-stage, single phase EMC filter featuring high differential and common mode attenuation. The RES70 series is designed for use in applications where high levels of noise are present such as where drives are used. Typical applications for the RES70 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation.
Features & Benefits:
Multi-stage
High differential and high common mode attenuation
High frequency attenuation
For use from DC to 400Hz
1 Amp to 36 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
Attribute
Value
Maximum Current Rating
10A
Maximum Voltage Rating
250 V ac
Mounting Type
Chassis Mount
Termination Style
Fast-On
Number of Phases
1
Series
RES70
Number of Stages
Multi Stage
Operating Frequency
DC → 400Hz
Length
156mm
Depth
57.5mm
Height
45.4mm
Capacitance
2 μF, 9.4 nF
Inductance
9 mH
Dimensions
156 x 57.5 x 45.4mm
Leakage Current
0.73 mA
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+100°C
Resistance
220kΩ
Standards Met
CSA 22.2 No. 8, UL 1283
