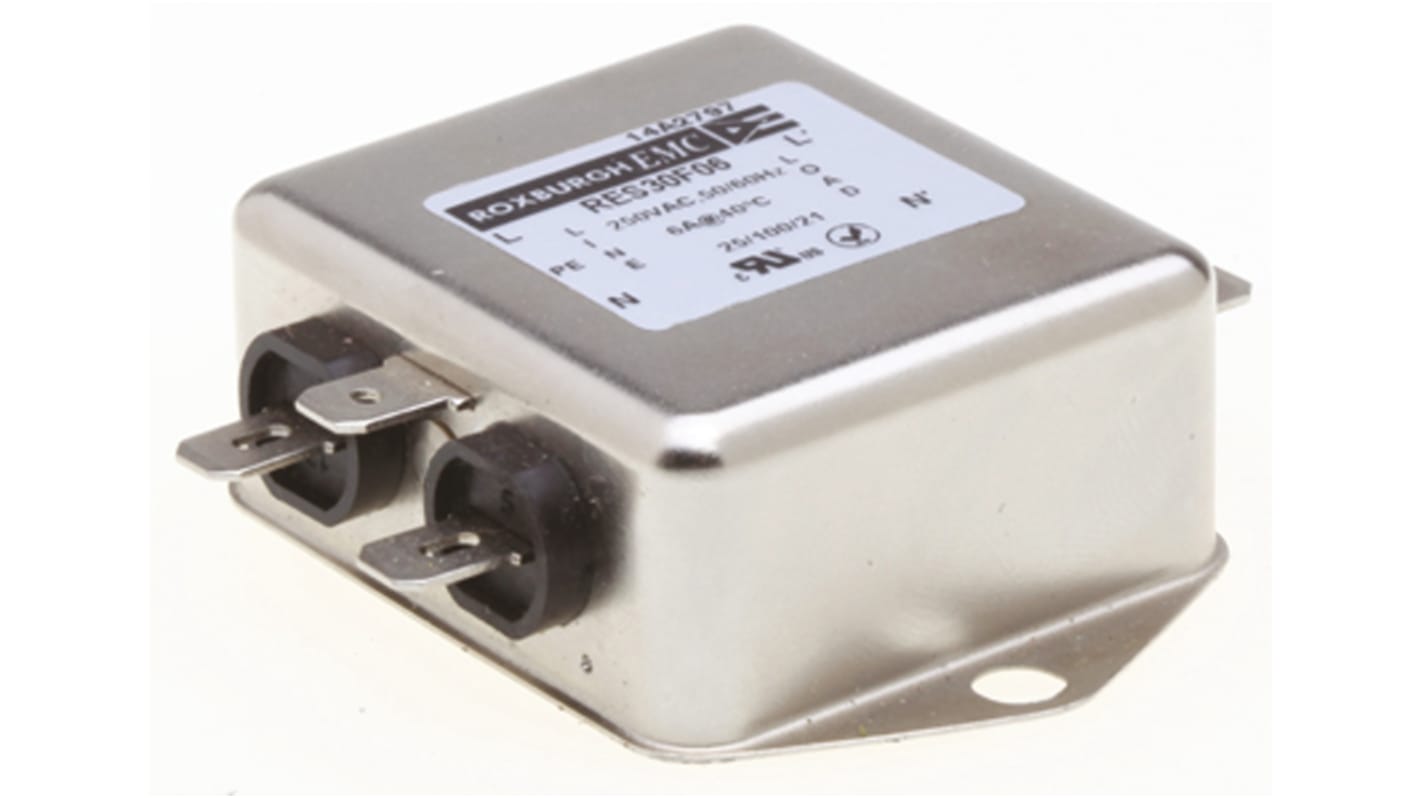

Roxburgh EMC, RES30 6A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On
- RS Stock No.:
- 806-8161
- Mfr. Part No.:
- RES30F06
- Brand:
- Roxburgh EMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 806-8161
- Mfr. Part No.:
- RES30F06
- Brand:
- Roxburgh EMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Roxburgh EMC | |
| Maximum Current Rating | 6A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Series | RES30 | |
| Operating Frequency | DC → 400Hz | |
| Length | 71mm | |
| Depth | 46.5mm | |
| Height | 22mm | |
| Capacitance | 9.4 nF, 940 nF | |
| Dimensions | 71 x 46.5 x 22mm | |
| Inductance | 8 mH | |
| Leakage Current | 0.73 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 680kΩ | |
| Standards Met | CSA 22.2 No. 8, UL 1283 | |
Select all | ||
|---|---|---|
Brand Roxburgh EMC | ||
Maximum Current Rating 6A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Fast-On | ||
Series RES30 | ||
Operating Frequency DC → 400Hz | ||
Length 71mm | ||
Depth 46.5mm | ||
Height 22mm | ||
Capacitance 9.4 nF, 940 nF | ||
Dimensions 71 x 46.5 x 22mm | ||
Inductance 8 mH | ||
Leakage Current 0.73 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 680kΩ | ||
Standards Met CSA 22.2 No. 8, UL 1283 | ||
- COO (Country of Origin):
- IN
Roxburgh EMC RES30 Series
Roxburgh EMC RES30 series single phase filters featuring high differential mode attenuation and excellent high frequency attenuation. The RES30 series are designed for use in general purpose filtering applications including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Single phase high differential and high performance attenuation
1 Amp to 30 Amp
Compact size for rated current
Fast-on, solder or wire terminations
Quick and easy chassis mounting
1 Amp to 30 Amp
Compact size for rated current
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
