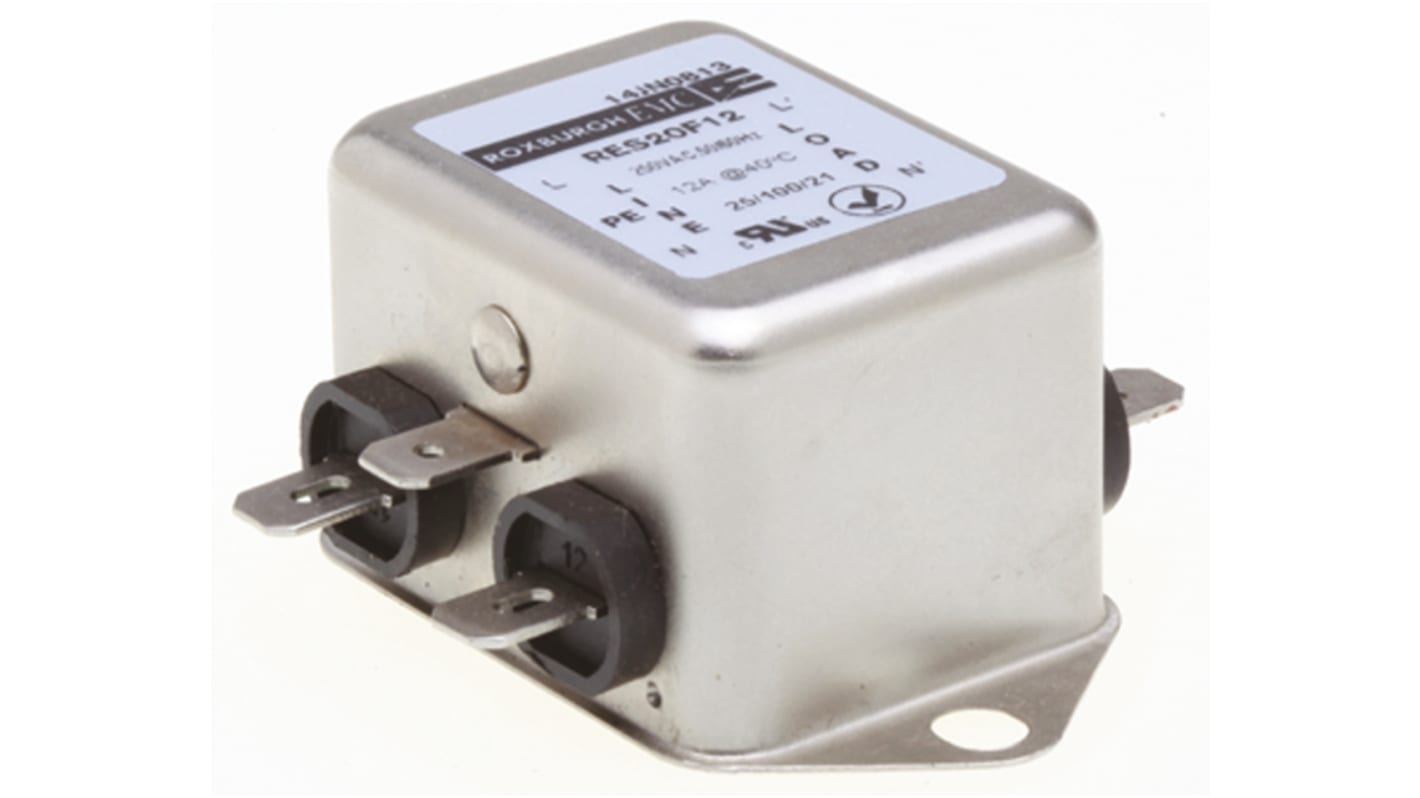

Roxburgh EMC, RES20 12A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase

RS Stock No.:: 806-8142
Mfr. Part No.:: RES20F12
Brand:: Roxburgh EMC

Roxburgh EMC, RES20 12A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase

5 In stock - FREE next working day delivery available

Price Each

£13.32

(exc. VAT)

£15.98

(inc. VAT)

Units	Per unit
1 - 9	£13.32
10 - 24	£12.96
25 - 49	£12.61
50 - 99	£12.29
100 +	£11.99

RS Stock No.:: 806-8142
Mfr. Part No.:: RES20F12
Brand:: Roxburgh EMC

Technical Reference

RES20F12 Data Sheet

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

Roxburgh EMC RES20 Series

Roxburgh EMC RES20 series single phase filters featuring excellent attenuation of conducted radio frequency interference (RFI). The RES20 series are designed for use in general purpose filtering applications where higher differential mode attenuation is required. Applications for the RES20 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation

Single phase high differential attenuation
For use from DC to 400Hz
Compact size for rated current
Fast-on, solder or wire terminations
Quick and easy chassis mounting

Approvals

UL E191581

Specifications

Attribute	Value
Maximum Current Rating	12A
Maximum Voltage Rating	250 V ac
Mounting Type	Chassis Mount
Termination Style	Fast-On
Number of Phases	1
Series	RES20
Operating Frequency	DC → 400Hz
Length	64mm
Depth	35mm
Capacitance	9.4 nF, 300nF
Height	29.3mm
Inductance	700 μH
Dimensions	64 x 35 x 29.3mm
Minimum Operating Temperature	-25°C
Leakage Current	0.74 mA
Maximum Operating Temperature	+100°C
Resistance	1MΩ
Standards Met	CSA 22.2 No. 8, UL 1283
