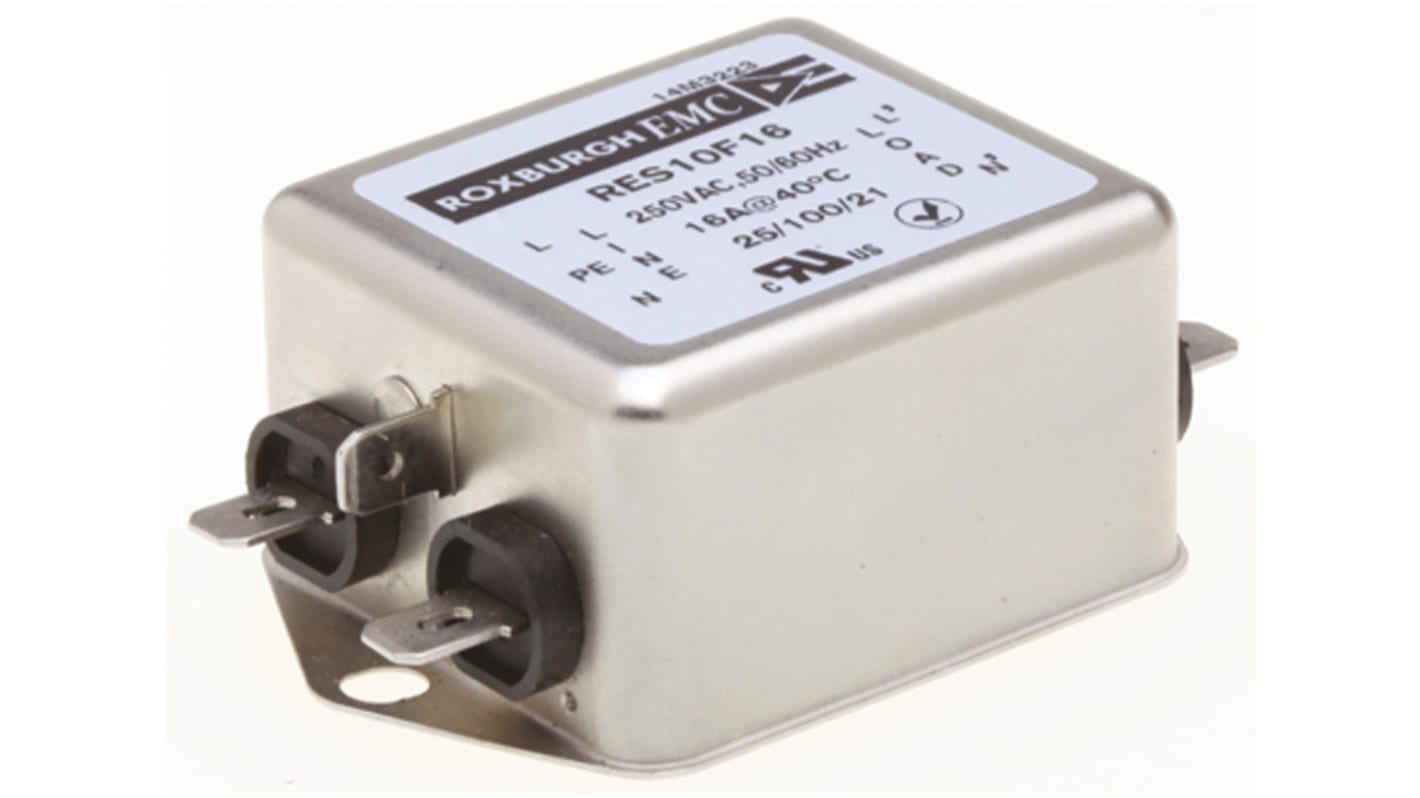

Roxburgh EMC, RES10 16 A 250V ac 400Hz, Chassis Mount RFI Filter, Fast-On 1 Phase
- RS Stock No.:
- 806-8120
- Mfr. Part No.:
- RES10F16
- Brand:
- Roxburgh EMC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£27.68
(exc. VAT)
£33.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 26 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.68 |
| 5 - 9 | £25.74 |
| 10 - 24 | £24.08 |
| 25 - 49 | £22.69 |
| 50 + | £21.03 |
*price indicative
- RS Stock No.:
- 806-8120
- Mfr. Part No.:
- RES10F16
- Brand:
- Roxburgh EMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Roxburgh EMC | |
| Maximum Current | 16A | |
| Product Type | RFI Filter | |
| Maximum Voltage | 250V ac | |
| Mount Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | RES10 | |
| Operating Frequency | 400Hz | |
| Capacitance | 100nF | |
| Inductance | 700μH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 740μA | |
| Maximum Operating Temperature | 85°C | |
| Length | 71mm | |
| Height | 29mm | |
| Depth | 45mm | |
| Resistance | 1mΩ | |
| Standards/Approvals | CSA 22.2 No. 8, UL 1283 | |
| Select all | ||
|---|---|---|
Brand Roxburgh EMC | ||
Maximum Current 16A | ||
Product Type RFI Filter | ||
Maximum Voltage 250V ac | ||
Mount Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series RES10 | ||
Operating Frequency 400Hz | ||
Capacitance 100nF | ||
Inductance 700μH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 740μA | ||
Maximum Operating Temperature 85°C | ||
Length 71mm | ||
Height 29mm | ||
Depth 45mm | ||
Resistance 1mΩ | ||
Standards/Approvals CSA 22.2 No. 8, UL 1283 | ||
- COO (Country of Origin):
- IN
Roxburgh EMC RES10 Series
Roxburgh EMC RES10 series single phase filters featuring excellent attenuation of conducted radio frequency interference (RFI). The RES10 series are designed for use in general purpose filtering applications including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Compact size for rated current
For use from DC to 400Hz
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
