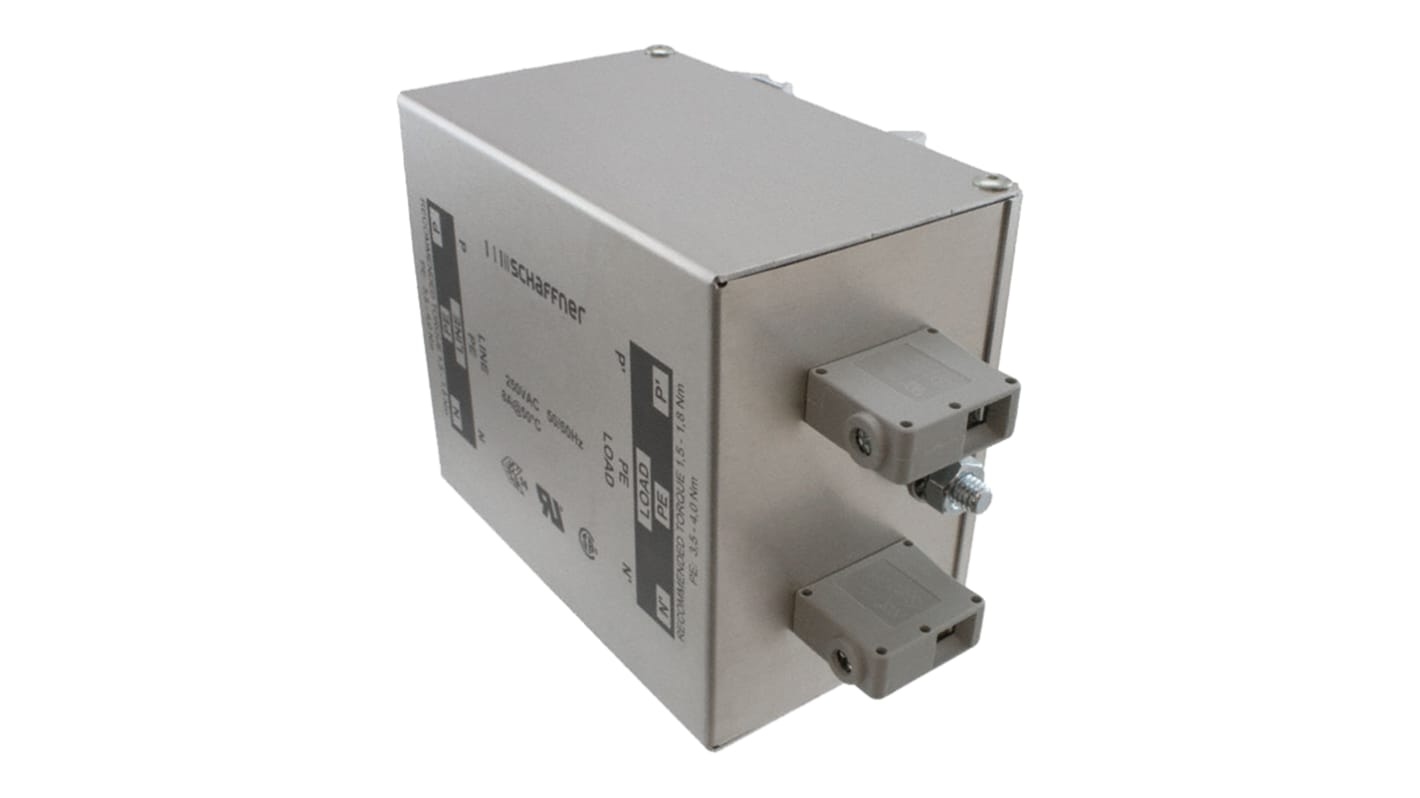

Schaffner, FN2410H 32A 520/300 V ac 400Hz, Chassis Mount EMC Filter, Terminal Block 2 Phase
- RS Stock No.:
- 518-6323
- Mfr. Part No.:
- FN2410H-32-33
- Brand:
- Schaffner
Save 13% when you buy 25 units
Subtotal (1 unit)*
£90.30
(exc. VAT)
£108.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 10 unit(s) shipping from 09 October 2025
- Plus 10 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £90.30 |
| 5 - 9 | £83.98 |
| 10 - 24 | £79.89 |
| 25 + | £77.89 |
*price indicative
- RS Stock No.:
- 518-6323
- Mfr. Part No.:
- FN2410H-32-33
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 32A | |
| Maximum Voltage Rating | 520/300 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 2 | |
| Series | FN2410H | |
| Number of Stages | Single Stage | |
| Operating Frequency | 400Hz | |
| Length | 158mm | |
| Depth | 93mm | |
| Height | 76mm | |
| Dimensions | 158 x 93 x 76mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 3.4 mA | |
| Maximum Operating Temperature | +100°C | |
| Power Loss | 5.6W | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 32A | ||
Maximum Voltage Rating 520/300 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 2 | ||
Series FN2410H | ||
Number of Stages Single Stage | ||
Operating Frequency 400Hz | ||
Length 158mm | ||
Depth 93mm | ||
Height 76mm | ||
Dimensions 158 x 93 x 76mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 3.4 mA | ||
Maximum Operating Temperature +100°C | ||
Power Loss 5.6W | ||
FN2410H Series
For applications with high interference levels
Current ratings up to 100A
Can be used across two phases in a three-phase network, handling voltages up to 520VAC
Current ratings up to 100A
Can be used across two phases in a three-phase network, handling voltages up to 520VAC
Standards
EN 133 200
Approvals
UL1283, CSA22.2 No.8 1986
Approvals
UL1283, CSA22.2 No.8 1986
