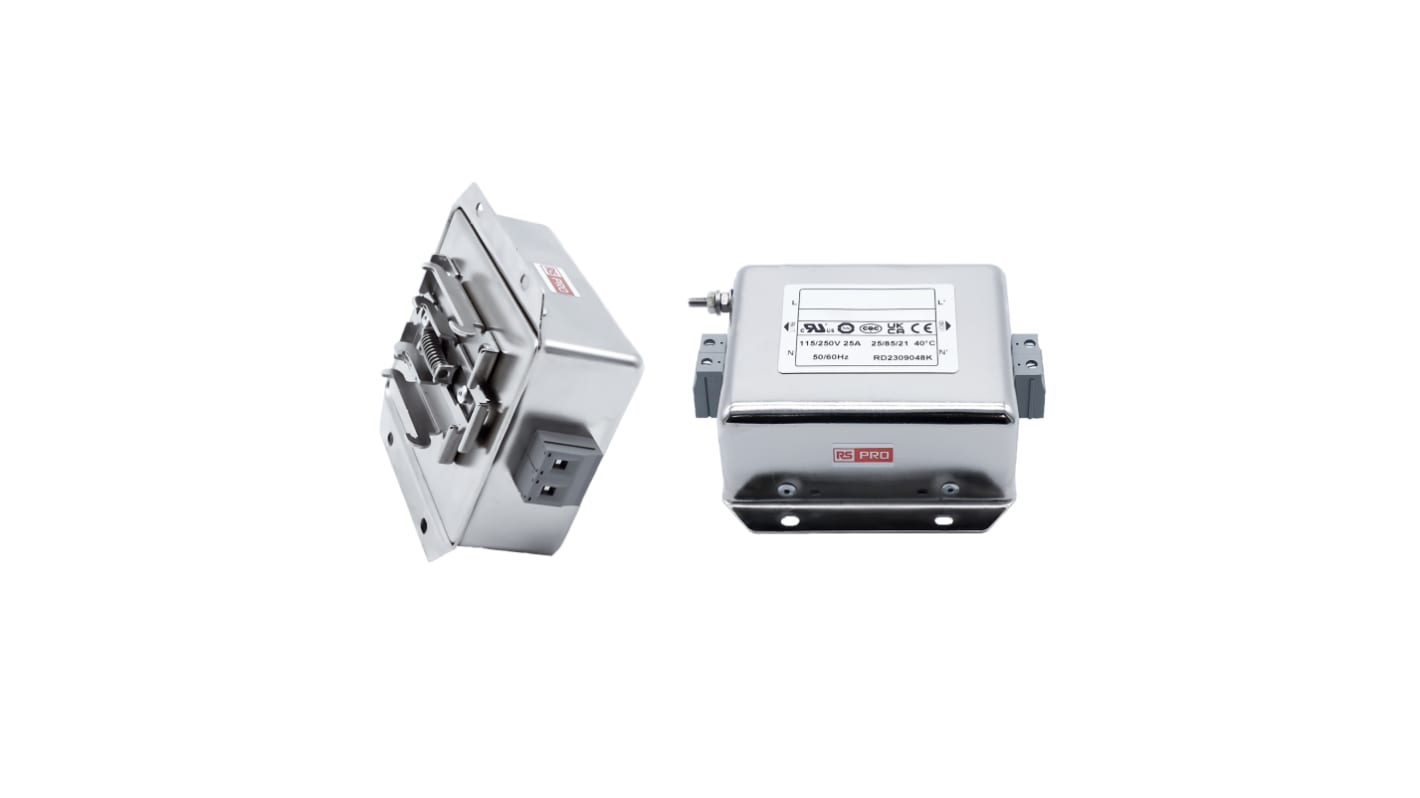

RS PRO 25A 250 V ac 50/60Hz, Chassis Mount Power Line Filter, Terminal Block Single Phase
- RS Stock No.:
- 278-5149
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£61.87
(exc. VAT)
£74.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 65 unit(s) ready to ship
- Plus 999,999,934 unit(s) shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £61.87 |
5 - 9 | £61.77 |
10 - 19 | £61.67 |
20 + | £61.56 |
*price indicative
- RS Stock No.:
- 278-5149
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Maximum Current Rating | 25A | |
Maximum Voltage Rating | 250 V ac | |
Mounting Type | Chassis Mount | |
Termination Style | Terminal Block | |
Number of Phases | Single | |
Number of Stages | Single Stage | |
Operating Frequency | 50/60Hz | |
Length | 105mm | |
Depth | 96mm | |
Height | 41mm | |
Capacitance | 1.0uF, 10000pF | |
Inductance | 2 x 2.5mH | |
Dimensions | 105 x 96 x 41mm | |
Leakage Current | 1.0/1.9mA | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +85°C | |
Resistance | 470kΩ | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Maximum Current Rating 25A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases Single | ||
Number of Stages Single Stage | ||
Operating Frequency 50/60Hz | ||
Length 105mm | ||
Depth 96mm | ||
Height 41mm | ||
Capacitance 1.0uF, 10000pF | ||
Inductance 2 x 2.5mH | ||
Dimensions 105 x 96 x 41mm | ||
Leakage Current 1.0/1.9mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 470kΩ | ||
- COO (Country of Origin):
- CN
RS PRO 25A DIN Rail Mount Single Phase Power Line EMI Filter
A high quality EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.
Designed for chassis or 35mm DIN rail mounting and built to a compact size the power line filter is ideal for areas with limited space and is easily connected using the terminal block connections.
Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and is ideal for general purpose filtering.
Suitable for use with a wide range of general electrical and electronic equipment, sensitive medical equipment, new energy, office and communication equipment.
Features and Benefits
Power line EMI filter
Voltage rated to 115/250 Vac
Current rated to 25A
DIN rail and chassis mount
Inductance of 2 x 2.5mH
Capacitance of 1.0uF; 10000pF
Hipot Rating 2250vdc (line to ground), 500Vdc (line to line)
IP40 rated
Terminal block connections
Dimensions of 105 x 96 x 41mm
Weight of 650g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, Reach, RoHS, UL EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Standards
UL E542953
