Wurth Elektronik, WE-CLFS 14 A 250V 100Hz, -25 Hz, Chassis Mount EMC Filter, Fast-On 1 Phase
- RS Stock No.:
- 238-9632
- Mfr. Part No.:
- 810913014112
- Brand:
- Wurth Elektronik
Subtotal (1 tray of 6 units)*
£159.888
(exc. VAT)
£191.868
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 6 + | £26.648 | £159.89 |
*price indicative
- RS Stock No.:
- 238-9632
- Mfr. Part No.:
- 810913014112
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Maximum Current | 14A | |
| Product Type | EMC Filter | |
| Maximum Voltage | 250V | |
| Mount Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | WE-CLFS | |
| Operating Frequency | 100, -25Hz | |
| Capacitance | 1μF | |
| Minimum Operating Temperature | -25°C | |
| Inductance | 2.2mH | |
| Leakage Current | 0mA | |
| Maximum Operating Temperature | 100°C | |
| Depth | 29mm | |
| Length | 43mm | |
| Height | 54mm | |
| Resistance | 300mΩ | |
| Standards/Approvals | EN 50110-1 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Maximum Current 14A | ||
Product Type EMC Filter | ||
Maximum Voltage 250V | ||
Mount Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series WE-CLFS | ||
Operating Frequency 100, -25Hz | ||
Capacitance 1μF | ||
Minimum Operating Temperature -25°C | ||
Inductance 2.2mH | ||
Leakage Current 0mA | ||
Maximum Operating Temperature 100°C | ||
Depth 29mm | ||
Length 43mm | ||
Height 54mm | ||
Resistance 300mΩ | ||
Standards/Approvals EN 50110-1 | ||
- COO (Country of Origin):
- CN

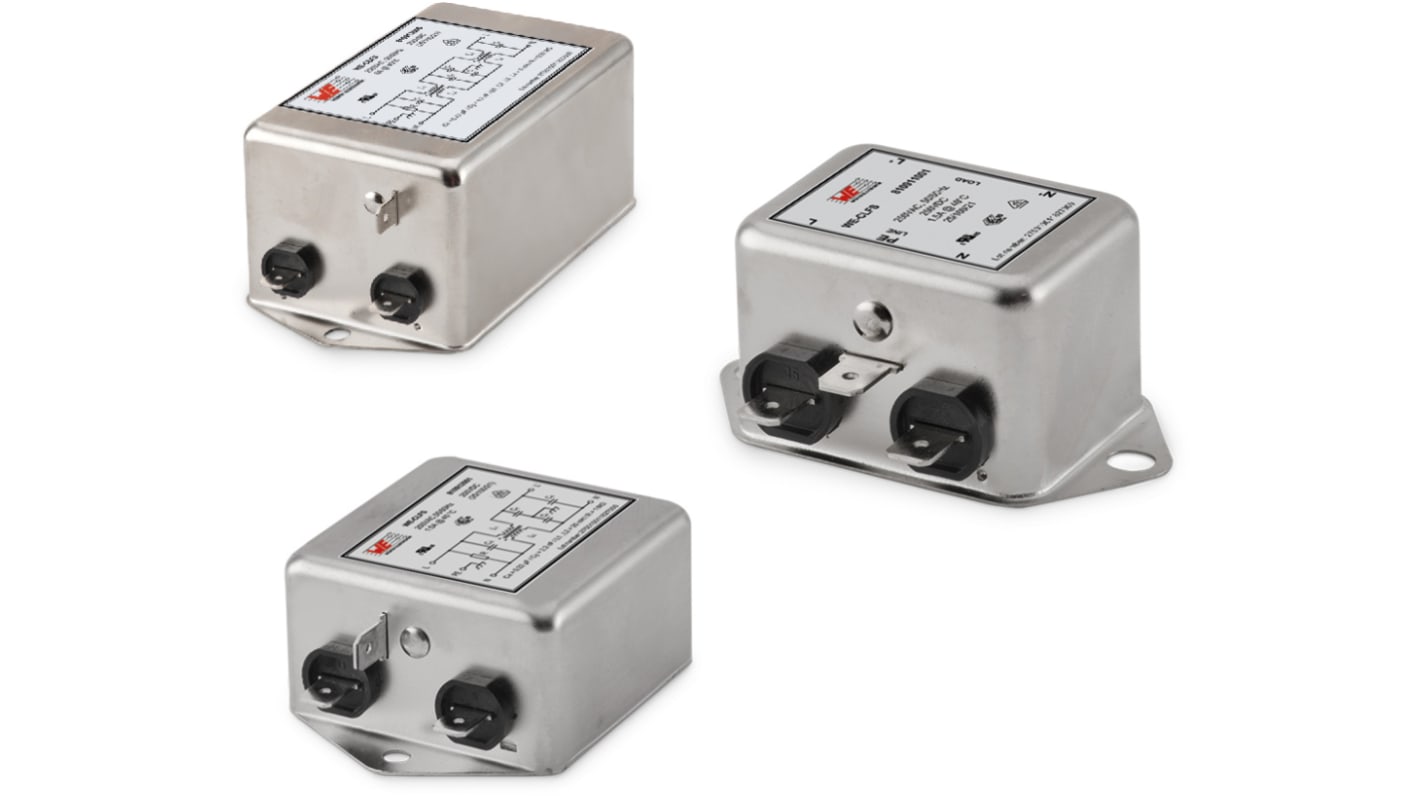

The Wurth elektronik WE-CLFS line filter has 2.2 mH inductance, 1 μF X2-capacitance, 250V rated voltage and 14A rated current. It's operating temperature ranges between -25 °C to +100 °C. It is used in applications such as industrial electronics, telecommunications, switched-mode power supplies, household goods and DC applications.
Single-phase filter
Broadband noise suppression in common and differential mode
Simple connection through crimp cable lug
Fast chassis mounting
Flammability corresponding to UL 94 V-0
RoHS compliant
