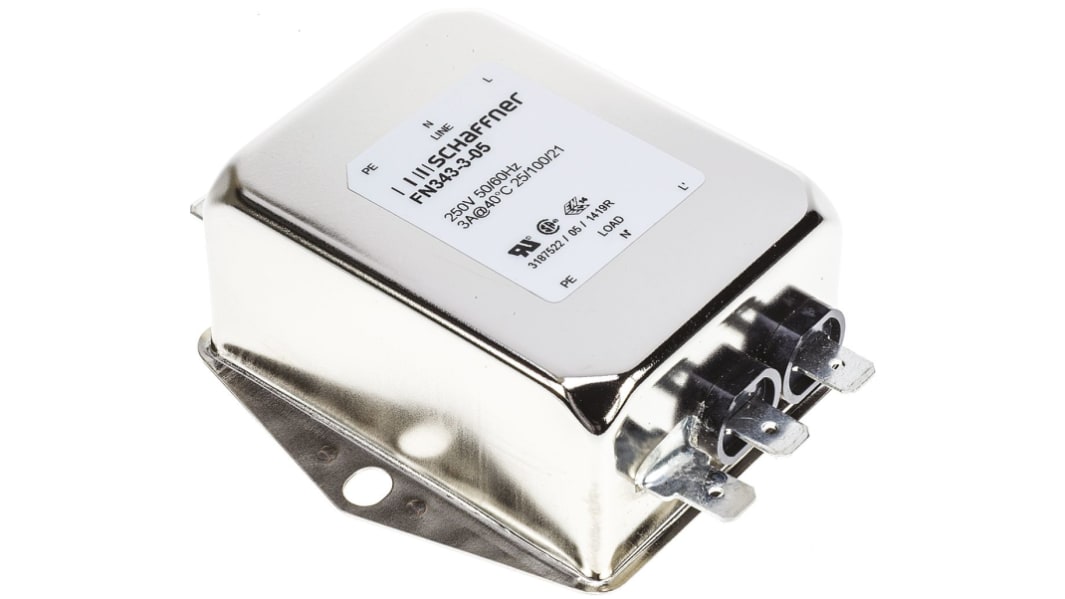

Schaffner FN 343 Series 3A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals
- RS Stock No.:
- 123-0426
- Mfr. Part No.:
- FN343-3-05
- Brand:
- Schaffner
9 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Price Each
£41.86
(exc. VAT)
£50.23
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £41.86 |
5 - 9 | £38.93 |
10 - 24 | £36.42 |
25 - 49 | £35.33 |
50 + | £34.41 |
- RS Stock No.:
- 123-0426
- Mfr. Part No.:
- FN343-3-05
- Brand:
- Schaffner
Technical Reference
Legislation and Compliance
Product Details
FN 343 Series Two-stage General Purpose Filters
Schaffner performance FN 343 EMI Filters are compact in design for easy and fast chassis mounting. Single-phase filters provide an excellent
Attenuation performance, based on chokes with high saturation and excellent thermal behaviour. Also feature integrated earth line choke. Rated currents from 1 A to 10 A
Attenuation performance, based on chokes with high saturation and excellent thermal behaviour. Also feature integrated earth line choke. Rated currents from 1 A to 10 A
Applications
Electrical and electronic equipment
Household equipment
Power supplies
Consumer goods
Office automation equipment
Datacom equipment
Household equipment
Power supplies
Consumer goods
Office automation equipment
Datacom equipment
![](https://media.rs-online.com/t_line/LF167825-10.gif)
Specifications
Attribute | Value |
---|---|
Maximum Current Rating | 3A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Chassis Mount |
Termination Style | Tab |
Series | FN 343 |
Number of Stages | Two Stage |
Operating Frequency | 400Hz |
Length | 70mm |
Height | 30.3mm |
Capacitance | 2.2 nF, 100 nF |
Inductance | 1.1 mH, 2 mH, 400 μH |
Minimum Operating Temperature | -25°C |
Leakage Current | 0.34 mA |
Maximum Operating Temperature | +100°C |
Resistance | 1MΩ |
