RS PRO Pure Sine Wave 2000W Power Inverter, 24V Input, 230V Output
- RS Stock No.:
- 179-3338
- Brand:
- RS PRO
48 In stock - FREE next working day delivery available
Price Each
£397.94
(exc. VAT)
£477.53
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £397.94 |
5 - 9 | £386.00 |
10 - 24 | £374.07 |
25 - 49 | £362.13 |
50 + | £350.19 |
- RS Stock No.:
- 179-3338
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

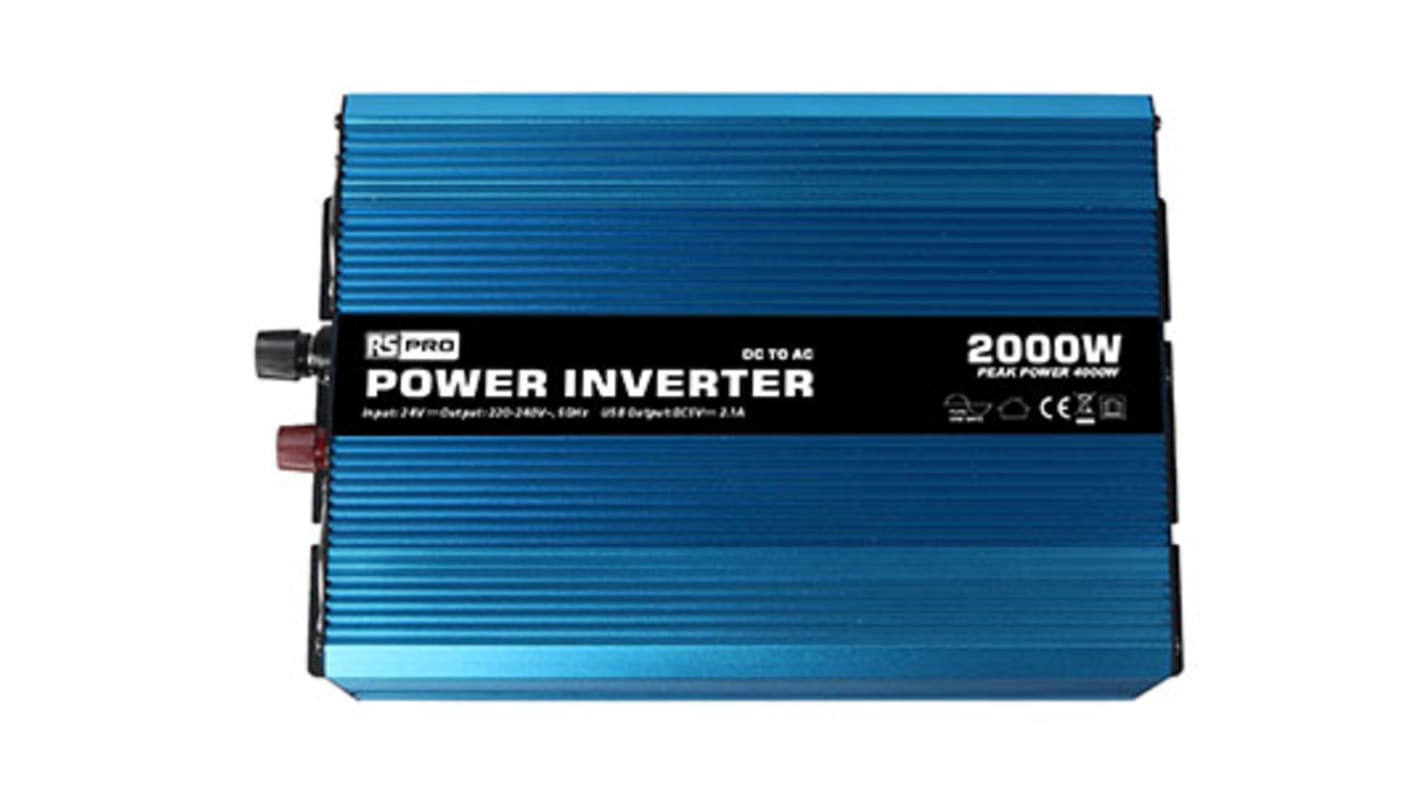

RS PRO 2000 W Fixed Installation DC-AC Power Inverter, 24 V/230 V
Need a safe way to power your electrical devices from a truck, motorhome or car battery? The RS PRO 2000 W DC-AC power inverter has automatic shutdown and restart functions to prevent overvoltage and short-circuiting, plus built-in protections from overheating and overloading.
The device is simple to operate with a single on/off switch, two universal plug sockets and colour-coded battery terminals. Two LED indicators allow you to check the inverter's operating status at a glance. An anodised aluminium case dissipates heat rapidly, preventing damage from overheating.
Power inverters are an alternative power supply to mains electricity. They're often used in the logistics industry and to power appliances in RVs and motorhomes.
The device is simple to operate with a single on/off switch, two universal plug sockets and colour-coded battery terminals. Two LED indicators allow you to check the inverter's operating status at a glance. An anodised aluminium case dissipates heat rapidly, preventing damage from overheating.
Power inverters are an alternative power supply to mains electricity. They're often used in the logistics industry and to power appliances in RVs and motorhomes.
Features and Benefits
• Chassis mounting
• Maximum input current 166.7 A
• Pure sine wave output
• Output current of 17.39 A
• Output frequency of 50 Hz
• Single-phase electrical output
• Efficiency >90%
• Maximum input current 166.7 A
• Pure sine wave output
• Output current of 17.39 A
• Output frequency of 50 Hz
• Single-phase electrical output
• Efficiency >90%
• MTBF (mean time between failures) of 50000 h
• Dimensions of 372 mm x 230 mm x 107.7 mm
• Weight of 4.9 kg
• Operating temperature range of -20°C to +50°C
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• Dimensions of 372 mm x 230 mm x 107.7 mm
• Weight of 4.9 kg
• Operating temperature range of -20°C to +50°C
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
Specifications
Attribute | Value |
---|---|
Input Voltage | 24V |
Output Voltage | 230V |
Output Power Continuous | 2000W |
Output Power Intermittent | 2100W |
Output Power Waveform | Pure Sine Wave |
Output Connection Type | Universal |
Efficiency | >90% |
MTBF | 50000h |
Output Current | 17.39A |
Length | 372mm |
Width | 230mm |
Depth | 107.7mm |
Weight | 4.9kg |
Minimum Temperature | -20°C |
Maximum Input Current | 166.7A |
Mounting Type | Chassis Mount |
Output Frequency Range | 50Hz |
Output Electrical Phase | 1 |
Maximum Temperature | +50°C |
Number of Output Connections | 2 |
Inverter Directionality | DC to AC |
Standards Met | CE, ECE R10.05:2014, ECE R10.05:2014EN 61000-6-3, EN 60950-1, EN 61000-6-1, EN 61000-6-3 |
