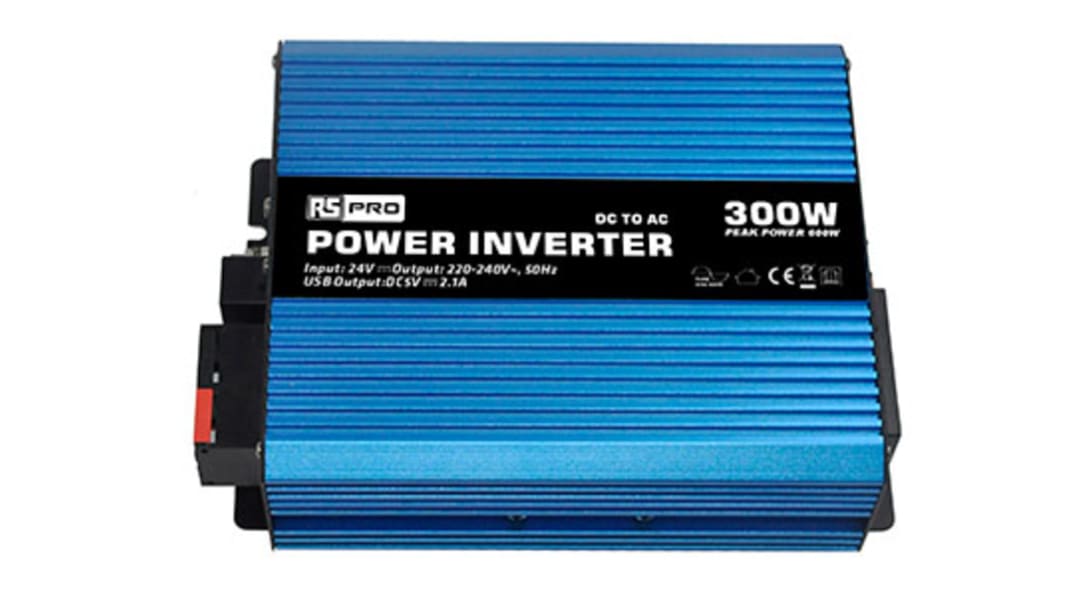

RS PRO Pure Sine Wave 300W Power Inverter, 24V Input, 230V Output

RS Stock No.:: 179-3326
Brand:: RS PRO

RS PRO Pure Sine Wave 300W Power Inverter, 24V Input, 230V Output

34 In stock - FREE next working day delivery available

3 available from Europe for delivery within 2 working day(s).

Price Each

£110.50

(exc. VAT)

£132.60

(inc. VAT)

Units	Per unit
1 - 4	£110.50
5 - 9	£107.18
10 - 24	£103.87
25 - 49	£100.55
50 +	£97.24

RS Stock No.:: 179-3326
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

RS PRO 300 W Fixed Installation DC-AC Power Inverter, 24 V/230 V

This compact 300 W DC to AC power inverter from RS PRO is designed to be connected to a car battery for the charging of appliances on-the-go or in emergencies. It converts DC (direct current) voltage to alternating current (AC), which is how mains electricity is supplied in homes and other buildings. Car batteries produce DC voltage, which is incompatible with most household appliances.

This inverter generates pure sine wave – a smooth AC that works best with delicate electronics. It's lightweight, easy to operate and comes in a hardwearing anodised aluminium case. A soft start mechanism limits the inrush current to prevent sudden jerks in operation and prevent any sudden stress to machinery.

The product's efficiency rating of over 90% means it loses very little heat during operation, while built-in controls prevent overheating and over-voltage. It's been rigorously tested to meet RS PRO's stringent quality standards.

Features and Benefits

• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Continuous power output of 300 W
• Intermittent power output of 350 W
• Surge power of 600 W
• Universal output connection type
• Efficiency rating over 90%
• Mean time between failures of 50,000 h
• Output current of 2.61 A
• Maximum input of 25 A
• Length of 204.2 mm
• Width of 150 mm
• Depth of 58 mm
• Weight of 1.4 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications

Attribute	Value
Input Voltage	24V
Output Voltage	230V
Output Power Continuous	300W
Output Power Intermittent	350W
Output Power Waveform	Pure Sine Wave
Output Connection Type	Universal
Efficiency	>90%
MTBF	50000h
Output Current	2.61A
Length	204.2mm
Width	150mm
Depth	58mm
Weight	1.4kg
Minimum Temperature	-20°C
Maximum Input Current	25A
Mounting Type	Chassis Mount
Inverter Directionality	DC to AC
Number of Output Connections	1
Output Frequency Range	50Hz
Standards Met	CE, ECE R10.05:2014, EN 60950-1, EN 61000-6-1, EN 61000-6-3
Output Electrical Phase	1
Maximum Temperature	+50°C
