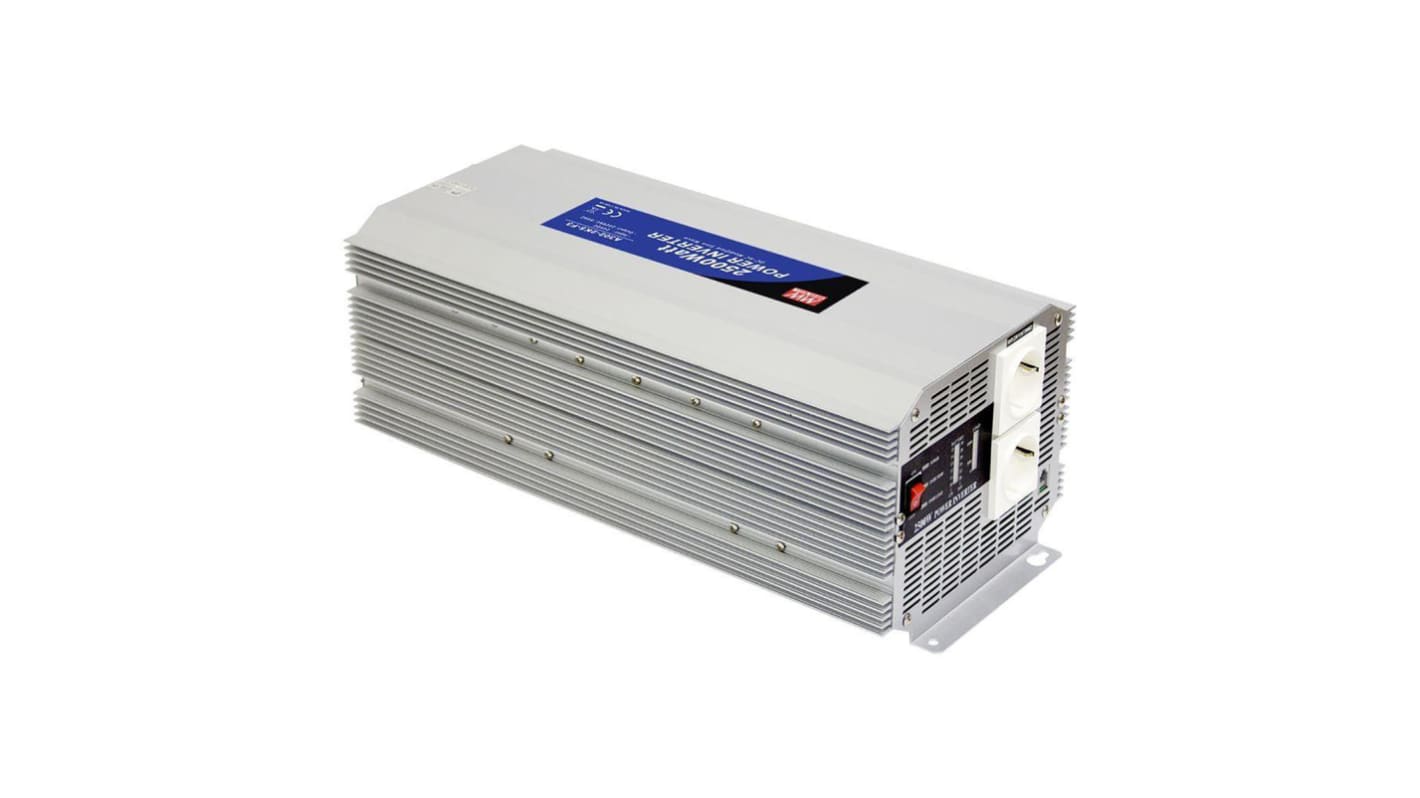

MEAN WELL Screw 2500W Power Inverter, 24V dc Input, 230V ac Output
- RS Stock No.:
- 174-8113
- Distrelec Article No.:
- 302-96-337
- Mfr. Part No.:
- A302-2K5-F3
- Brand:
- MEAN WELL
Get a bulk buy discount
Add 5 more to save 2%
View bulk pricing optionsSubtotal (1 unit)*
£662.37
(exc. VAT)
£794.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £662.37 | - |
| 5 - 9 | £642.51 | 2% |
| 10 - 24 | £622.64 | 5% |
| 25 - 49 | £602.77 | 8% |
| 50 + | £582.88 | 12% |
*price indicative
- RS Stock No.:
- 174-8113
- Distrelec Article No.:
- 302-96-337
- Mfr. Part No.:
- A302-2K5-F3
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Input Voltage | 24V dc | |
| Product Type | Power Inverter | |
| Output Voltage | 230V ac | |
| Output Power | 2500W | |
| Output Connector Type | Schuko Socket | |
| Efficiency | 85% | |
| Number of Outputs | 2 | |
| MTBF | 37kH | |
| Output Current | 10.87A | |
| Maximum Operating Temperature | 25°C | |
| Width | 210mm | |
| Series | A-301/302-2K5 | |
| Depth | 159mm | |
| Standards/Approvals | CE | |
| Length | 430mm | |
| Minimum Operating Temperature | 0°C | |
| Mount Type | Screw | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Input Voltage 24V dc | ||
Product Type Power Inverter | ||
Output Voltage 230V ac | ||
Output Power 2500W | ||
Output Connector Type Schuko Socket | ||
Efficiency 85% | ||
Number of Outputs 2 | ||
MTBF 37kH | ||
Output Current 10.87A | ||
Maximum Operating Temperature 25°C | ||
Width 210mm | ||
Series A-301/302-2K5 | ||
Depth 159mm | ||
Standards/Approvals CE | ||
Length 430mm | ||
Minimum Operating Temperature 0°C | ||
Mount Type Screw | ||
- COO (Country of Origin):
- CN
Build-in USB inferface
Cooling by free air convection (without fan)
Slim size can fit in with the cup holder on vehicles
High efficiency up to 90%
12V or 24V DC input
Input voltage range: -15% ∼ +25%
Output voltage regulation:±10%
Protections: Input reverse polarity Bat. Low shutdown/Over voltage/Over load/Over temperature/Over short
Output waveform: Modified sine wave
Topology: Microprocessor
1 year warranty
DC-AC Modified sine wave inverter 2500W, Input 24Vdc, Output 230Vac, ON/OFF switch, Cooling fan ON/OFF control
