- RS Stock No.:
- 174-8098
- Mfr. Part No.:
- A301-600-F6
- Brand:
- MEAN WELL
16 In stock - FREE next working day delivery available
Added
Price Each
£97.45
(exc. VAT)
£116.94
(inc. VAT)
Units | Per unit |
1 - 4 | £97.45 |
5 - 9 | £94.53 |
10 - 24 | £91.60 |
25 - 49 | £88.68 |
50 + | £85.76 |
- RS Stock No.:
- 174-8098
- Mfr. Part No.:
- A301-600-F6
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details

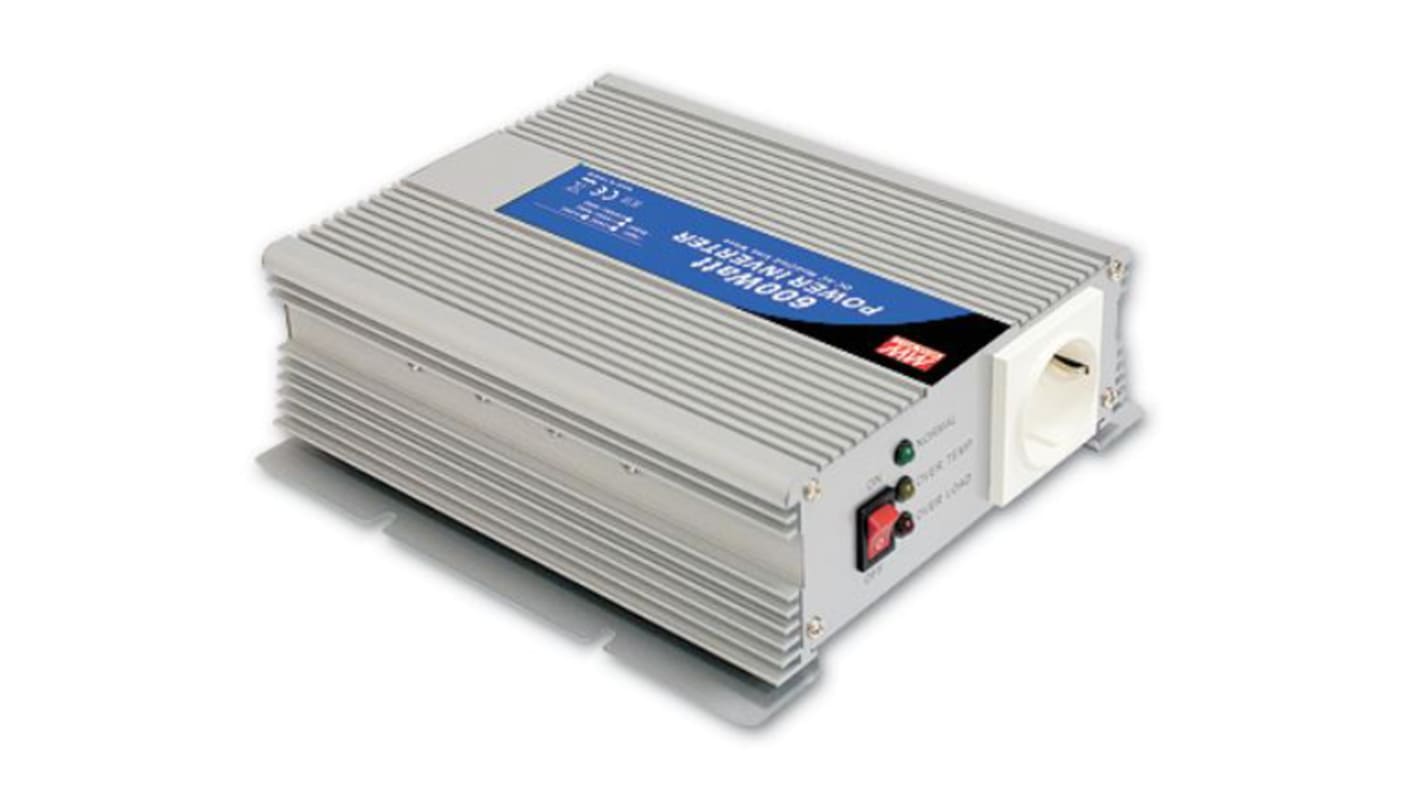

Mean Well Fixed Installation DC-AC Power Inverter
The Mean Well fixed installation DC/AC inverter is a quality power inverter. It comes with a green LED for power on and a red LED to signify power failure status. Its high efficiency ensures high MTBF. The inverter comes with a screw mount and uses a cigarette plug type of connector.
Features and Benefits
12VDC input voltage
Continuous output power 600W
Cooling fan ON-OFF control
Input voltage range between -15% and 25%
Microprocessor topology
Modified sine wave output waveform
Output voltage regulation is ±10%
Power ON-OFF switch
Continuous output power 600W
Cooling fan ON-OFF control
Input voltage range between -15% and 25%
Microprocessor topology
Modified sine wave output waveform
Output voltage regulation is ±10%
Power ON-OFF switch
Applications
Home appliance
Office and portable equipment
Power tools
Vehicle
Office and portable equipment
Power tools
Vehicle
Certifications
CE certified
CEE certified
EN55022 class B
EN60950
EN61000-4-2,3
CEE certified
EN55022 class B
EN60950
EN61000-4-2,3
Specifications
Attribute | Value |
---|---|
Input Voltage | 12V dc |
Output Voltage | 230V ac |
Output Power Continuous | 600W |
Output Power Waveform | Modified Sine Wave |
Output Connection Type | British 3-pin |
Efficiency | 82% |
MTBF | 100kh |
Output Current | 2.6A |
Length | 210mm |
Width | 173mm |
Depth | 65mm |
Minimum Temperature | 0°C |
Output Frequency Range | 50Hz |
Number of Output Connections | 1 |
Maximum Input Current | 60A dc |
Inverter Directionality | DC to AC |
Maximum Temperature | +40°C |
Mounting Type | Screw Mount |
