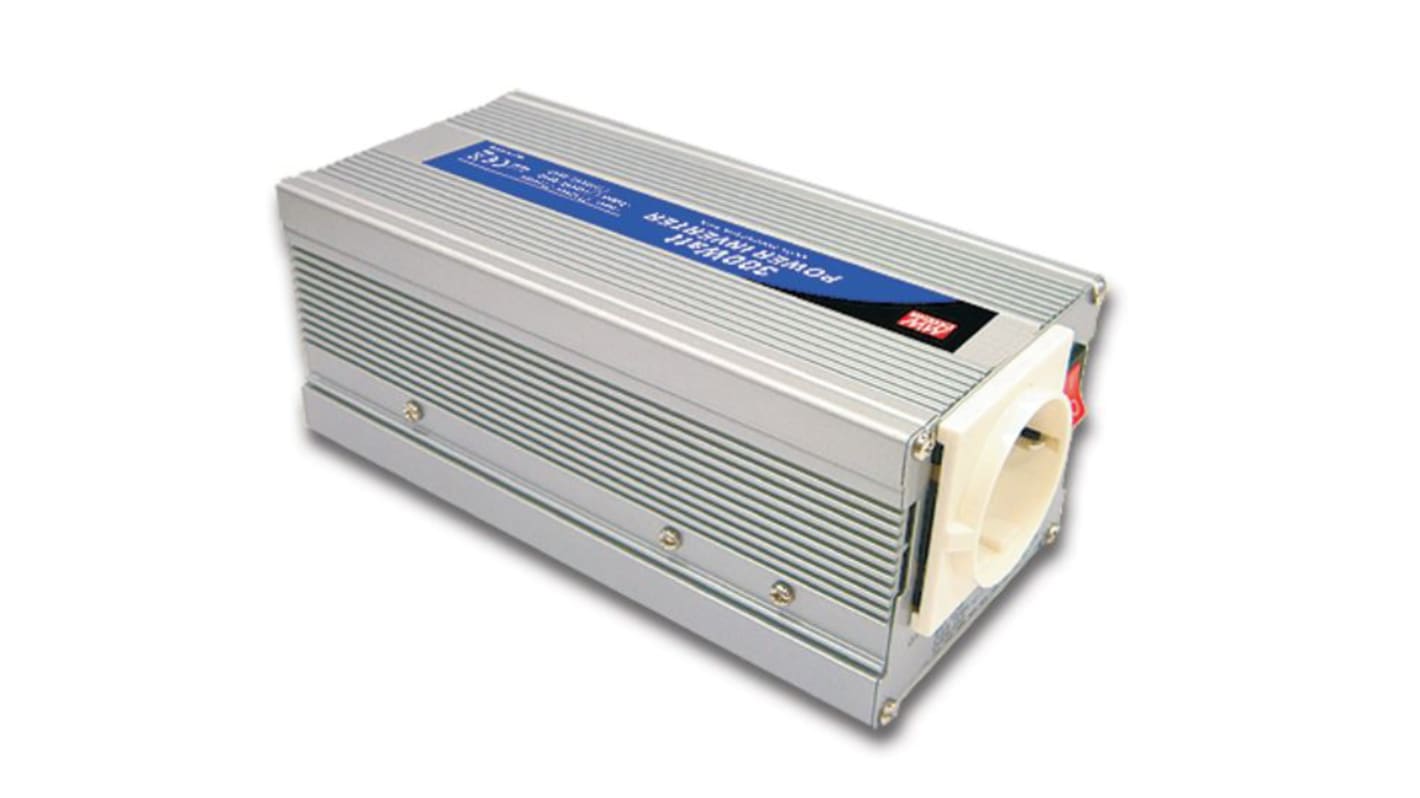

MEAN WELL Modified Sine Wave 300W Power Inverter, 12V dc Input, 230V ac Output
- RS Stock No.:
- 174-8092
- Mfr. Part No.:
- A301-300-F6
- Brand:
- MEAN WELL
Available to back order for despatch 04/11/2024
Added
Price Each
£35.17
(exc. VAT)
£42.20
(inc. VAT)
| Units | Per unit |
| 1 + | £35.17 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 174-8092
- Mfr. Part No.:
- A301-300-F6
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Mean Well Fixed Installation DC-AC Power Inverter
The Mean Well fixed installation DC/AC inverter is a quality power inverter. It comes with a green LED for power on and a red LED to signify power failure status. Its high efficiency ensures high MTBF. The inverter comes with a screw mount and uses a cigarette plug type of connector.
Features and Benefits
• 12VDC input voltage
• Continuous output power 300W
• Cooling fan ON-OFF control
• Input voltage range between -15% and 25%
• Microprocessor topology
• Modified sine wave output waveform
• Output voltage regulation is ±10%
• Power ON-OFF switch
• Continuous output power 300W
• Cooling fan ON-OFF control
• Input voltage range between -15% and 25%
• Microprocessor topology
• Modified sine wave output waveform
• Output voltage regulation is ±10%
• Power ON-OFF switch
Applications
• Home appliance
• Office and portable equipment
• Power tools
• Vehicle
• Office and portable equipment
• Power tools
• Vehicle
Certifications
• CE certified
• CEE certified
• EN55022 class B
• EN60950
• EN61000-4-2,3
• CEE certified
• EN55022 class B
• EN60950
• EN61000-4-2,3
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 12V dc |
| Output Voltage | 230V ac |
| Output Power Continuous | 300W |
| Output Power Waveform | Modified Sine Wave |
| Output Connection Type | British 3-pin |
| Efficiency | 82% |
| MTBF | 200kh |
| Output Current | 1.3A |
| Length | 165mm |
| Width | 88mm |
| Depth | 74mm |
| Minimum Temperature | 0°C |
| Maximum Input Current | 35A dc |
| Mounting Type | Screw Mount |
| Inverter Directionality | DC to AC |
| Output Frequency Range | 50Hz |
| Number of Output Connections | 1 |
| Maximum Temperature | +40°C |
