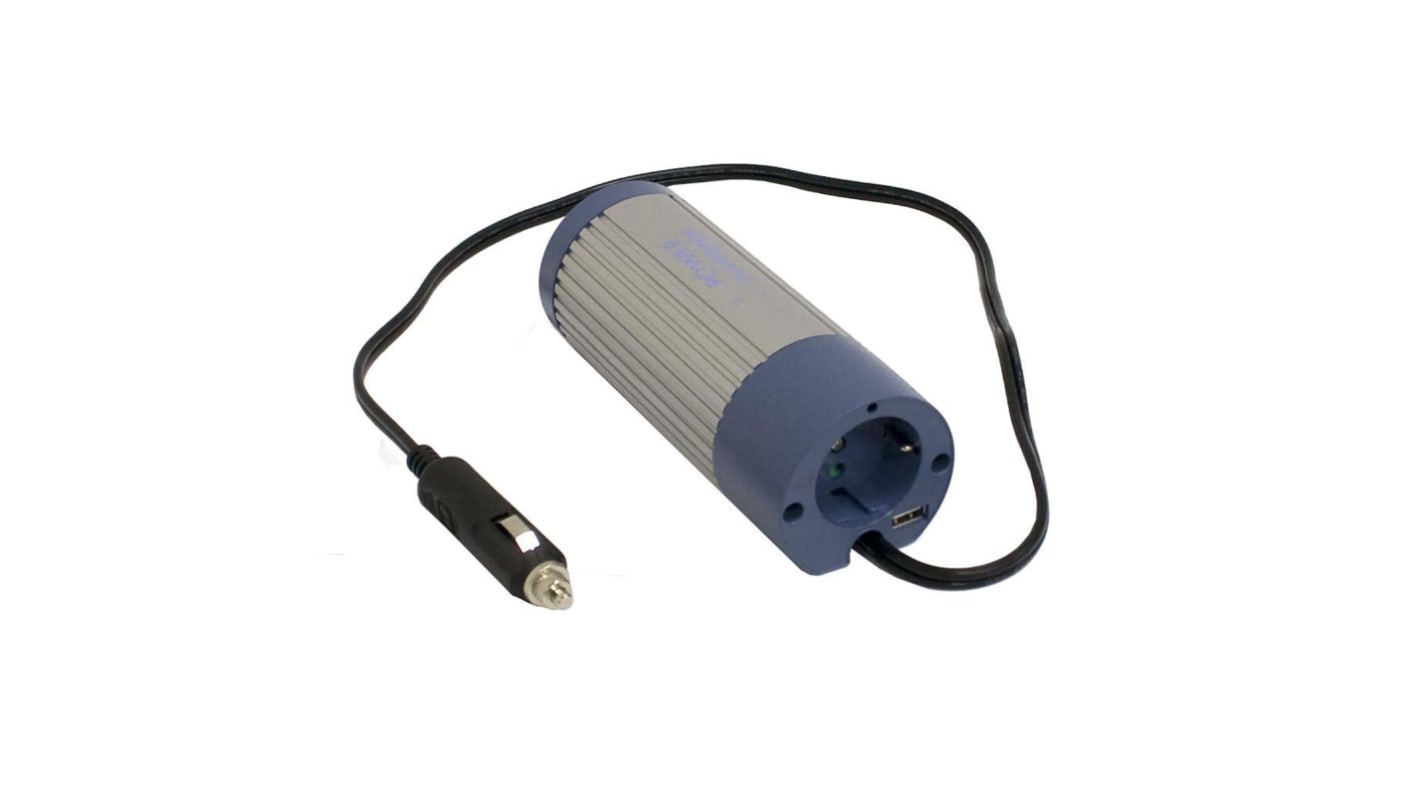

MEAN WELL 100W Power Inverter, 10V dc, 15 V dc Input, 230V Output
- RS Stock No.:
- 174-8080
- Distrelec Article No.:
- 302-96-327
- Mfr. Part No.:
- A301-100-F3
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£42.58
(exc. VAT)
£51.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 30 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.58 |
*price indicative
- RS Stock No.:
- 174-8080
- Distrelec Article No.:
- 302-96-327
- Mfr. Part No.:
- A301-100-F3
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Power Inverter | |
| Input Voltage | 10, 15V dc | |
| Output Voltage | 230V | |
| Output Power | 100W | |
| Output Connector Type | Cigarette Plug | |
| Efficiency | 90% | |
| Number of Outputs | 1 | |
| Output Current | 15A | |
| Maximum Operating Temperature | 40°C | |
| Weight | 550g | |
| Depth | 60mm | |
| Standards/Approvals | EN55022 Class B, 72/245/CEE, 2006/96/CE, EN60950-1, EN61000-4-2 | |
| Series | A30 | |
| Length | 170mm | |
| Width | 65mm | |
| Minimum Operating Temperature | 0°C | |
| Protection Features | Output Short, Shut Off, Overtemperature, Over Voltage, Reverse Polarity, By Fuse Open, Bat. Low Shutdown | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Power Inverter | ||
Input Voltage 10, 15V dc | ||
Output Voltage 230V | ||
Output Power 100W | ||
Output Connector Type Cigarette Plug | ||
Efficiency 90% | ||
Number of Outputs 1 | ||
Output Current 15A | ||
Maximum Operating Temperature 40°C | ||
Weight 550g | ||
Depth 60mm | ||
Standards/Approvals EN55022 Class B, 72/245/CEE, 2006/96/CE, EN60950-1, EN61000-4-2 | ||
Series A30 | ||
Length 170mm | ||
Width 65mm | ||
Minimum Operating Temperature 0°C | ||
Protection Features Output Short, Shut Off, Overtemperature, Over Voltage, Reverse Polarity, By Fuse Open, Bat. Low Shutdown | ||
- COO (Country of Origin):
- CN
Build-in USB inferface
Cooling by free air convection (without fan)
Slim size can fit in with the cup holder on vehicles
High efficiency up to 90%
12V or 24V DC input
Input voltage range: -15% ∼ +25%
Output voltage regulation:±10%
Protections: Input reverse polarity Bat. Low shutdown/Over voltage/Over load/Over temperature/Over short
Output waveform: Modified sine wave
Topology: Microprocessor
1 year warranty
