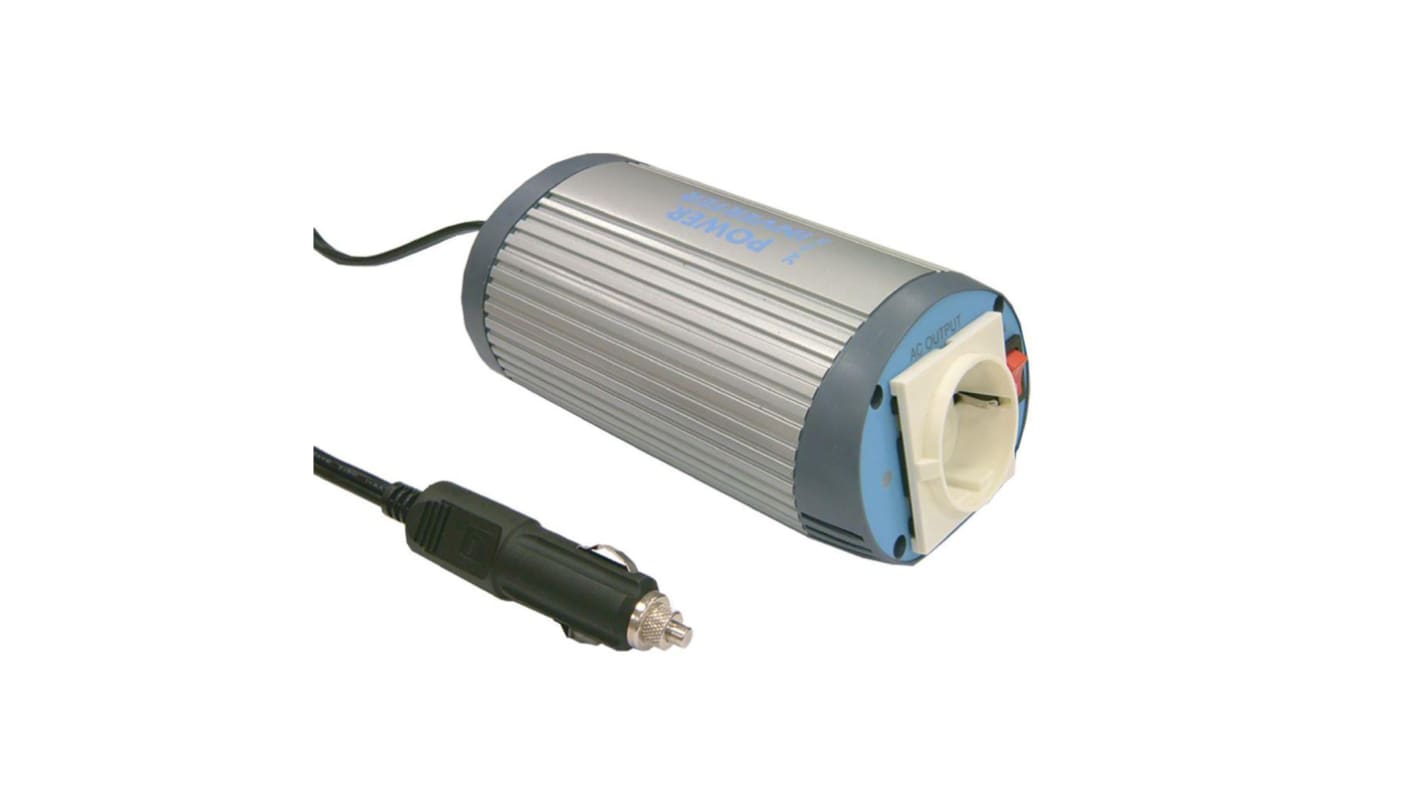

MEAN WELL Screw 150W Power Inverter, 12V dc Input, 230V ac Output
- RS Stock No.:
- 174-8082
- Distrelec Article No.:
- 302-96-328
- Mfr. Part No.:
- A301-150-F3
- Brand:
- MEAN WELL
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£51.19
(exc. VAT)
£61.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 51 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £51.19 |
| 5 - 9 | £49.65 |
| 10 - 24 | £48.12 |
| 25 - 49 | £46.58 |
| 50 + | £45.04 |
*price indicative
- RS Stock No.:
- 174-8082
- Distrelec Article No.:
- 302-96-328
- Mfr. Part No.:
- A301-150-F3
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Power Inverter | |
| Input Voltage | 12V dc | |
| Output Voltage | 230V ac | |
| Output Power | 150W | |
| Output Connector Type | Schuko Socket | |
| Efficiency | 78% | |
| MTBF | 200kH | |
| Output Current | 650mA | |
| Maximum Operating Temperature | 40°C | |
| Series | A301-100 | |
| Standards/Approvals | CE | |
| Depth | 69mm | |
| Length | 165mm | |
| Width | 69mm | |
| Minimum Operating Temperature | 0°C | |
| Protection Features | Reverse Polarity Protection | |
| Mount Type | Screw | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Power Inverter | ||
Input Voltage 12V dc | ||
Output Voltage 230V ac | ||
Output Power 150W | ||
Output Connector Type Schuko Socket | ||
Efficiency 78% | ||
MTBF 200kH | ||
Output Current 650mA | ||
Maximum Operating Temperature 40°C | ||
Series A301-100 | ||
Standards/Approvals CE | ||
Depth 69mm | ||
Length 165mm | ||
Width 69mm | ||
Minimum Operating Temperature 0°C | ||
Protection Features Reverse Polarity Protection | ||
Mount Type Screw | ||
12V or 24V DC input
Power ON-OFF switch
Input voltage range: -15% ∼ +25%
Output voltage regulation:±10%
Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/Over temp./Over short/Input polarity reverse/Over load.
Output waveform: Modified sine wave
Topology: Microprocessor
1 year warranty
DC-AC Modified sine wave inverter 150W, Input 12Vdc,Output 230Vac, ON/OFF switch
