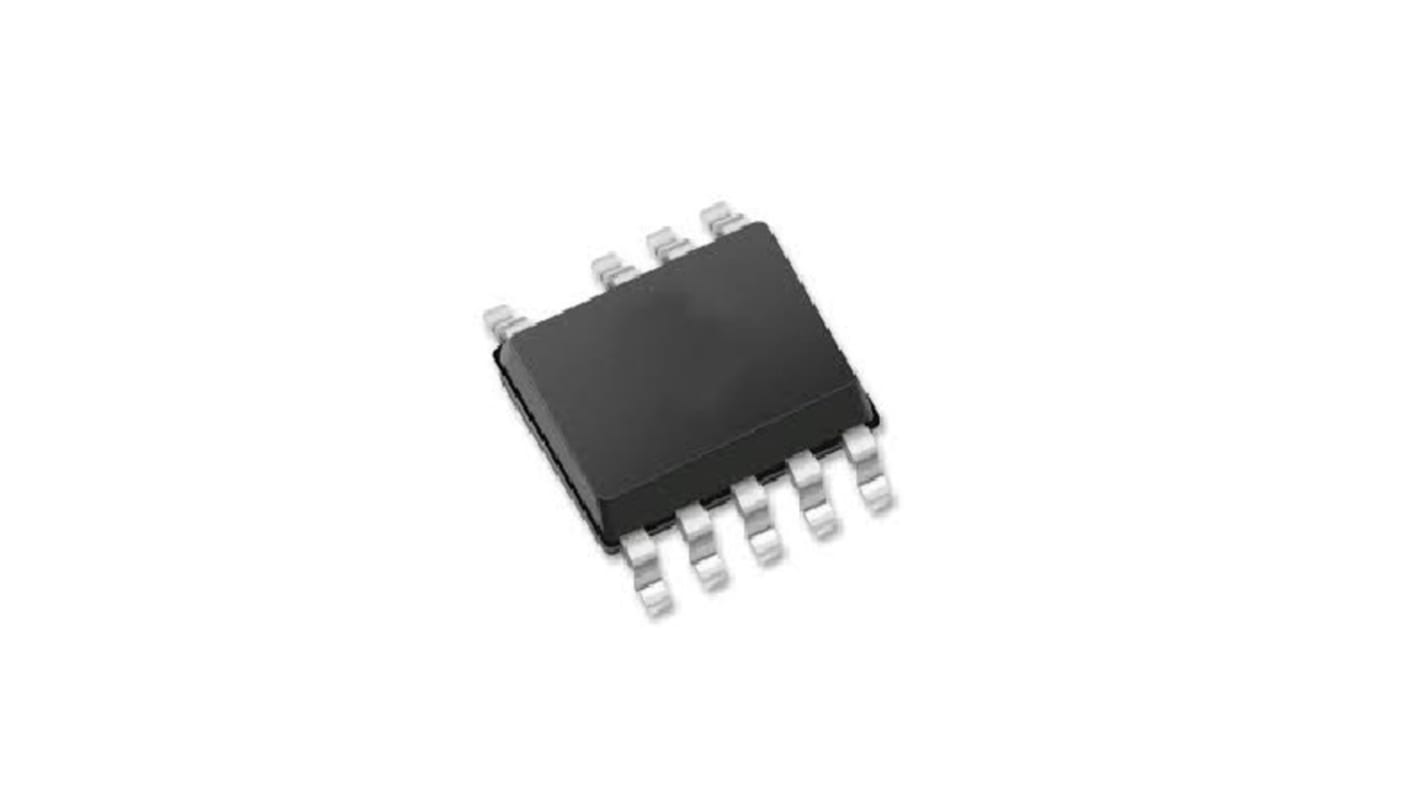

onsemi NCP1655ADR2G, PFC Controller, 130 kHz, 35 V 9-Pin, SOIC
- RS Stock No.:
- 221-6627
- Mfr. Part No.:
- NCP1655ADR2G
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 221-6627
- Mfr. Part No.:
- NCP1655ADR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 130 kHz | |
| IC Type | Power Factor Correction IC | |
| Maximum Source Current | 500mA | |
| Maximum Sink Current | 800mA | |
| Maximum Supply Current | 4 mA | |
| Package Type | SOIC | |
| Pin Count | 9 | |
| Maximum Operating Supply Voltage | 35 V | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 130 kHz | ||
IC Type Power Factor Correction IC | ||
Maximum Source Current 500mA | ||
Maximum Sink Current 800mA | ||
Maximum Supply Current 4 mA | ||
Package Type SOIC | ||
Pin Count 9 | ||
Maximum Operating Supply Voltage 35 V | ||
The ON Semiconductor NCP1655 is an innovative multimode power factor controller. The circuit naturally transitions from one operation mode to another depending the switching period duration so that the efficiency is optimized over the line/load range. In very−light−load conditions, the circuit can enter the soft−SKIP mode for minimized losses.
Fast line / load transient compensation (Dynamic Response Enhancer)
Large VCC operating range (9.5 V to 35 V)
Line range detection
Large VCC operating range (9.5 V to 35 V)
Line range detection
