Schneider Electric Power Factor Correction Capacitor PFC 17 kvar 20.4 kvar 3
- RS Stock No.:
- 211-2691
- Mfr. Part No.:
- BLRCH170A204B48
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£107.13
(exc. VAT)
£128.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £107.13 |
*price indicative
- RS Stock No.:
- 211-2691
- Mfr. Part No.:
- BLRCH170A204B48
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Factor Correction Capacitor PFC | |
| Rated DC Voltage | 415V dc | |
| Dielectric | Special Resistivity & Profile, Metallised Polypropylene Film with Zn/Al alloy | |
| Weight | 1.6kg | |
| Standards/Approvals | IEC 60831-2, IEC 60831-1 | |
| Diameter | 90mm | |
| Number of Phases | 3 | |
| Series | VarplusCan | |
| Width | 70mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Height | 242mm | |
| Length | 250mm | |
| kVAr 50Hz | 17kvar | |
| kVAr 60Hz | 20.4kvar | |
| Tolerance | -5 to 10 % | |
| Terminal Type | Clamp Terminal | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Factor Correction Capacitor PFC | ||
Rated DC Voltage 415V dc | ||
Dielectric Special Resistivity & Profile, Metallised Polypropylene Film with Zn/Al alloy | ||
Weight 1.6kg | ||
Standards/Approvals IEC 60831-2, IEC 60831-1 | ||
Diameter 90mm | ||
Number of Phases 3 | ||
Series VarplusCan | ||
Width 70mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Height 242mm | ||
Length 250mm | ||
kVAr 50Hz 17kvar | ||
kVAr 60Hz 20.4kvar | ||
Tolerance -5 to 10 % | ||
Terminal Type Clamp Terminal | ||
- COO (Country of Origin):
- IN

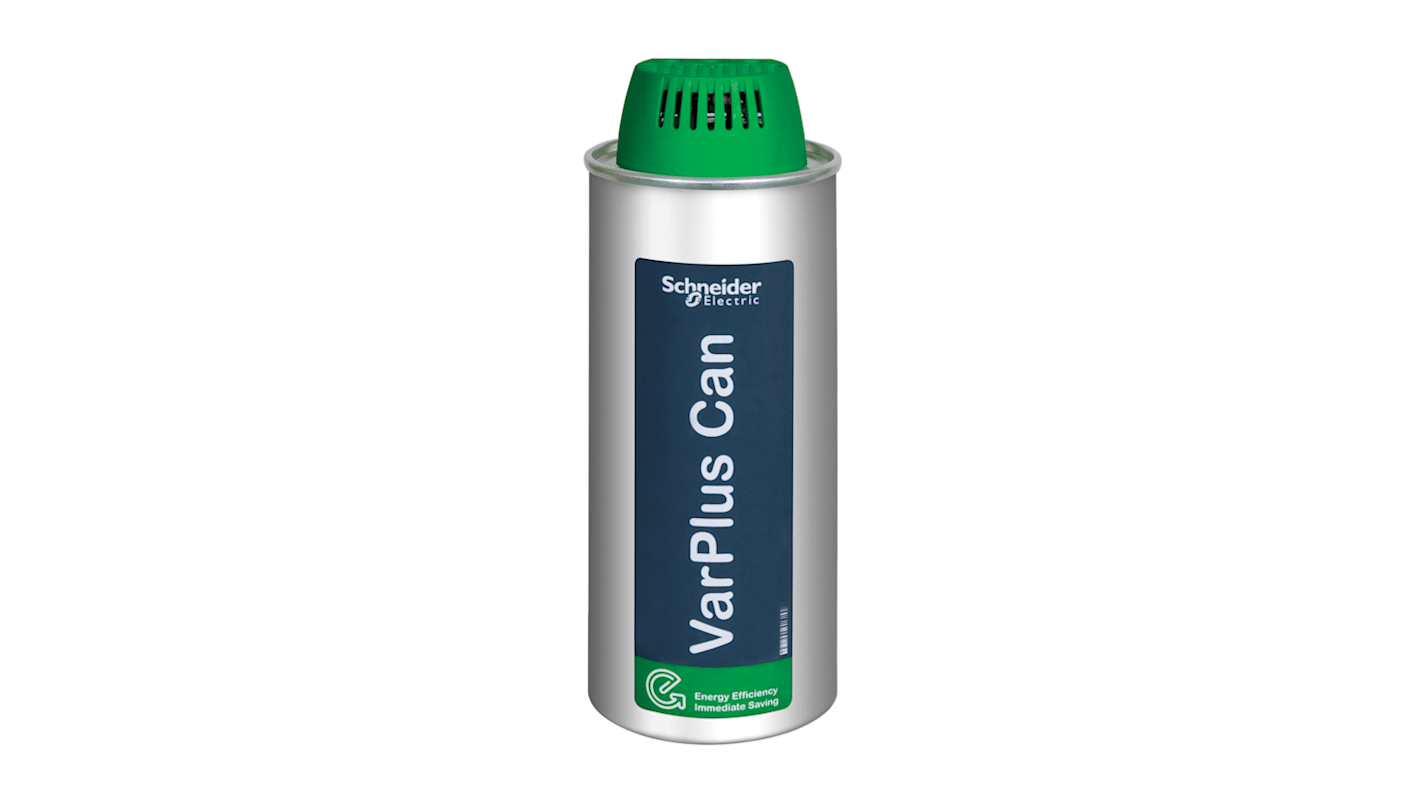

The Schneider Electric VarPlus Can capacitors are constructed internally with single-phase capacitor elements. Each capacitor element is manufactured with metallized polypropylene film as the dielectric, having features such as heavy edge, slope metallization and wave-cut profile to ensure increased current handling capacity and reduced temperature rise. Sticky resin which give good thermal conductivity and mechanical stability allows the capacitor to carry higher overloads.
Saving in panel space due to compact design and higher kvar range
High Performance & Long life
High over current handling
Unique disconnection system and in-built discharge device
Flexibility in installation - upright and horizontal
