Schneider Electric Power Factor Correction Capacitor PFC 6.3 kvar 7.5 kvar 3
- RS Stock No.:
- 211-2684
- Mfr. Part No.:
- BLRCH063A075B40
- Brand:
- Schneider Electric
Subtotal (1 pack of 3 units)*
£115.059
(exc. VAT)
£138.072
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 + | £38.353 | £115.06 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-2684
- Mfr. Part No.:
- BLRCH063A075B40
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Factor Correction Capacitor PFC | |
| Rated DC Voltage | 415V dc | |
| Weight | 0.9kg | |
| Standards/Approvals | IEC 60831-2 IEC 60831-1 | |
| Diameter | 63mm | |
| Mount Type | Horizontal and Vertical Mount | |
| Series | VarplusCan | |
| Number of Phases | 3 | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | -25°C | |
| Width | 70mm | |
| kVAr 50Hz | 6.3kvar | |
| Length | 250mm | |
| Better World Product | Yes | |
| kVAr 60Hz | 7.5kvar | |
| Height | 245mm | |
| Tolerance | 5 to 10 % | |
| Terminal Type | Double FASTON | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Factor Correction Capacitor PFC | ||
Rated DC Voltage 415V dc | ||
Weight 0.9kg | ||
Standards/Approvals IEC 60831-2 IEC 60831-1 | ||
Diameter 63mm | ||
Mount Type Horizontal and Vertical Mount | ||
Series VarplusCan | ||
Number of Phases 3 | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature -25°C | ||
Width 70mm | ||
kVAr 50Hz 6.3kvar | ||
Length 250mm | ||
Better World Product Yes | ||
kVAr 60Hz 7.5kvar | ||
Height 245mm | ||
Tolerance 5 to 10 % | ||
Terminal Type Double FASTON | ||
- COO (Country of Origin):
- IN

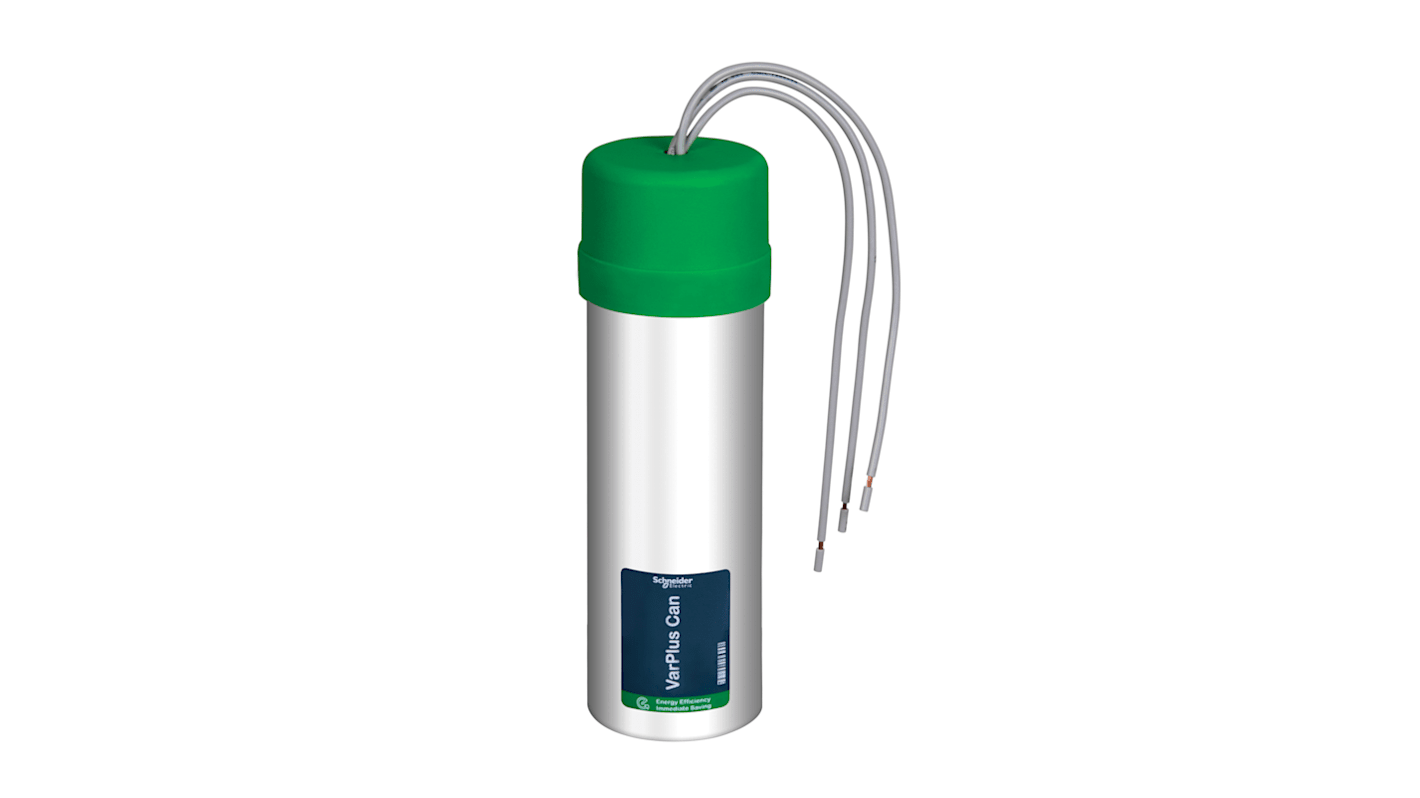

The Schneider Electric VarPlus Can capacitors are constructed internally with single-phase capacitor elements. Each capacitor element is manufactured with metallized polypropylene film as the dielectric, having features such as heavy edge, slope metallization and wave-cut profile to ensure increased current handling capacity and reduced temperature rise. Sticky resin which give good thermal conductivity and mechanical stability allows the capacitor to carry higher overloads.
Saving in panel space due to compact design and higher kvar range
High Performance & Long life
High over current handling
Unique disconnection system and in-built discharge device
Flexibility in installation - upright and horizontal
