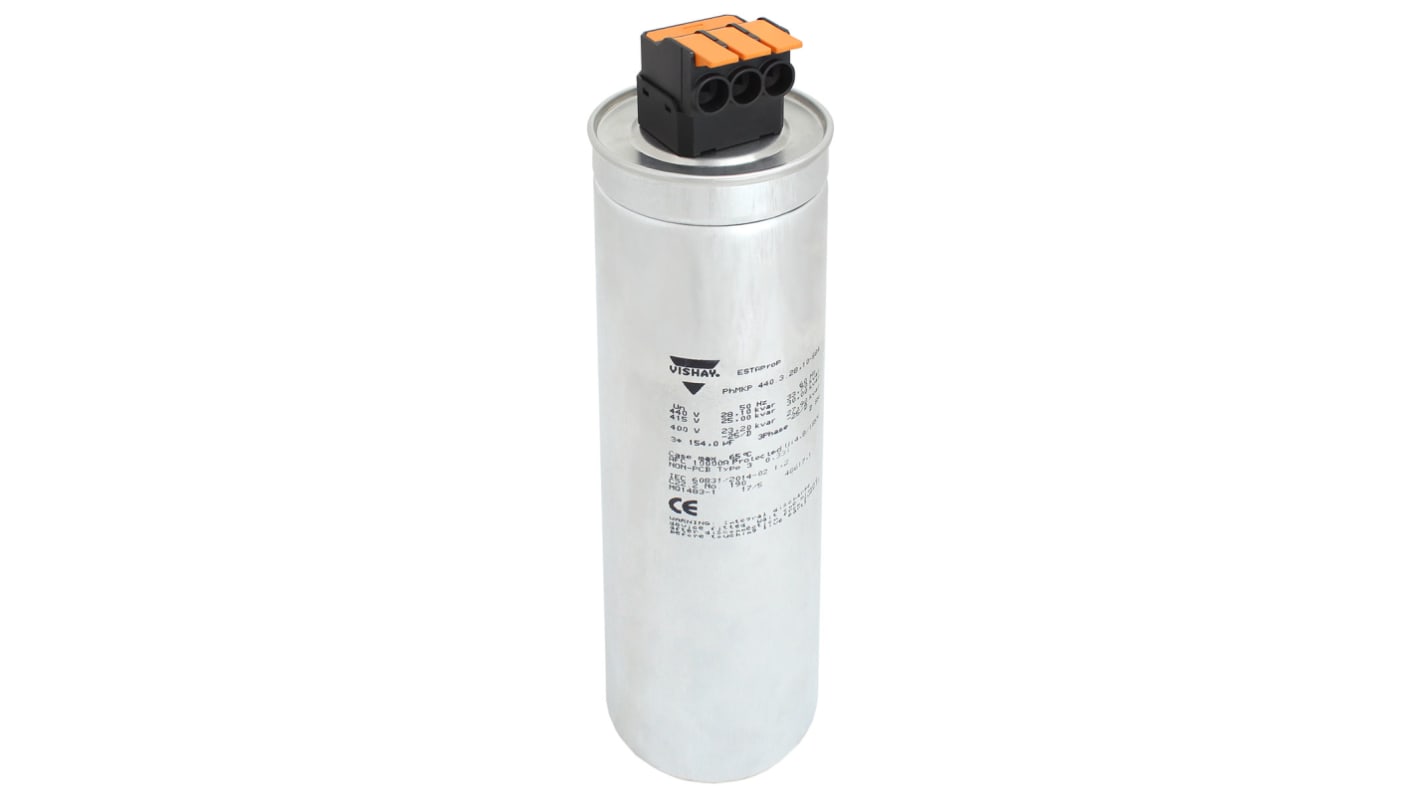

Vishay Power Factor Correction Capacitor 132.6 μF 20 kvar 21.5 kvar 3
- RS Stock No.:
- 187-5379
- Distrelec Article No.:
- 302-13-269
- Mfr. Part No.:
- PhMKP400.3.20,00-S84
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£171.19
(exc. VAT)
£205.43
(inc. VAT)
- RS Stock No.:
- 187-5379
- Distrelec Article No.:
- 302-13-269
- Mfr. Part No.:
- PhMKP400.3.20,00-S84
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 400V ac | |
| Dielectric | Polypropylene | |
| Standards/Approvals | IEC 61249-2-21, EN 60831- 1 + 2, IEC 60831-1 + 2, UL/ULC - FILE E97723, ESTA LVAC, UL 810 | |
| Weight | 1.7kg | |
| Width | 88.2mm | |
| Mount Type | Stud Mount | |
| Tolerance | 5 % | |
| kVAr 60Hz | 21.5kvar | |
| Capacitance | 132.6μF | |
| Height | 265mm | |
| Maximum Operating Temperature | 65°C | |
| Length | 265mm | |
| kVAr 50Hz | 20kvar | |
| Number of Phases | 3 | |
| Series | PHMKP | |
| Minimum Operating Temperature | 65°C | |
| Terminal Type | Screw | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 400V ac | ||
Dielectric Polypropylene | ||
Standards/Approvals IEC 61249-2-21, EN 60831- 1 + 2, IEC 60831-1 + 2, UL/ULC - FILE E97723, ESTA LVAC, UL 810 | ||
Weight 1.7kg | ||
Width 88.2mm | ||
Mount Type Stud Mount | ||
Tolerance 5 % | ||
kVAr 60Hz 21.5kvar | ||
Capacitance 132.6μF | ||
Height 265mm | ||
Maximum Operating Temperature 65°C | ||
Length 265mm | ||
kVAr 50Hz 20kvar | ||
Number of Phases 3 | ||
Series PHMKP | ||
Minimum Operating Temperature 65°C | ||
Terminal Type Screw | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
LVAC Power Capacitors Terminal Block With Spring Connection
Maintenance free
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
APPLICATIONS
Wind power plants
Solar panels and inverters
Thermal power station
