TE Connectivity C-Lite 0.5 mm² 2 Core Power Cable, Black Low Smoke Zero Halogen (LSZH), 50m
- RS Stock No.:
- 914-4196
- Mfr. Part No.:
- CL105-2GX0.50-SO-0(50)
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 914-4196
- Mfr. Part No.:
- CL105-2GX0.50-SO-0(50)
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 2 | |
| Sheath Colour | Black | |
| Length | 50m | |
| Outer Diameter | 5.3mm | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Voltage Rating | 600 V | |
| Conductor Material | Copper | |
| Conductor Resistance | 40.1 Ω/km | |
| Minimum Operating Temperature | -40°C | |
| Cable Shape | Multicore | |
| American Wire Gauge | 20 AWG | |
| Series | C-Lite | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Maximum Operating Temperature | +120°C | |
| Insulation Material | LSZH | |
| Core Strands | 19/0.18 mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 2 | ||
Sheath Colour Black | ||
Length 50m | ||
Outer Diameter 5.3mm | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Voltage Rating 600 V | ||
Conductor Material Copper | ||
Conductor Resistance 40.1 Ω/km | ||
Minimum Operating Temperature -40°C | ||
Cable Shape Multicore | ||
American Wire Gauge 20 AWG | ||
Series C-Lite | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Maximum Operating Temperature +120°C | ||
Insulation Material LSZH | ||
Core Strands 19/0.18 mm | ||

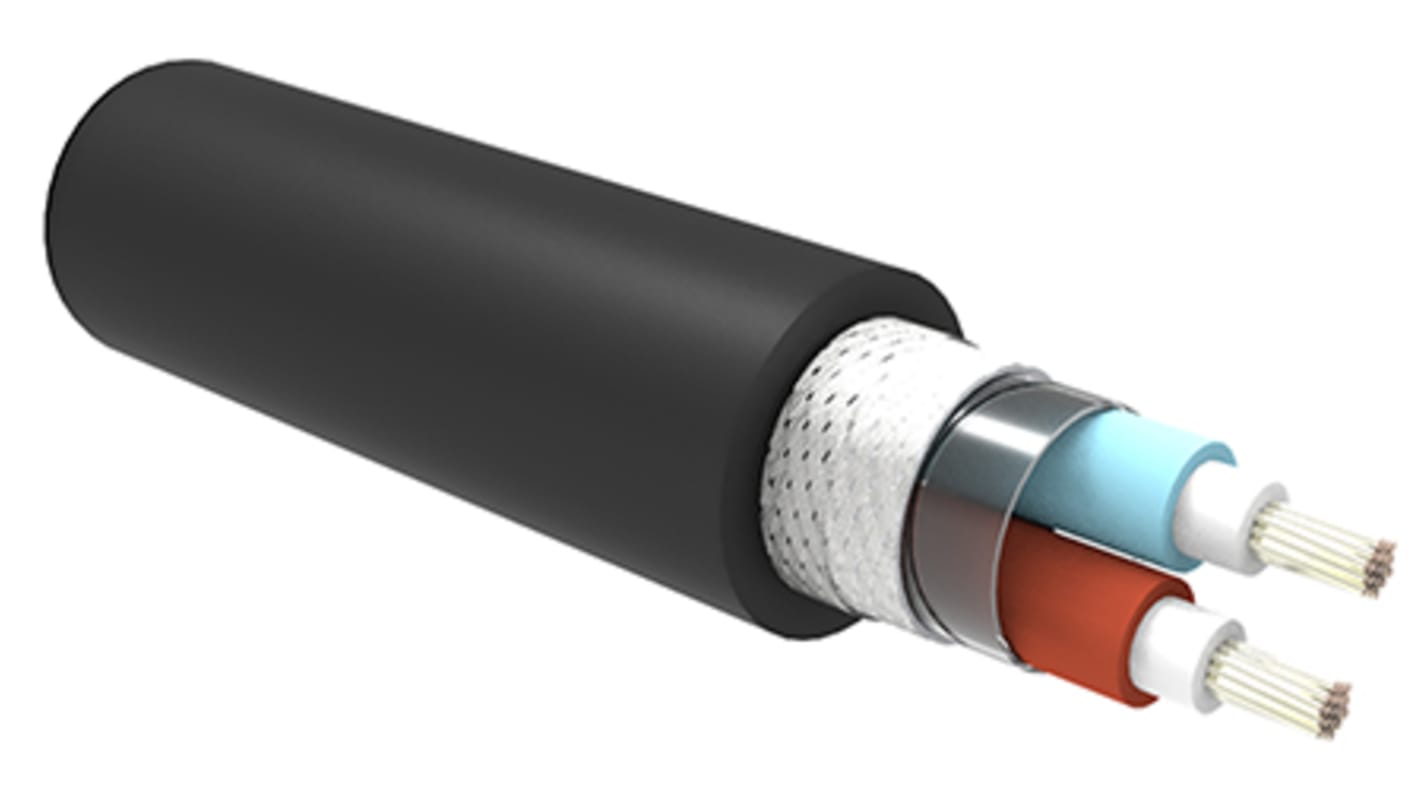

TE Connectivity Screened C-Lite Marine Cable
TE Connectivity screened C-Lite marine cable use advanced thin-wall insulation and jacket technology to reduce the size and weight of cables, without reducing the electrical or mechanical properties. C-Lite cables offer excellent resistance to oils, solvents, fuels, petroleum and mud for use in demanding marine environments such as oil rigs.
Features and Benefits
Excellent substance resistance
Overall braid screen
Zerohal jacket
Lightweight
Stranded conductors for flexibility
Metre marked
Marine Cable
