RS PRO 3183Y 4 mm² 3 Core Power Cable, H05VV-F, Grey PVC, 100m
- RS Stock No.:
- 811-4380
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
£504.28
(exc. VAT)
£605.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 - 4 | £504.28 | £5.043 |
5 - 9 | £479.06 | £4.791 |
10 - 19 | £453.85 | £4.539 |
20 + | £428.64 | £4.286 |
*price indicative
- RS Stock No.:
- 811-4380
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 4 mm² | |
Number of Cores | 3 | |
Sheath Colour | Grey | |
Length | 100m | |
Cable Type | 3183Y | |
Current Rating | 25 A | |
Sheath Material | PVC | |
Outer Diameter | 11.8mm | |
Voltage Rating | 300 V | |
European Harmonised Code | H05VV-F | |
Conductor Strand Type | Stranded | |
Standards Met | BS EN 50525 | |
Minimum Operating Temperature | -50°C | |
Number of Strands | 56 | |
Conductor Material | Copper | |
Maximum Operating Temperature | +70°C | |
Size of Strands | 0.3 mm | |
Core Strands | 56/0.3 mm | |
Insulation Material | PVC Type TI1 to BS7655 | |
American Wire Gauge | 11 AWG | |
Conductor Resistance | 4.95 Ω/km | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 4 mm² | ||
Number of Cores 3 | ||
Sheath Colour Grey | ||
Length 100m | ||
Cable Type 3183Y | ||
Current Rating 25 A | ||
Sheath Material PVC | ||
Outer Diameter 11.8mm | ||
Voltage Rating 300 V | ||
European Harmonised Code H05VV-F | ||
Conductor Strand Type Stranded | ||
Standards Met BS EN 50525 | ||
Minimum Operating Temperature -50°C | ||
Number of Strands 56 | ||
Conductor Material Copper | ||
Maximum Operating Temperature +70°C | ||
Size of Strands 0.3 mm | ||
Core Strands 56/0.3 mm | ||
Insulation Material PVC Type TI1 to BS7655 | ||
American Wire Gauge 11 AWG | ||
Conductor Resistance 4.95 Ω/km | ||
- COO (Country of Origin):
- GB
RS PRO BASEC Approved H05VV-F Harmonised Flexible PVC Insulated Mains Cable
From RS PRO a high-quality BASEC approved medium duty H05VV-F harmonised flexible mains power cable with PVC insulation and a PVC jacket. This flexible cable has a voltage rating of 300 to 500 V and is designed for use in medium duty domestic and office applications.
What is Mains Cable?
A mains power cable connects an appliance to a mains electricity supply through the use of a wall socket or an extension lead which will then be plugged into a mains supply.

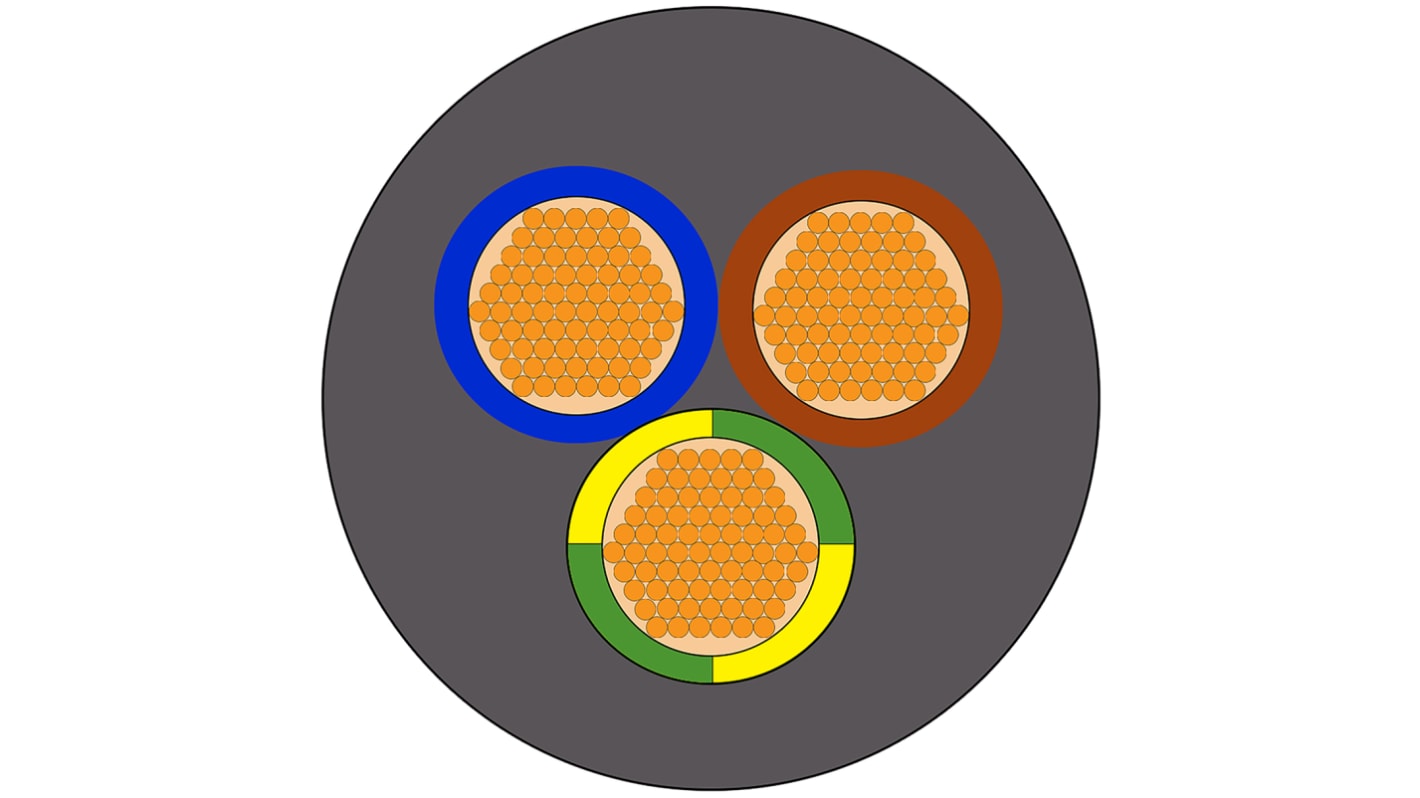

Cable Construction
This flexible electrical power cable consists cores made up of fine stranded copper conductors or wires. Each individual core is surrounded by colour coded PVC (Polyvinyl Chloride) insulation for easy identification of the wires. All the cores are then surrounded by a final outer layer of PVC called a sheath or jacket.
What is BASEC Approval?
BASEC is an independent accredited certification body for the cable industry worldwide which provides an approvals service for cables. BASEC conducts rigorous, high-quality testing across a range of sectors that supply and install cable. These tests meet all the relevant standards and regulations ensuring the cables supplied are safe to use and of the highest quality.
What Does H05VV-F Mean?
H05VV-F mains power cable (also known as 318-Y cable) is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality across Europe to ensure the trade of common standard product.
H05VV-F is the code for this harmonised power cable which breaks down into the following:
H = Harmonised
05 = 300V / 500V voltage rating
V = PVC insulation
V = PVC sheath
F = Flexible copper conductors
05 = 300V / 500V voltage rating
V = PVC insulation
V = PVC sheath
F = Flexible copper conductors
Benefits of PVC Insulated Mains Cable
The PVC insulation and sheath of this mains power cable has the following properties:
Low cost
Excellent insulation properties
Flexible
Stable, robust and durable
Oil resistant
Excellent insulation properties
Flexible
Stable, robust and durable
Oil resistant
Where are These Cables Used?
PVC insulated mains cables are used for medium duty wiring in domestic, kitchen and office premises. This electrical mains cable should be used for wiring appliances that are indoors or in a covered, dry or humid area and is best used where the potential for mechanical stresses and mechanical damage is low. This cable can only be used with cooking and heating equipment if the cable does not come into direct contact with the hot parts of the equipment or with any other heat source. Applications include washing machines, dishwashers, refrigerators, spin dryers, computer and office equipment.
