RS PRO 2192Y 0.75 mm² 2 Core Power Cable, H03VVH2-F, White PVC, 100m
- RS Stock No.:
- 811-4365
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 811-4365
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.75 mm² | |
Number of Cores | 2 | |
Sheath Colour | White | |
Length | 100m | |
Cable Type | 2192Y | |
Current Rating | 6 A | |
Sheath Material | PVC | |
Outer Diameter | 3.2 x 5.2 → 3.8 x 6.3mm | |
Voltage Rating | 300 V | |
European Harmonised Code | H03VVH2-F | |
Conductor Strand Type | Stranded | |
Size of Strands | 0.2 mm | |
Core Strands | 22/0.2 mm | |
Insulation Material | PVC | |
Standards Met | BS EN 50525 | |
Minimum Operating Temperature | -50°C | |
Number of Strands | 22 | |
American Wire Gauge | 18 AWG | |
Maximum Operating Temperature | +70°C | |
Conductor Resistance | 26 Ω/km | |
Conductor Material | Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75 mm² | ||
Number of Cores 2 | ||
Sheath Colour White | ||
Length 100m | ||
Cable Type 2192Y | ||
Current Rating 6 A | ||
Sheath Material PVC | ||
Outer Diameter 3.2 x 5.2 → 3.8 x 6.3mm | ||
Voltage Rating 300 V | ||
European Harmonised Code H03VVH2-F | ||
Conductor Strand Type Stranded | ||
Size of Strands 0.2 mm | ||
Core Strands 22/0.2 mm | ||
Insulation Material PVC | ||
Standards Met BS EN 50525 | ||
Minimum Operating Temperature -50°C | ||
Number of Strands 22 | ||
American Wire Gauge 18 AWG | ||
Maximum Operating Temperature +70°C | ||
Conductor Resistance 26 Ω/km | ||
Conductor Material Copper | ||
- COO (Country of Origin):
- GB
RS PRO BASEC Approved H03VV-F Harmonised Flexible PVC Insulated Mains Cable
From RS PRO a high-quality BASEC approved light duty harmonised H03VVH2-F flexible mains power cable with PVC insulation and a PVC jacket. This mains cable has a voltage rating of 300 V and is designed for use indoors for wiring in mobile and lightweight household and office applications
What is Mains Cable?
A mains power cable connects an appliance to a mains electricity supply through the use of a wall socket or an extension lead which will then be plugged into a mains supply

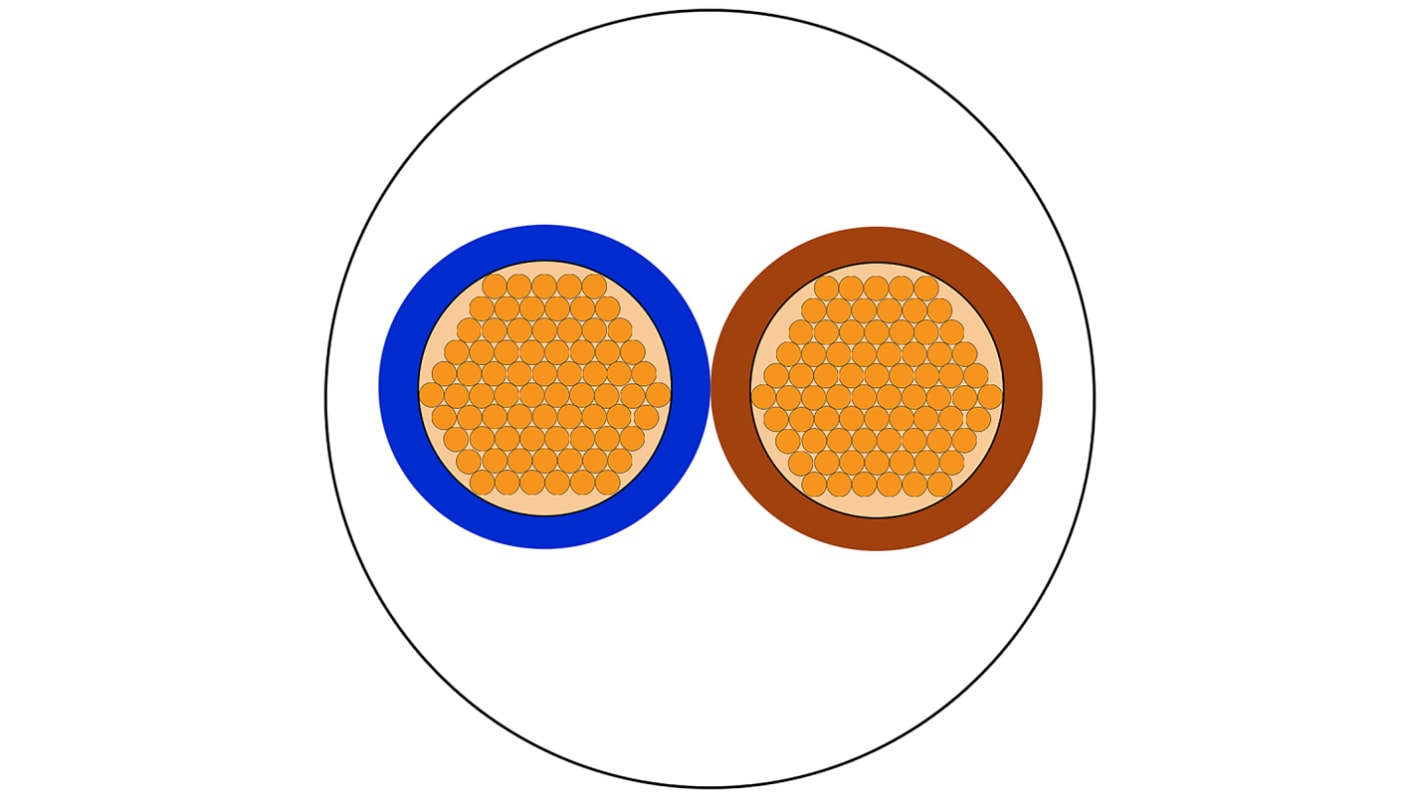

Cable Construction
This flexible power cable consists of cores made up of fine IEC 60228 Class 5 stranded copper conductors or wires. Each individual core is surrounded by colour coded PVC (Polyvinyl Chloride) insulation for easy identification of the wires. Both the cores are then surrounded by a final outer layer of PVC called a sheath or jacket.
What is BASEC Approval?
BASEC is an independent accredited certification body for the cable industry worldwide which provides an approvals service for cables. BASEC conducts rigorous, high-quality testing across a range of sectors that supply and install cable. These tests meet all the relevant standards and regulations ensuring the cables supplied are safe to use and of the highest quality
What Does H03VV-F Mean?
H03VV-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of a common standard product.
H03VV-F is the code for this harmonised cable which breaks down into the following:
H = Harmonised
03 = 300 V voltage rating
V = PVC insulation
V = PVC sheath
F = Flexible copper conductors
H = Harmonised
03 = 300 V voltage rating
V = PVC insulation
V = PVC sheath
F = Flexible copper conductors
Benefits of PVC Insulated Mains Cable
The PVC insulation and sheath of this mains power cable has the following properties
Low cost
Excellent insulation properties
Flexible
Stable, robust and durable
Oil resistant
Low cost
Excellent insulation properties
Flexible
Stable, robust and durable
Oil resistant
Where are These Cables Used?
These PVC flexible cables are designed for use in light duty domestic and office electrical wiring applications and as general supply leads. This cable should be used on appliances that are indoors or in a covered, dry or humid area and is best used where the potential for mechanical stresses and mechanical damage is low. This cable should not be used with electrical cooking or heating apparatus. Applications include portable appliances in office and domestic environments such as table and standard lamps and small electronic appliances
Note
The number of strands used in the construction of the cores is nominal and may vary.
