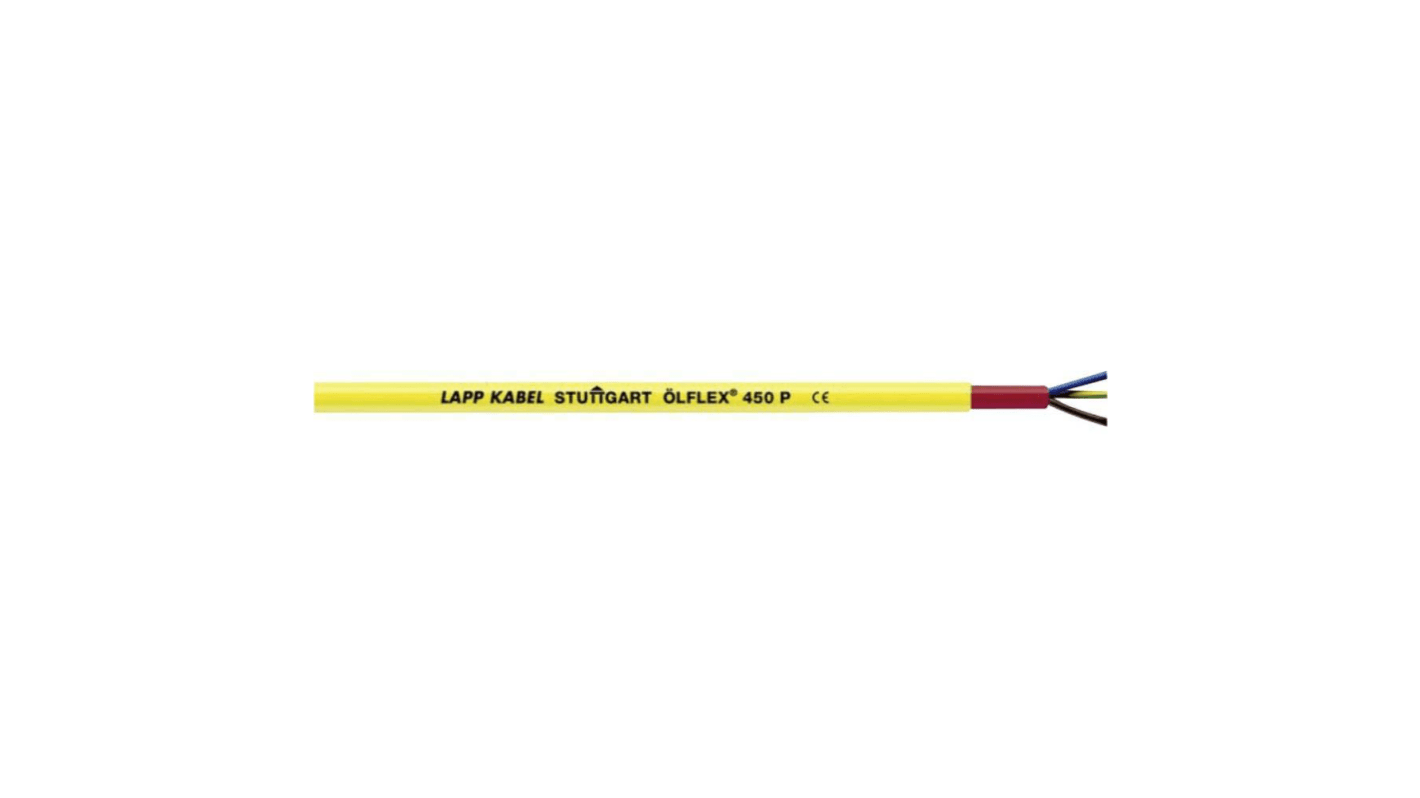

Lapp 3 Core Power Cable, 1.5 mm², 50m, Yellow Polyurethane PUR Sheath, Multicore, 500 V
- RS Stock No.:
- 807-8868
- Mfr. Part No.:
- 0012202
- Brand:
- Lapp
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Reel of 50 Metre(s)
£201.57
(exc. VAT)
£241.88
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £201.57 | £4.031 |
| 5 + | £181.42 | £3.628 |
| *price indicative | ||
- RS Stock No.:
- 807-8868
- Mfr. Part No.:
- 0012202
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
LAPP Power Cable, Resistant to Hydrolysis, Low-Adhesive Surface - ÖLFLEX series - 0012202
Looking for a robust lead to get portable devices such as drills, grinders and jigsaws up and running? Opt for this power cable from LAPP. It has a tough PUR sheath that's resistant to the oil, chemicals and abrasion you'd expect in a challenging industrial workplace. This means you get a long service life. A minimum bending radius of 4 times the cable's 9.3mm diameter means you can be confident it's a flexible solution that's easy to install around corners and obstacles.
Features & Benefits
• Bare copper conductor material provides high conductivity
• Broad operating temperature range between -40°C and +80°C, so it's suitable for challenging environments
• Flame retardant to boost safety
• Twisted cores for reduced EMI
• Broad operating temperature range between -40°C and +80°C, so it's suitable for challenging environments
• Flame retardant to boost safety
• Twisted cores for reduced EMI
Applications
• Energy distribution equipment
• Telecommunications networks
• Transportation systems
• Telecommunications networks
• Transportation systems
How long is this power cable?
It's 50m long, so it has enough reach for large-scale industrial applications.
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 1.5 mm² |
| Number of Cores | 3 |
| Sheath Colour | Yellow |
| Length | 50m |
| Armoured | No |
| Cable Type | Multicore |
| Outer Diameter | 9.3mm |
| Sheath Material | Polyurethane PUR |
| Voltage Rating | 500 V |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| American Wire Gauge | 15 AWG |
| Maximum Operating Temperature | +80°C |
| Conductor Material | Bare Copper |
| Coil Diameter | 9.3mm |
| Series | ÖLFLEX |
| Standards Met | CE |
| Cable Shape | Multicore |
