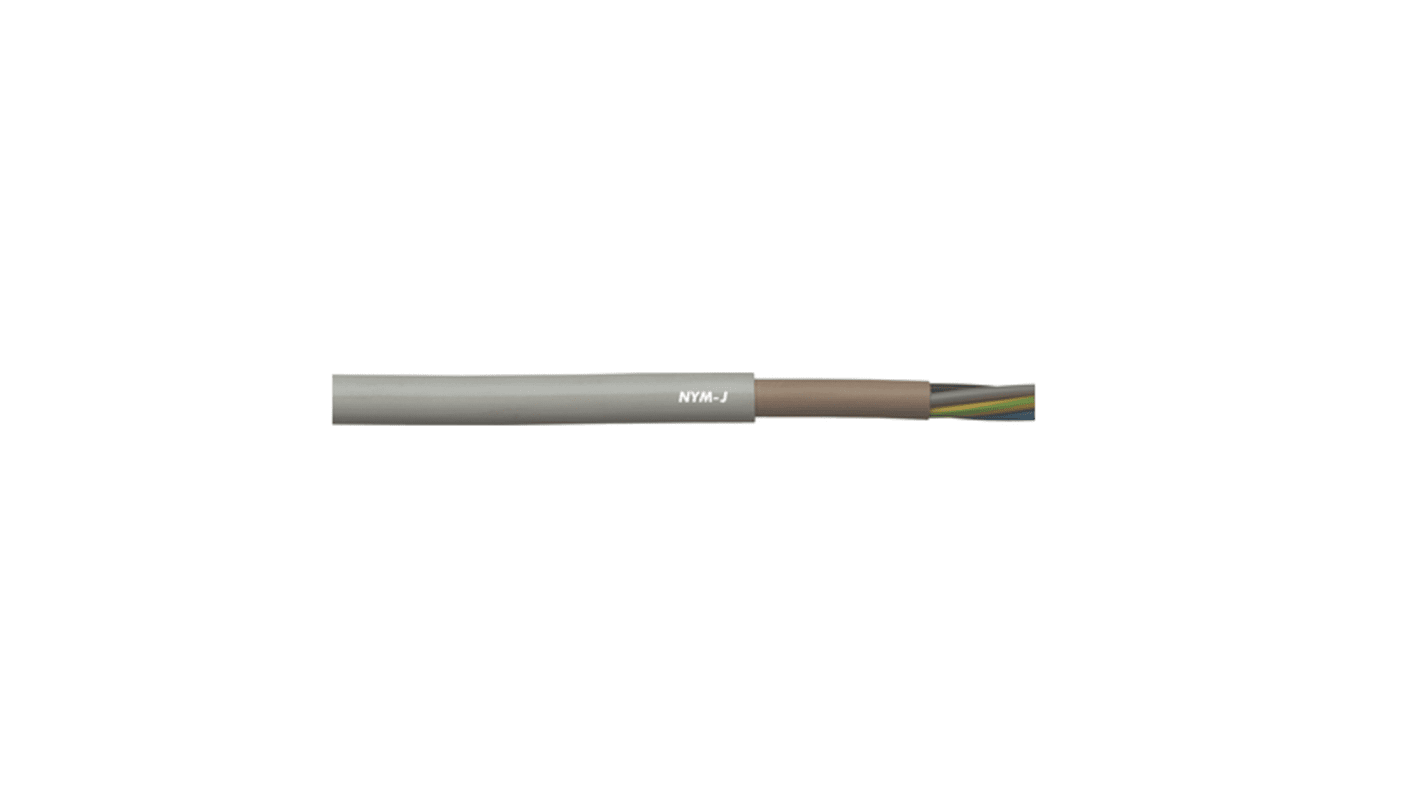

Lapp 5 Core Power Cable, 4 mm², 50m, Grey PVC Sheath, 34 A, 500 V
- RS Stock No.:
- 515-4304
- Mfr. Part No.:
- 16000513
- Brand:
- Lapp
3 In stock - FREE next working day delivery available
Price 1 Reel of 50 Metre(s)
£411.30
(exc. VAT)
£493.56
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £411.30 | £8.226 |
| *price indicative | ||
- RS Stock No.:
- 515-4304
- Mfr. Part No.:
- 16000513
- Brand:
- Lapp
- COO (Country of Origin):
- DE
NYM-J installation cable
From Lapp, this NYM-J cable is a widely-used installation cable that is often found in domestic and commercial electrical wiring. The PVC sheathed cable is designed for use in plaster, brickwork and concrete, and is a common standard in construction and maintenance.
The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.
The cable should not be used in direct embedding in vibrated or compressed concrete.
Features and Benefits
• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing
Applications
NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.
The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.
The cable should not be used in direct embedding in vibrated or compressed concrete.
Features and Benefits
• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing
Applications
NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.
Standards
IEC 60332-1-2, VDE, CE
Lapp NYM-J Series Power Cable, Copper Conductor Material, 50m Length - 16000513
This power cable by Lapp featuring an 11 AWG copper conductor is a reliable solution for various applications. With a flame-retardant design and a cross-sectional area of 4mm², this cable ensures efficient and safe electrical connectivity in both residential and industrial settings.
Features & Benefits
• 34A current rating for high-performance electrical systems
• PVC insulation providing durability and protection
• Grey PVC sheath for added security and visibility
• 500V voltage rating for versatility
• PVC insulation providing durability and protection
• Grey PVC sheath for added security and visibility
• 500V voltage rating for versatility
Applications
• Ideal for use in electrical wiring systems where flame retardancy is crucial
• Can be used for installations requiring high current carrying capacity and durability
• Can be used for installations requiring high current carrying capacity and durability
Can it withstand high temperatures?
Yes, it has a maximum operating temperature of +50°C and a minimum of -40°C.
Will it meet safety regulations?
Yes, it complies with Euroclass Eca standards for fire behavior.
Is it suitable for outdoor use?
Yes, the grey PVC sheath provides protection against external elements.
Attribute | Value |
|---|---|
| Cross Sectional Area | 4 mm² |
| Number of Cores | 5 |
| Sheath Colour | Grey |
| Length | 50m |
| Current Rating | 34 A |
| Sheath Material | PVC |
| Outer Diameter | 14mm |
| CPR Certification | Eca |
| Voltage Rating | 500 V |
| Conductor Strand Type | Solid |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| Conductor Resistance | 4.61 Ω/km |
| American Wire Gauge | 11 AWG |
| Maximum Operating Temperature | +50°C |
| Size of Strands | 2.25 mm |
| Conductor Material | Copper |
| Core Strands | 2.25 mm |
| Series | NYM-J |
| Standards Met | Euroclass Eca |
- RS Stock No.:
- 515-4304
- Mfr. Part No.:
- 16000513
- Brand:
- Lapp
- COO (Country of Origin):
- DE
NYM-J installation cable
From Lapp, this NYM-J cable is a widely-used installation cable that is often found in domestic and commercial electrical wiring. The PVC sheathed cable is designed for use in plaster, brickwork and concrete, and is a common standard in construction and maintenance.
The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.
The cable should not be used in direct embedding in vibrated or compressed concrete.
Features and Benefits
• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing
Applications
NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.
The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.
The cable should not be used in direct embedding in vibrated or compressed concrete.
Features and Benefits
• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing
Applications
NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.
Standards
IEC 60332-1-2, VDE, CE
Lapp NYM-J Series Power Cable, Copper Conductor Material, 50m Length - 16000513
This power cable by Lapp featuring an 11 AWG copper conductor is a reliable solution for various applications. With a flame-retardant design and a cross-sectional area of 4mm², this cable ensures efficient and safe electrical connectivity in both residential and industrial settings.
Features & Benefits
• 34A current rating for high-performance electrical systems
• PVC insulation providing durability and protection
• Grey PVC sheath for added security and visibility
• 500V voltage rating for versatility
• PVC insulation providing durability and protection
• Grey PVC sheath for added security and visibility
• 500V voltage rating for versatility
Applications
• Ideal for use in electrical wiring systems where flame retardancy is crucial
• Can be used for installations requiring high current carrying capacity and durability
• Can be used for installations requiring high current carrying capacity and durability
Can it withstand high temperatures?
Yes, it has a maximum operating temperature of +50°C and a minimum of -40°C.
Will it meet safety regulations?
Yes, it complies with Euroclass Eca standards for fire behavior.
Is it suitable for outdoor use?
Yes, the grey PVC sheath provides protection against external elements.
Attribute | Value |
|---|---|
| Cross Sectional Area | 4 mm² |
| Number of Cores | 5 |
| Sheath Colour | Grey |
| Length | 50m |
| Current Rating | 34 A |
| Sheath Material | PVC |
| Outer Diameter | 14mm |
| CPR Certification | Eca |
| Voltage Rating | 500 V |
| Conductor Strand Type | Solid |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| Conductor Resistance | 4.61 Ω/km |
| American Wire Gauge | 11 AWG |
| Maximum Operating Temperature | +50°C |
| Size of Strands | 2.25 mm |
| Conductor Material | Copper |
| Core Strands | 2.25 mm |
| Series | NYM-J |
| Standards Met | Euroclass Eca |
