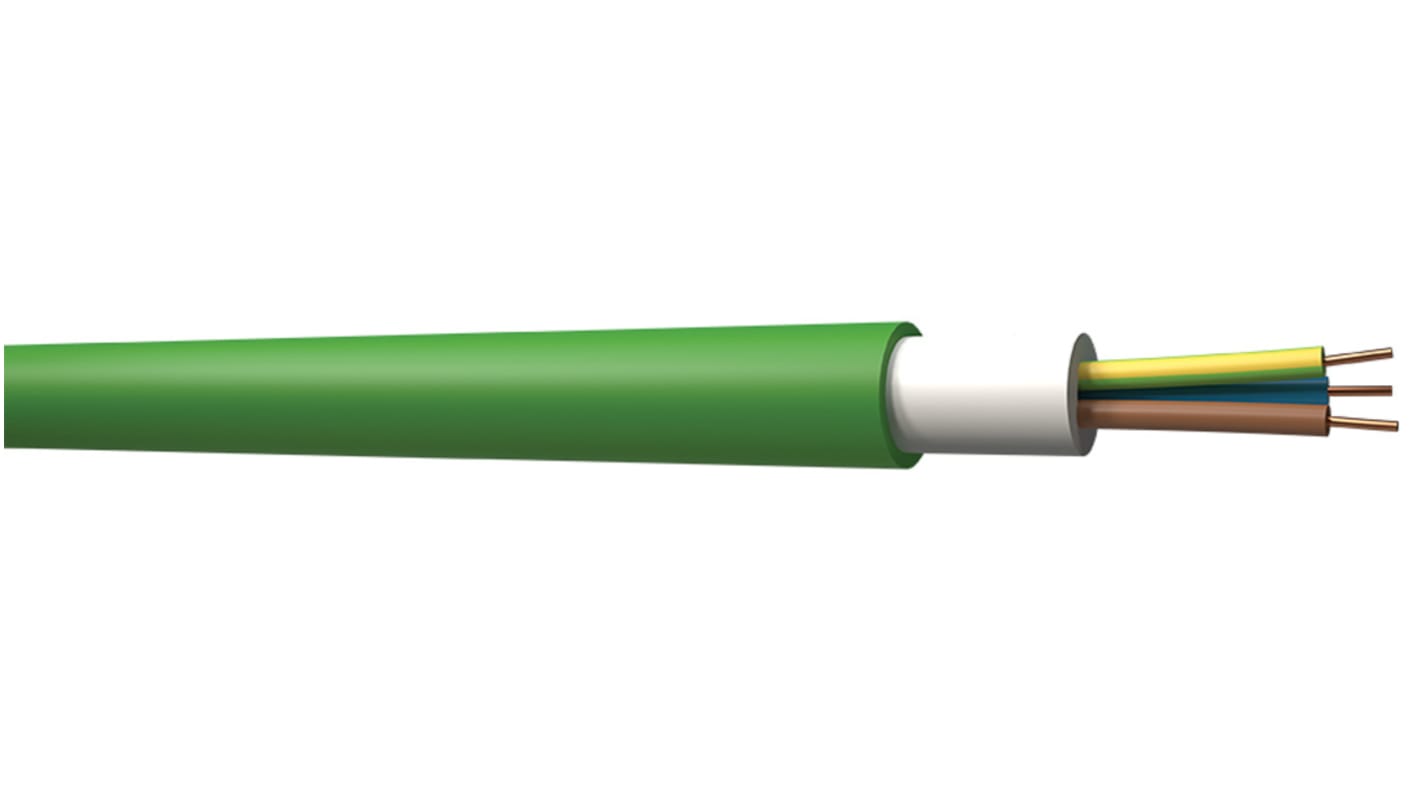

RS PRO FR-N1X1G1 1.5 mm² 4 Core Power Cable, Green Low Smoke Zero Halogen (LSZH), 100m

View all Power Cable

Subtotal (1 reel of 100 metres)*

£276.00

(exc. VAT)

£331.20

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 5 unit(s), ready to ship from another location
Reel(s)
Per Reel
Per Metre*
1 +£276.00£2.76

*price indicative

RS Stock No.:
201-0543
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

1.5 mm²

Number of Cores

4

Sheath Colour

Green

Length

100m

Armoured

No

Cable Type

FR-N1X1G1

Current Rating

10 A

CPR Certification

Cca

Sheath Material

Low Smoke Zero Halogen (LSZH)

Outer Diameter

11mm

Voltage Rating

0.6/1 kV

Conductor Strand Type

Solid

American Wire Gauge

15 AWG

Conductor Material

Bare Copper

Insulation Material

XLPE

Fire Behaviour

Flame Retardant, Halogen Free

Minimum Operating Temperature

-25°C

Cable Shape

Multi-Conductor

Standards Met

IEC 60332-1, NF C 32-070/C2

Maximum Operating Temperature

+60°C

Series

FR-N1X1G1

COO (Country of Origin):
IT

RS PRO Multicore Cable


Introducing the range of RS PRO multicore cables, ideal for use across a wide variety of high powered electrical equipment applications. The flexible cable has a multicore that can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high quality range of multicore cables, tripping hazards can be drastically reduced while improving the overall appearance of electrical equipment, especially in areas where there is little space, or the cable installation is visible to individuals.

Features and Benefits:


  • This RS PRO multicore cable has 4 1.5 mm² core strands which is ideal feeding high powered electrical equipment installations

  • It is a flexible cable with a durable LSZH protective sheath and XLPE wrapped stranded bare copper conductors

  • The cable offers good insulation due to the insulation material and installation is easy and efficient thanks to the coloured cores and layout of the cable

  • Operating temperature: -25 °C to +60 °C

  • Rated voltage: 600 / 1000 V

Applications:


Multicore cables are electrical cables that have more cores than standard power or coaxial cables and are available in various lengths and cores, dependent on the applications they are being used for. They are ideal for using when there is little space or for organising cable installations that require multiple cabling connections, especially within industrial or entertainment applications. Multicore cables are found in many different environments, for example:
  • Entertainment and audio industry

  • Machines and factory control equipment

  • Large control pads

  • DIN-Rail terminals

  • Conveyor belts

  • Data and networking

  • Security and safety

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note:


Please be aware, although these cables are electrical, they are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.
