Phoenix Contact, 3.3 m 4 Core Power Cable, Grey, Black Polyurethane 85 °C
- RS Stock No.:
- 629-589
- Mfr. Part No.:
- 1425405
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£30.85
(exc. VAT)
£37.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 92 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.85 |
*price indicative
- RS Stock No.:
- 629-589
- Mfr. Part No.:
- 1425405
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Grey, Black | |
| Cable Length | 3.3m | |
| Outside Diameter | 7.4mm | |
| Jacket Material | Polyurethane | |
| Voltage | 690V | |
| Minimum Operating Temperature | 50°C | |
| Cable CSA | 1.5mm² | |
| Standards/Approvals | UL 758/1581, DIN EN 50267 2 1, DIN EN 60332 2 2, UL 94 V-0, cUL, DIN EN 60811 404, VDE 0282 section 10, UL, REACH, RoHS, IEC 61076 2 111, cULus | |
| Fire Behaviour | Flame resistance according to DIN EN, UL 758/1581 FT2, DIN EN, Halogen Free | |
| Conductor Material | Bare Copper Wire | |
| Maximum Operating Temperature | 85°C | |
| Core Strands | 44 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Grey, Black | ||
Cable Length 3.3m | ||
Outside Diameter 7.4mm | ||
Jacket Material Polyurethane | ||
Voltage 690V | ||
Minimum Operating Temperature 50°C | ||
Cable CSA 1.5mm² | ||
Standards/Approvals UL 758/1581, DIN EN 50267 2 1, DIN EN 60332 2 2, UL 94 V-0, cUL, DIN EN 60811 404, VDE 0282 section 10, UL, REACH, RoHS, IEC 61076 2 111, cULus | ||
Fire Behaviour Flame resistance according to DIN EN, UL 758/1581 FT2, DIN EN, Halogen Free | ||
Conductor Material Bare Copper Wire | ||
Maximum Operating Temperature 85°C | ||
Core Strands 44 | ||
- COO (Country of Origin):
- PL

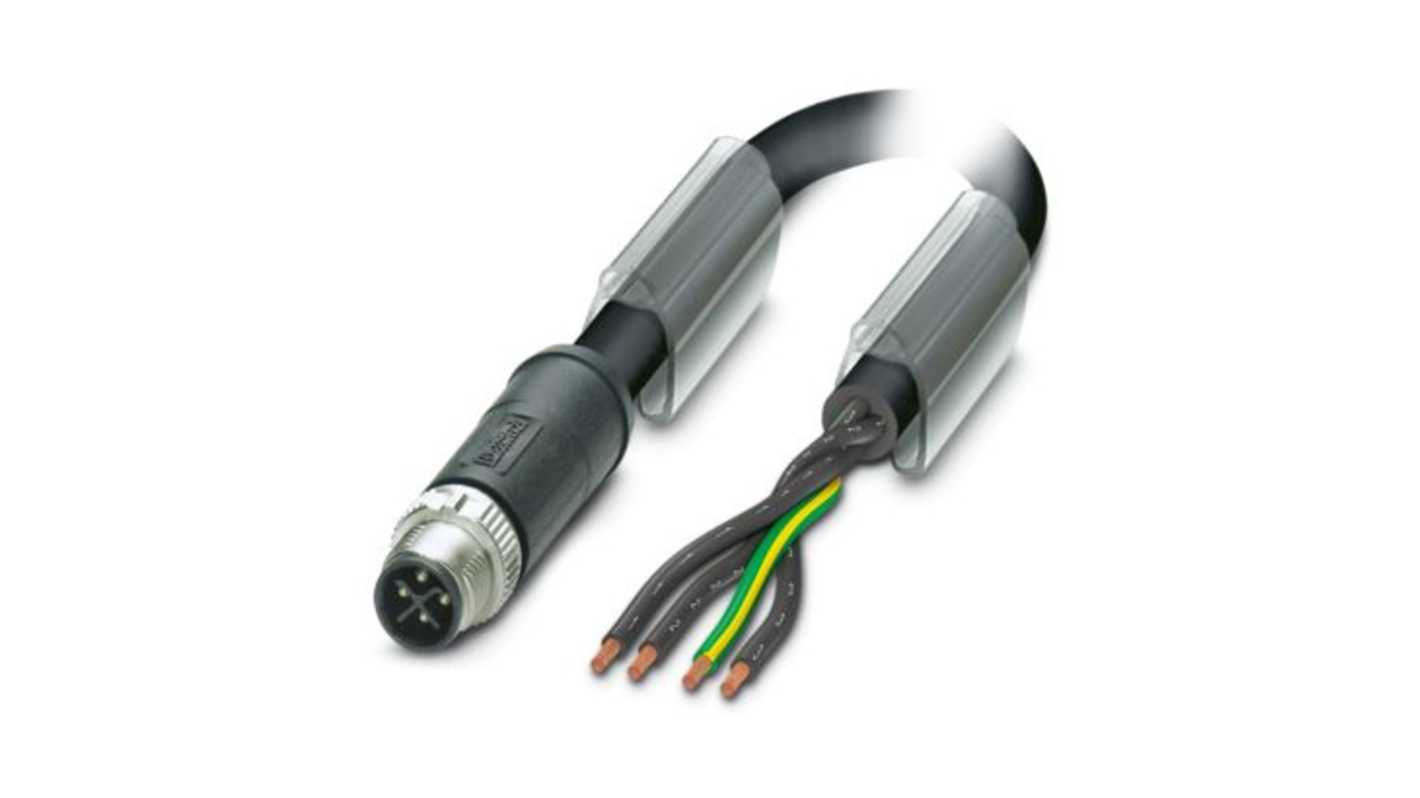

The Phoenix Contact Power cable is designed to provide reliable connections for applications requiring Advanced electrical performance. Constructed with a robust halogen-free PUR material in a sleek black-grey finish, the cable facilitates seamless integration in various industrial environments. Engineered to withstand challenging conditions, it is well-suited for AC currents up to 12 A and features a M12 plug connection, ensuring safe and efficient power supply. Its Compact design allows for easy installation and manipulation, making it Ideal for configurations with limited space.
Excellent flexibility allows for easy routing in tight spaces
Robust design ensures longevity and reduced maintenance costs
Rated for significant electrical performance up to specified limits
Meets stringent environmental compliance standards
