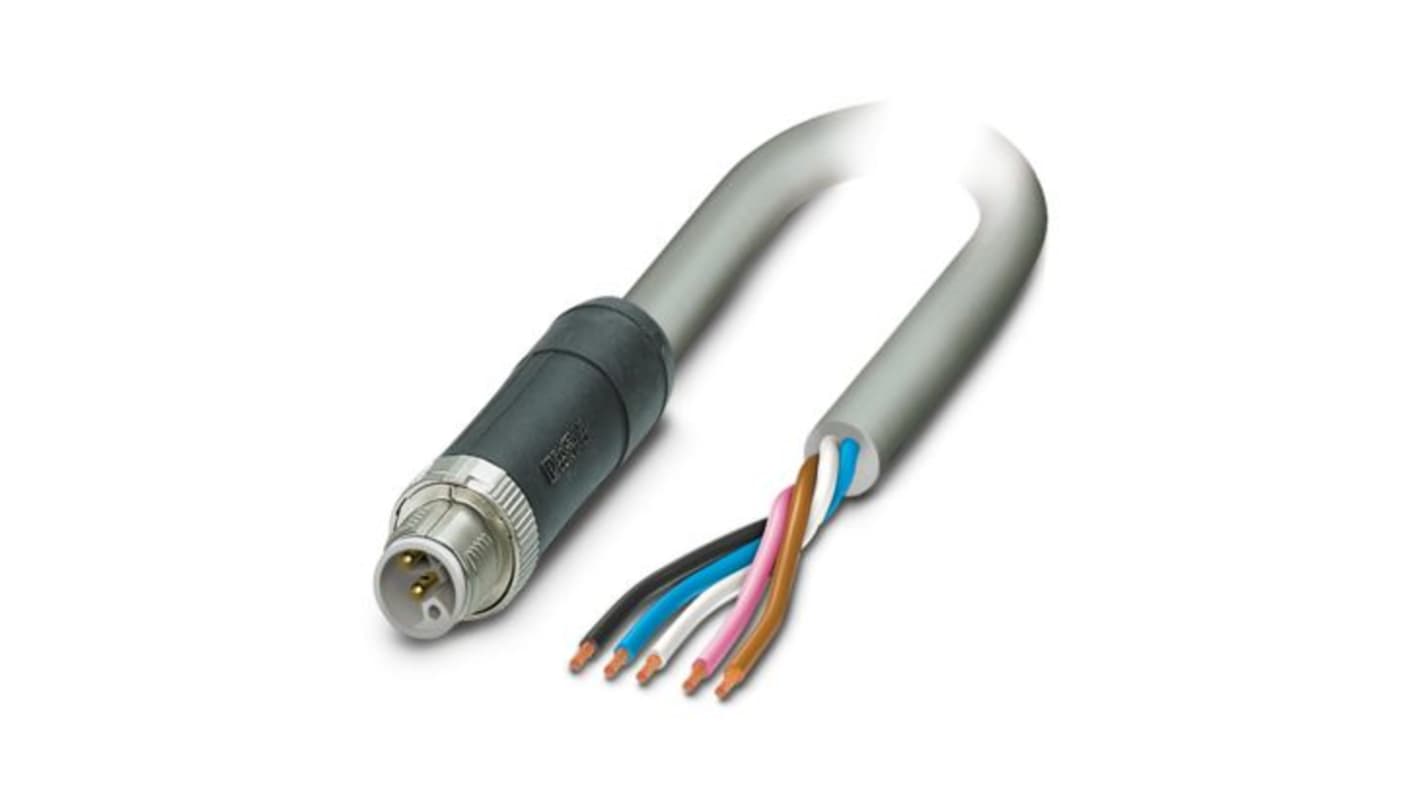

Phoenix Contact 5-290 FE, SAC-5P-M12MSL/ 1 Unshielded 5 x 1.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 1.5m
- RS Stock No.:
- 519-003
- Mfr. Part No.:
- 1424593
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 519-003
- Mfr. Part No.:
- 1424593
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Cross Sectional Area | 5 x 1.5 mm² | |
Number of Cores | 5 | |
Sheath Colour | Grey | |
Length | 1.5m | |
Armoured | Yes | |
Cable Type | Unshielded | |
Sheath Material | Polyurethane PUR | |
Maximum Operating Temperature | +80°C | |
Series | 5-290 FE, SAC-5P-M12MSL/ 1 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Cross Sectional Area 5 x 1.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Grey | ||
Length 1.5m | ||
Armoured Yes | ||
Cable Type Unshielded | ||
Sheath Material Polyurethane PUR | ||
Maximum Operating Temperature +80°C | ||
Series 5-290 FE, SAC-5P-M12MSL/ 1 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Power Cable is designed for reliable performance in demanding industrial environments. The durable construction utilises halogen-free materials, ensuring both safety and environmental compliance. With a sleek grey exterior that meets RAL 7001 standards, it is ideal for various applications, delivering power up to 12 A at a nominal voltage of 63 V DC. The M12 connectors, specifically coded for power applications, provide a secure and straightforward plug-and-play solution, making installations efficient and hassle-free. Its robust mechanical properties ensure longevity, capable of withstanding extreme conditions ranging from -50 °C to 80 °C. Whether used in automation, control cabinets, or machine building, this cable stands out for its functionality and quality, meeting the rigorous standards expected in the field.
Constructed from halogen free materials for enhanced safety
M12 connector provides a simple yet secure connection
Designed to operate effectively across a wide temperature range
Suitable for various applications including automation and control systems
Offers resistance to oil and hydrolysis ensuring durability
Conforms to international standards guaranteeing quality and compliance
M12 connector provides a simple yet secure connection
Designed to operate effectively across a wide temperature range
Suitable for various applications including automation and control systems
Offers resistance to oil and hydrolysis ensuring durability
Conforms to international standards guaranteeing quality and compliance
