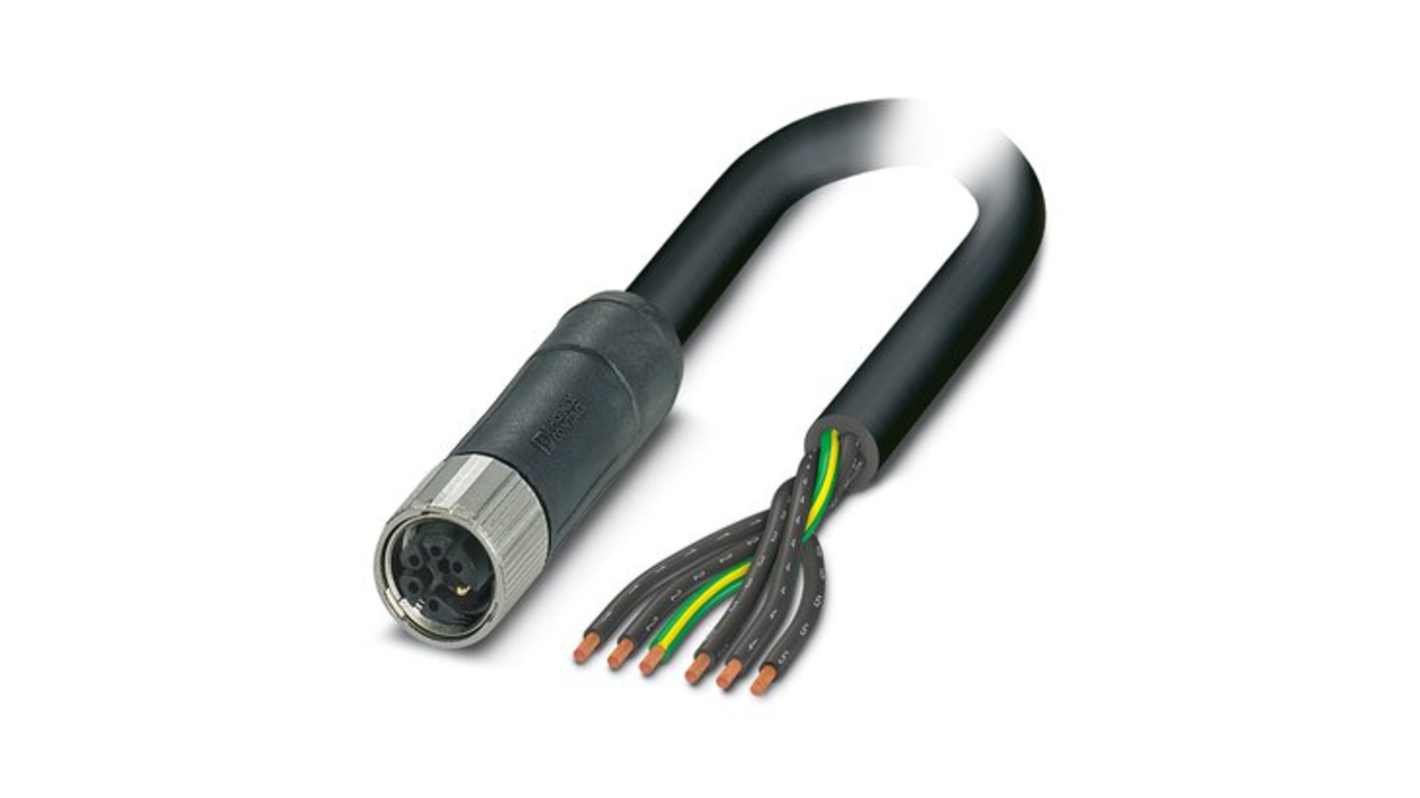

Phoenix Contact SAC, 5 m 6 Core Power Cable, Grey, Black Polyvinyl Chloride 80 °C
- RS Stock No.:
- 269-061
- Mfr. Part No.:
- 1414922
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£48.77
(exc. VAT)
£58.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.77 |
*price indicative
- RS Stock No.:
- 269-061
- Mfr. Part No.:
- 1414922
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 6 | |
| Jacket Colour | Grey, Black | |
| Cable Length | 5m | |
| Outside Diameter | 9.75 mm | |
| Jacket Material | Polyvinyl Chloride | |
| Voltage | 690 V | |
| Minimum Operating Temperature | 80°C | |
| Standards/Approvals | EAC, DIN EN 60811-404, UL Listed, UL 758/1581 FT1, UL 758/1581, RoHS, IEC 61076-2-111, DIN EN 60332-1-2, cUL Listed | |
| Cable CSA | 6 x 1.5 mm² | |
| Maximum Operating Temperature | 80°C | |
| Series | SAC | |
| Conductor Material | Bare Copper Wire | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 6 | ||
Jacket Colour Grey, Black | ||
Cable Length 5m | ||
Outside Diameter 9.75 mm | ||
Jacket Material Polyvinyl Chloride | ||
Voltage 690 V | ||
Minimum Operating Temperature 80°C | ||
Standards/Approvals EAC, DIN EN 60811-404, UL Listed, UL 758/1581 FT1, UL 758/1581, RoHS, IEC 61076-2-111, DIN EN 60332-1-2, cUL Listed | ||
Cable CSA 6 x 1.5 mm² | ||
Maximum Operating Temperature 80°C | ||
Series SAC | ||
Conductor Material Bare Copper Wire | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Power cable exemplifies precision engineering tailored for effective power supply solutions. Designed with a robust six-position configuration and M-coding, it ensures seamless compatibility and minimises the risk of mismatching. The cable boasts a durable PVC sheath in a striking black-grey finish, optimally shielding the internal conductors against environmental challenges.
Offers high insulation resistance ensuring outstanding performance and longevity
Compliant with stringent international standards for guaranteed reliability
Versatile cable length allows for flexible installation options in diverse applications
