Phoenix Contact 14250 Shielded 2.5 mm² 4 Core Power Cable, Black, Grey Polyurethane PUR, 10m
- RS Stock No.:
- 268-245
- Mfr. Part No.:
- 1425072
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 268-245
- Mfr. Part No.:
- 1425072
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Cross Sectional Area | 2.5 mm² | |
Number of Cores | 4 | |
Sheath Colour | Black, Grey | |
Length | 10m | |
Armoured | No | |
Cable Type | Shielded | |
Sheath Material | Polyurethane PUR | |
Maximum Operating Temperature | +80°C | |
Series | 14250 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Cross Sectional Area 2.5 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black, Grey | ||
Length 10m | ||
Armoured No | ||
Cable Type Shielded | ||
Sheath Material Polyurethane PUR | ||
Maximum Operating Temperature +80°C | ||
Series 14250 | ||
- COO (Country of Origin):
- PL

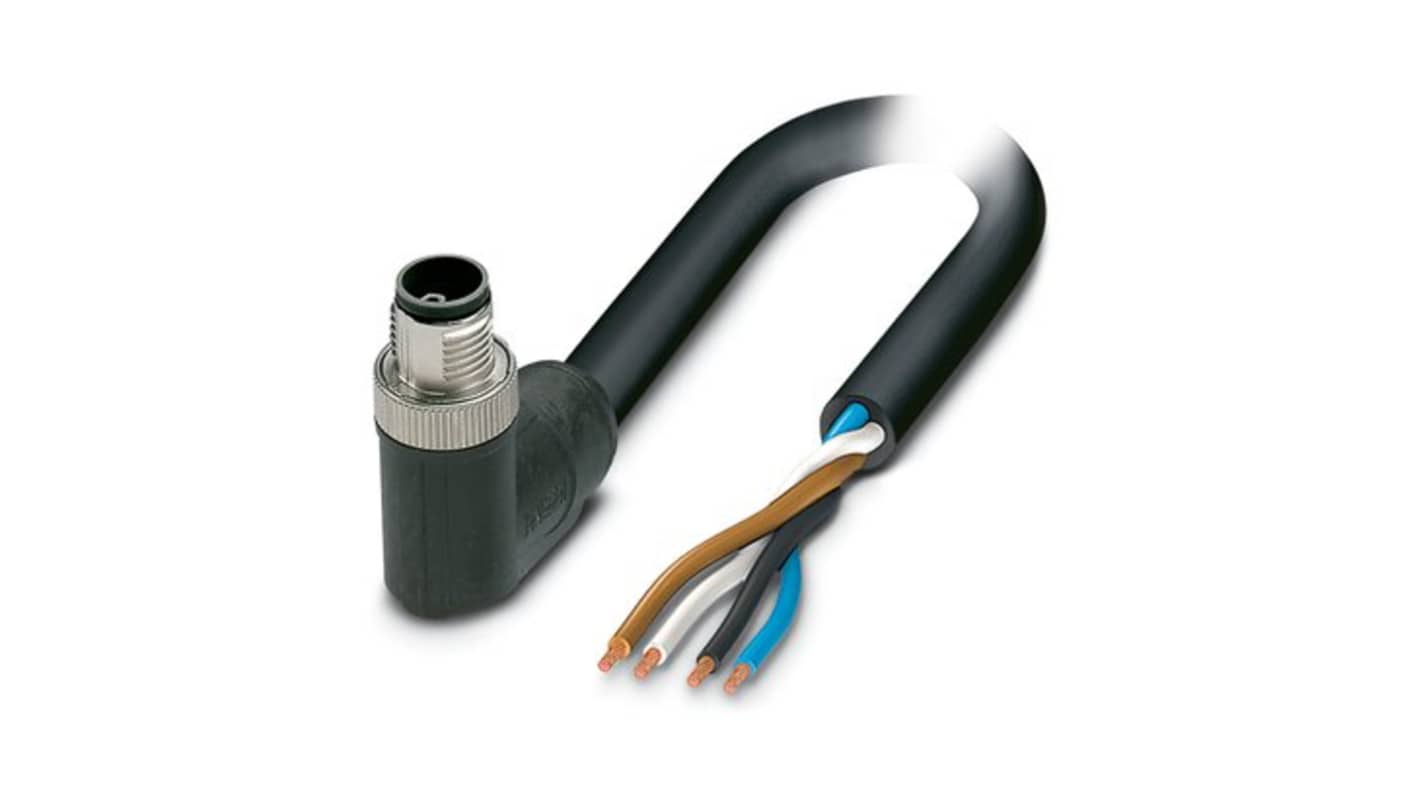

The Phoenix Contact Power Cable is engineered for robust electrical connections in demanding environments. Designed with a 4-position, angled M12 plug, it ensures reliable power supply with optimal safety. The robust PUR construction not only guarantees durability but is also halogen-free, making it an environmentally conscious choice. With a cable length of 10 metres, it offers ample reach for various applications while supporting direct current up to 16 A and 63 V. The L coding protects against mismatching, ensuring that your connections are consistently error-free.
Mechanical durability supports over 1 million bending cycles
Resistance to oil and hydrolysis ensures longevity in harsh conditions
IP65 and IP67 ratings offer protection against dust and water ingress
Made with high quality materials for superior performance
Resistance to oil and hydrolysis ensures longevity in harsh conditions
IP65 and IP67 ratings offer protection against dust and water ingress
Made with high quality materials for superior performance
