Phoenix Contact 14250 PVC 1.5 mm² 4 Core Power Cable, Black, Grey Polyvinyl Chloride PVC, 10m
- RS Stock No.:
- 268-238
- Mfr. Part No.:
- 1425052
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 268-238
- Mfr. Part No.:
- 1425052
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Cross Sectional Area | 1.5 mm² | |
Number of Cores | 4 | |
Sheath Colour | Black, Grey | |
Length | 10m | |
Armoured | No | |
Cable Type | PVC | |
Sheath Material | Polyvinyl Chloride PVC | |
Maximum Operating Temperature | +80°C | |
Series | 14250 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black, Grey | ||
Length 10m | ||
Armoured No | ||
Cable Type PVC | ||
Sheath Material Polyvinyl Chloride PVC | ||
Maximum Operating Temperature +80°C | ||
Series 14250 | ||
- COO (Country of Origin):
- PL

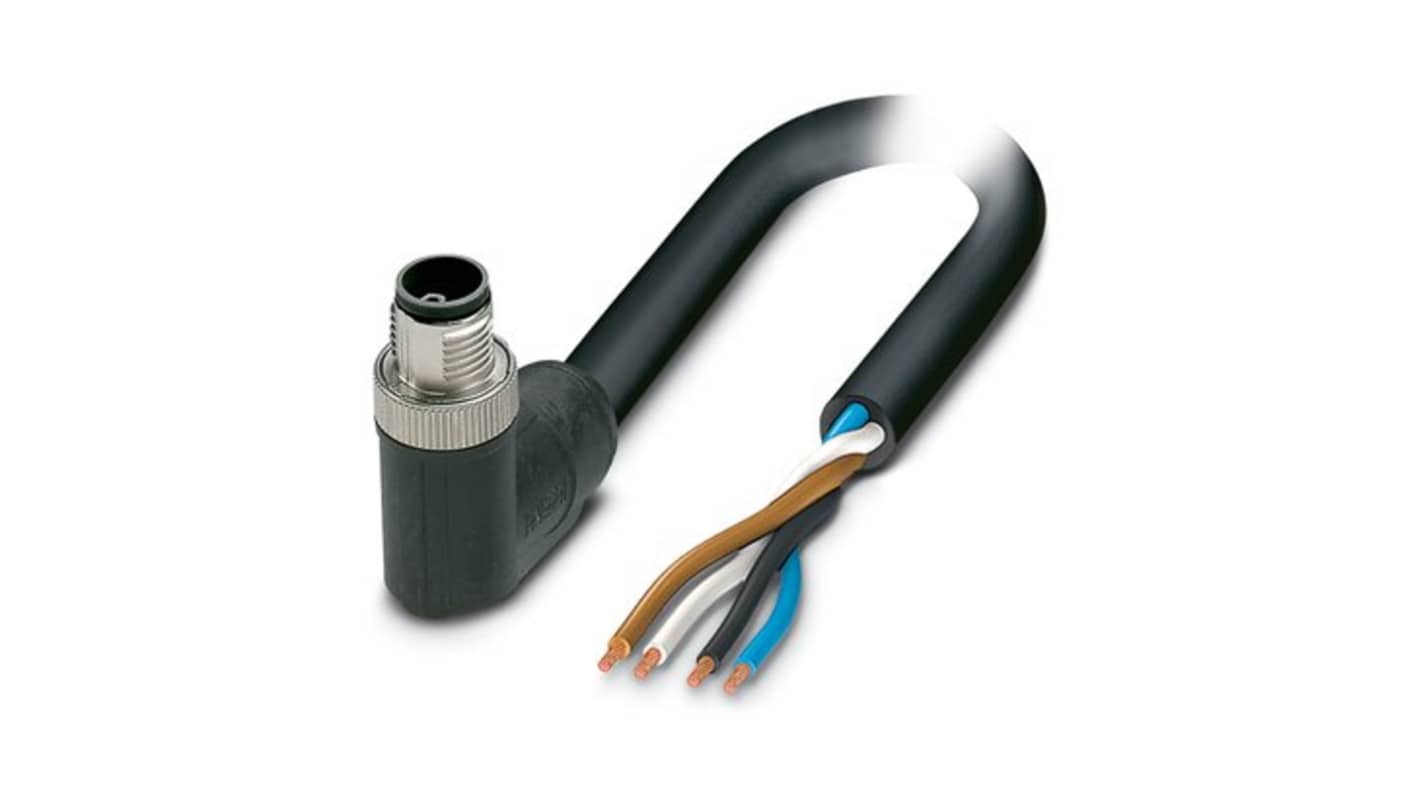

The Phoenix Contact Power Cable is engineered for optimal performance in demanding applications, ensuring a reliable connection for power supply needs. Designed with a four-position configuration, it incorporates a sturdy angled M12 plug with L-coding, providing enhanced protection against mismatching. The cable, measuring 10 metres in length, is constructed from robust PVC material, featuring a black-grey RAL 7021 outer sheath. With an operational temperature range from -40 °C to +80 °C, this durable solution is perfect for a variety of environments. Designed for use with direct current systems up to 12 A and 63 V, it offers both safety and efficiency without compromising quality.
Electrical testing certifies complete reliability and performance under specified conditions
Robust construction is designed for high mechanical resilience over extended use
Appropriately shielded and insulated to minimise any potential data loss during operation
Manufactured to comply with multiple international safety and environmental standards
Robust construction is designed for high mechanical resilience over extended use
Appropriately shielded and insulated to minimise any potential data loss during operation
Manufactured to comply with multiple international safety and environmental standards
