Phoenix Contact 14250, 1.5 m 4 Core Power Cable, Black, Grey Polyurethane 80 °C
- RS Stock No.:
- 268-233
- Mfr. Part No.:
- 1425043
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£45.24
(exc. VAT)
£54.29
(inc. VAT)
Add 2 units to get free delivery
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.24 |
*price indicative
- RS Stock No.:
- 268-233
- Mfr. Part No.:
- 1425043
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Black, Grey | |
| Cable Length | 1.5m | |
| Jacket Material | Polyurethane | |
| Outside Diameter | 6.75 mm | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 80°C | |
| Cable CSA | 4 x 1.5 mm² | |
| Standards/Approvals | IEC 61076-2-111, UL Listed, UL 758/1581 FT2, cUL Listed, DIN EN 50267-2-1, DIN EN 60332-2-2, DIN VDE 0472, RoHS, DIN EN 60811-404, EAC, UL 758/1581 | |
| Conductor Material | Bare Copper Wire | |
| Series | 14250 | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Black, Grey | ||
Cable Length 1.5m | ||
Jacket Material Polyurethane | ||
Outside Diameter 6.75 mm | ||
Voltage 63 V | ||
Minimum Operating Temperature 80°C | ||
Cable CSA 4 x 1.5 mm² | ||
Standards/Approvals IEC 61076-2-111, UL Listed, UL 758/1581 FT2, cUL Listed, DIN EN 50267-2-1, DIN EN 60332-2-2, DIN VDE 0472, RoHS, DIN EN 60811-404, EAC, UL 758/1581 | ||
Conductor Material Bare Copper Wire | ||
Series 14250 | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- PL

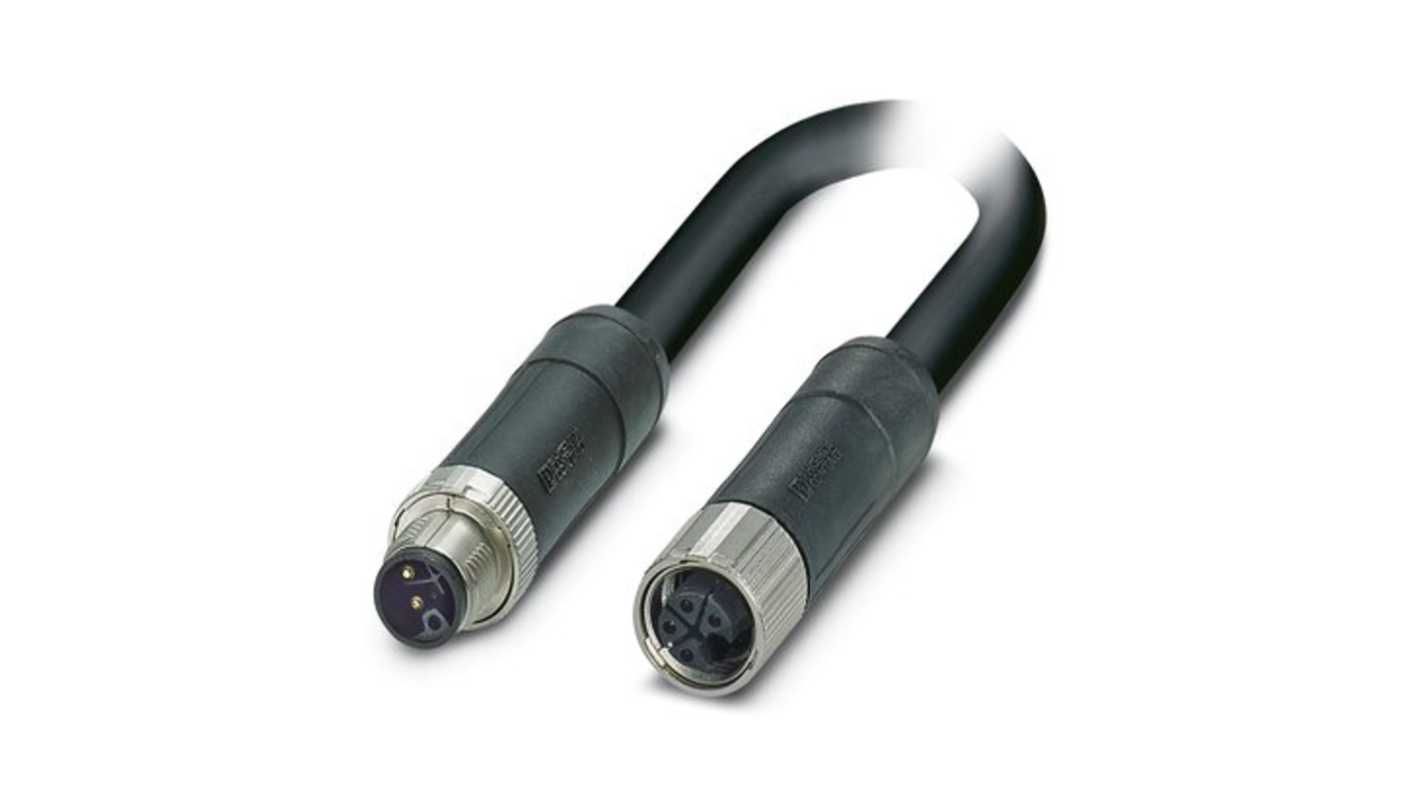

The Phoenix Contact Power Cable is expertly designed to facilitate reliable power supply solutions in demanding environments. With a robust construction of halogen-free PUR, this cable ensures longevity and safety, making it an ideal choice for various applications. The precision-engineered connectors, including straight M12 plugs and sockets, feature L-coding to prevent mismatching, enhancing operational efficiency. This cable is tailored for versatility, supporting direct current flows of up to 12 A at 63 V. Its compact design, coupled with an optimal cable length of 1.5 m, provides flexibility for installation in tight spaces without compromising on performance.
Withstands extreme temperatures making it suitable for various operational environments
Product's weight is manageable facilitating easier handling on site
Provides high resistance against abrasion and oil ensuring durability
Connectors are tested for a high number of insertion/withdrawal cycles to ensure longevity
