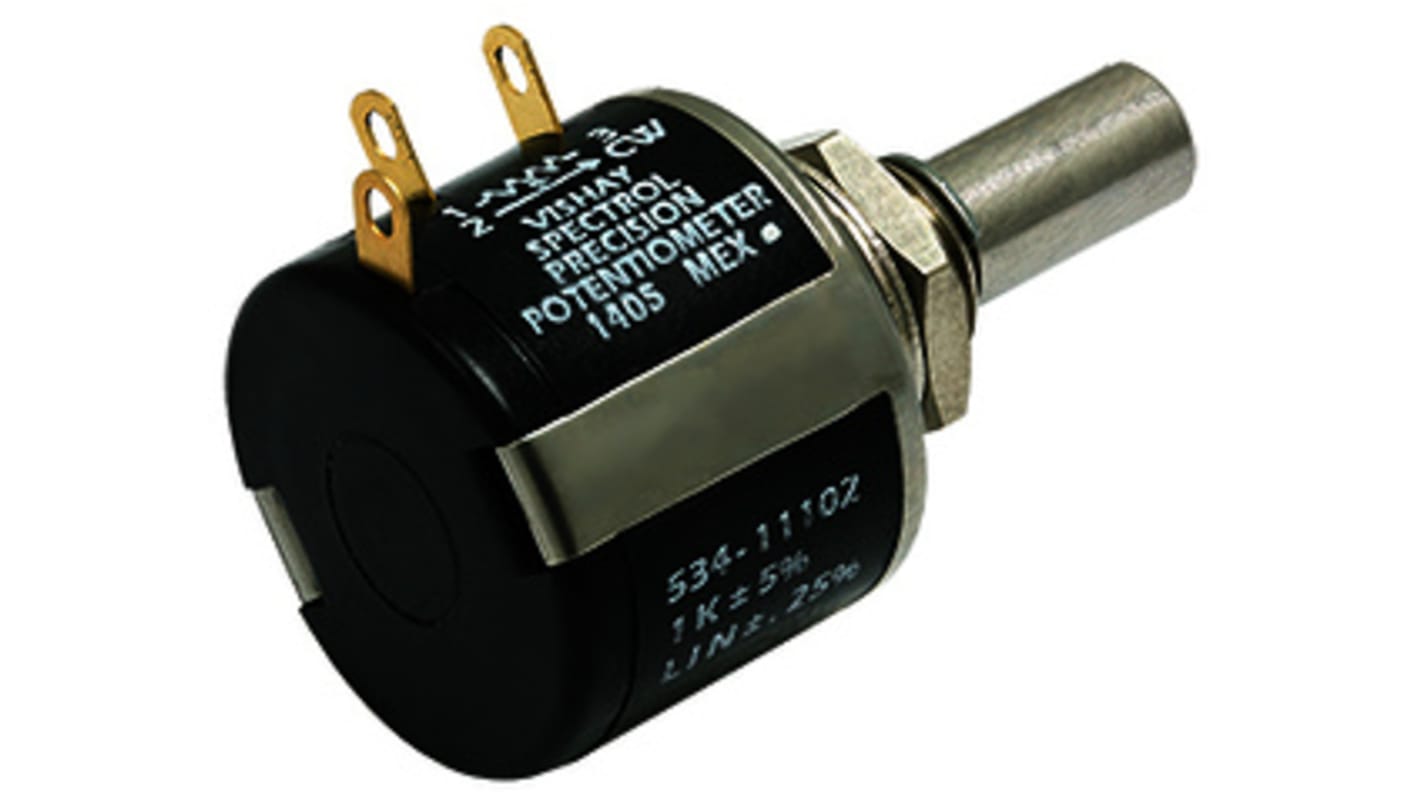

Vishay 1kΩ Rotary Potentiometer 3-Turns 1-Gang Bushing Mount, 533-1-1-102
- RS Stock No.:
- 850-9779
- Mfr. Part No.:
- 533-1-1-102
- Brand:
- Vishay
2 In stock - FREE next working day delivery available
Price Each
£22.40
(exc. VAT)
£26.88
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £22.40 |
| 25 - 99 | £20.76 |
| 100 - 249 | £19.39 |
| 250 + | £17.80 |
- RS Stock No.:
- 850-9779
- Mfr. Part No.:
- 533-1-1-102
- Brand:
- Vishay
Legislation and Compliance
Product Details
Vishay 533 Series Wirewound Potentiometers - 3 Turns
• Bushing and servo mount designs available
• Linearity ± 0.25 %, down to 0.05 % on request
• Special resistance tolerances to 1 %
• Rear shaft extensions and support bearing
• Metric shaft available
• Dual gang configuration and concentric shafts
• High torque, center tap, slipping clutch on request
• Special markings and front shaft extensions
• Material categorization: for definitions of compliance
• Linearity ± 0.25 %, down to 0.05 % on request
• Special resistance tolerances to 1 %
• Rear shaft extensions and support bearing
• Metric shaft available
• Dual gang configuration and concentric shafts
• High torque, center tap, slipping clutch on request
• Special markings and front shaft extensions
• Material categorization: for definitions of compliance
Supplied with
Metal lockwasher and nut.
Precision - Multi-Turn and Servo
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 1kΩ |
| Number of Gangs | 1 |
| Number of Turns | 3 |
| Power Rating | 1W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Bushing Mount |
| Termination Style | Turret |
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35 mm |
| Actuator Type | Slotted Shaft |
| Series | 533 |
| Tolerance | ±5% |
