RS PRO NP32HS 5 kΩ Rotary Conductive Plastic Potentiometer 1-Turns 1-Gang Panel Mount
- RS Stock No.:
- 842-7169P
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal 10 units (supplied in a bag)*
£131.00
(exc. VAT)
£157.20
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 18 unit(s) shipping from 30 June 2026
- Plus 22 unit(s) shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 24 | £13.10 |
| 25 - 49 | £12.05 |
| 50 - 99 | £11.22 |
| 100 + | £10.11 |
*price indicative
- RS Stock No.:
- 842-7169P
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Potentiometer Type | Rotary | |
| Product Type | Conductive Plastic Potentiometer | |
| Maximum Resistance | 5kΩ | |
| Number of Gangs | 1 | |
| Shaft Diameter | 8mm | |
| Packaging | Bulk | |
| Number of Turns | 1 | |
| Power Rating | 2W | |
| Electrical Taper | Linear | |
| Element Material | Conductive Plastic | |
| Mount Type | Panel Mount | |
| Termination Style | Solder | |
| Pin Count | 3 | |
| Adjustment Type | Side | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 105°C | |
| Height | 31.5mm | |
| Depth | 11mm | |
| Length | 46.5mm | |
| Standards/Approvals | RoHS | |
| Series | NP32HS | |
| Tolerance ± | 20% | |
| Actuator Type | Flatted Shaft | |
| Mounting Hole Diameter | 9.6 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Potentiometer Type Rotary | ||
Product Type Conductive Plastic Potentiometer | ||
Maximum Resistance 5kΩ | ||
Number of Gangs 1 | ||
Shaft Diameter 8mm | ||
Packaging Bulk | ||
Number of Turns 1 | ||
Power Rating 2W | ||
Electrical Taper Linear | ||
Element Material Conductive Plastic | ||
Mount Type Panel Mount | ||
Termination Style Solder | ||
Pin Count 3 | ||
Adjustment Type Side | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 105°C | ||
Height 31.5mm | ||
Depth 11mm | ||
Length 46.5mm | ||
Standards/Approvals RoHS | ||
Series NP32HS | ||
Tolerance ± 20% | ||
Actuator Type Flatted Shaft | ||
Mounting Hole Diameter 9.6 mm | ||

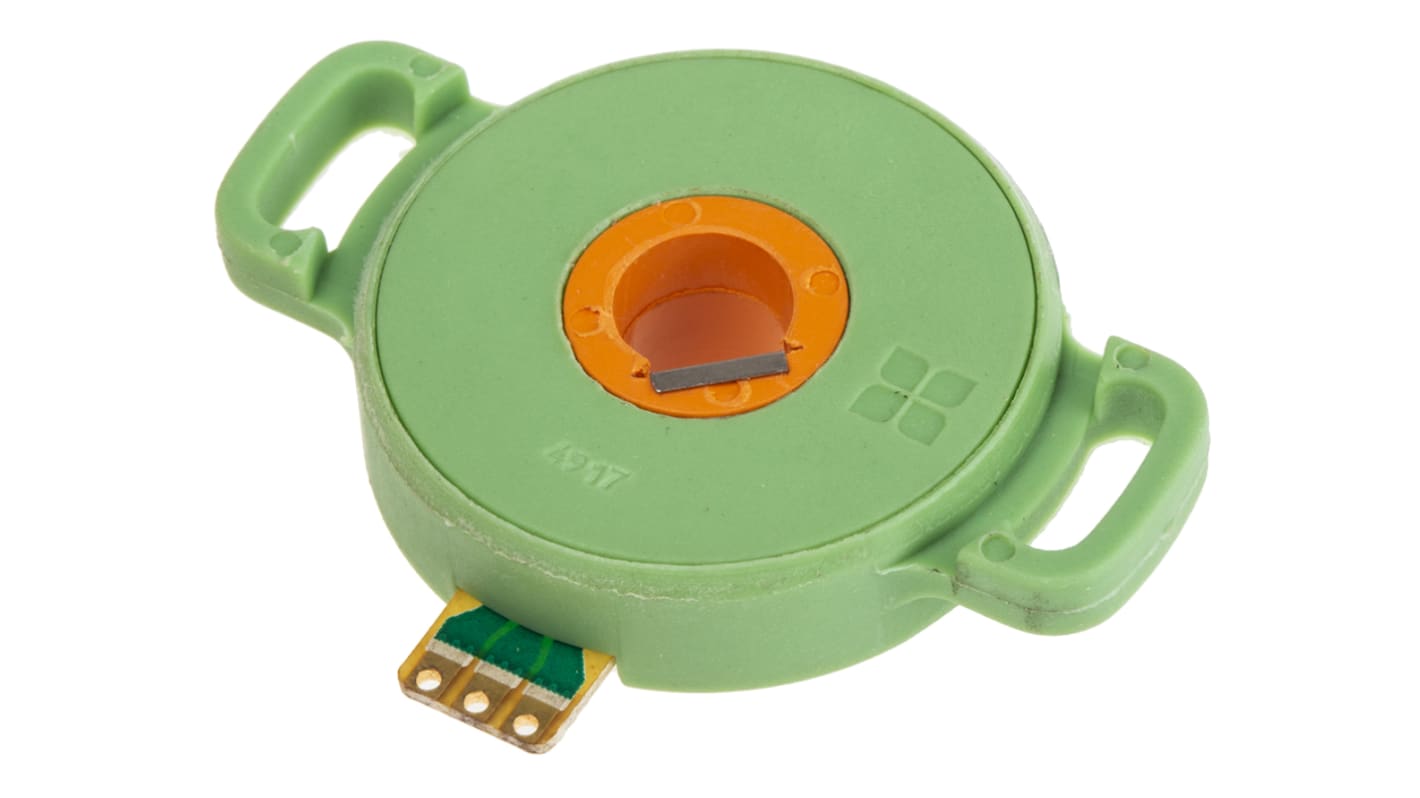

RS NP Conductive Plastic Hollow Shaft Potentiometers
This series of RS hollow shaft potentiometers are constructed from a long life conductive plastic and feature a sturdy low profile body. No coupling is needed due to easy mounting directly onto the shaft. With a rotational life of 4,000,000 shaft revolutions, these hollow potentiometers also offer noise free output due to a precious metal wiper.
360° mechanical rotation angle
±20% standard resistance tolerance
D shaped shaft
