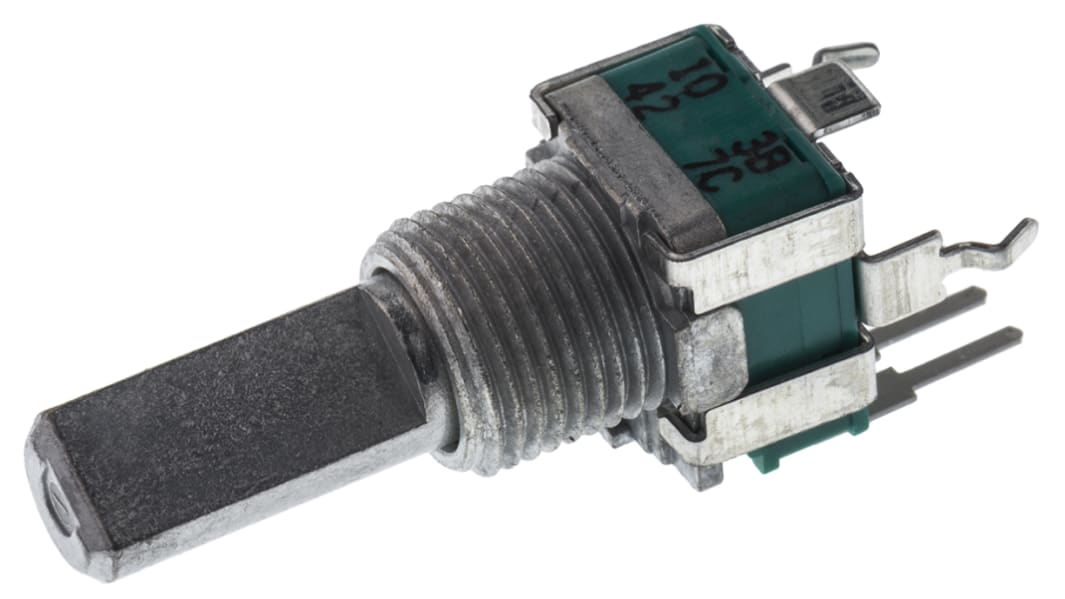

Alps Alpine 1 Gang Rotary Potentiometer with an 6 mm Dia. Shaft - 10kΩ, ±20%, 0.05W Power Rating, Linear, Through Hole

  • RS Stock No. 729-3423
  • Mfr. Part No. RK09L1140A2U
  • Brand Alps Alpine
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

9mm Snap-In Metal Shaft

Single-unit and Dual-unit types suit a variety of controls
Horizontal and Vertical types
Flat type shaft
Applications in personal audio and home appliances
Logarithmic Potentiometers

Approvals

M9 hexagonal nut and a flat washer.

Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 10 kΩ
Number of Gangs 1
Number of Turns 1
Power Rating 0.05W
Electrical Taper Linear
Mounting Type Through Hole
Termination Style Pin
Shaft Length 20mm
Shaft Diameter 6 mm
Tolerance ±20%
Actuator Type Flatted Shaft
Series RK09L
649 In stock - FREE next working day delivery available
650 available from Europe for delivery within 5 working day(s).
Price Each
£ 1.42
(exc. VAT)
£ 1.70
(inc. VAT)
Units
Per unit
1 - 9
£1.42
10 - 24
£1.30
25 - 49
£1.15
50 - 99
£1.01
100 +
£0.90
